Single VPC & NATGW

Private Outbound: Single VPC with NATGW

Summarized Steps (click to expand each for details)

1. Login to ExPriv-Instance2 and verify it cannot access the Internet.

   Detailed Steps…

   • 1.1: In the EC2 Console go to the Instances page (menu on the left) and select the ExPriv-Instance2 instance.

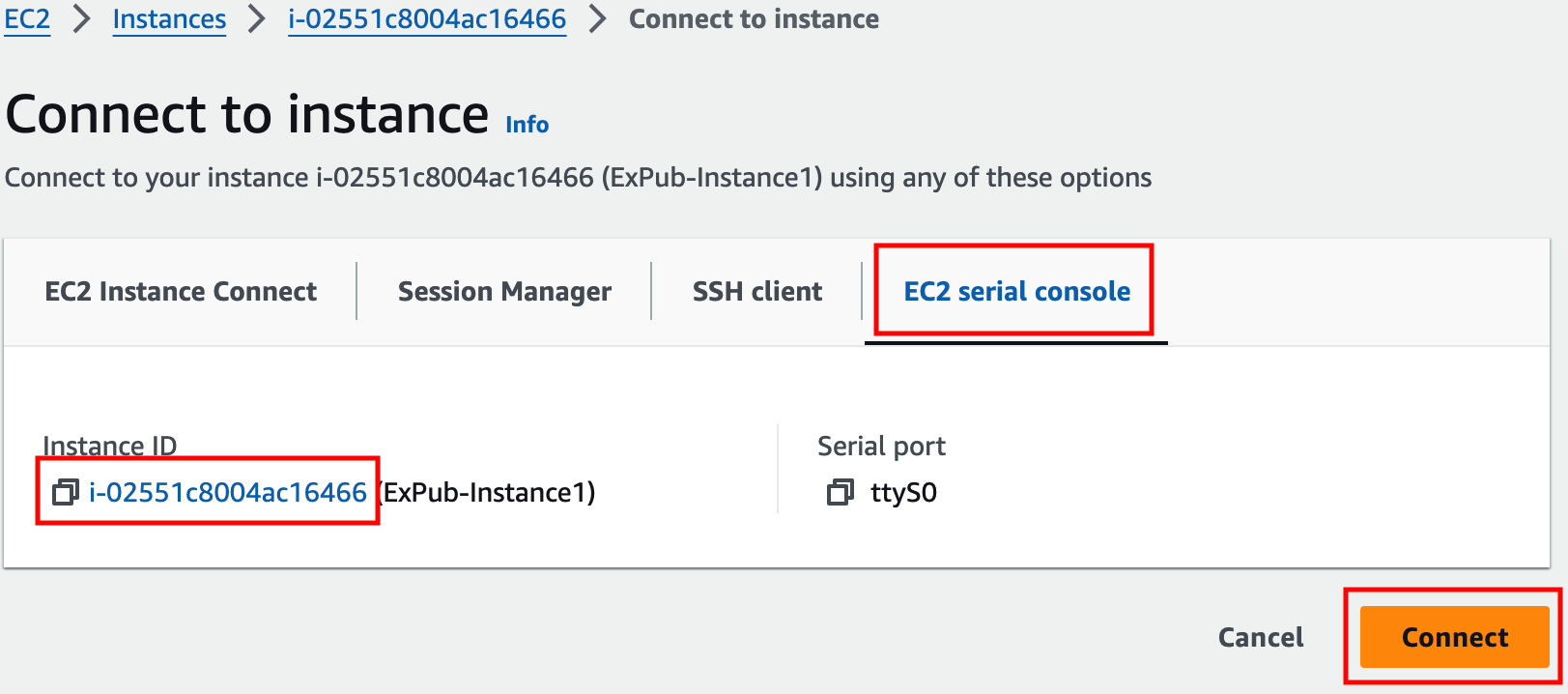

   • 1.2: click Connect > EC2 serial console.
     • Copy the instance ID as this will be the username and click connect.
   • 1.3: Login to the EC2 instance:
     • username: «copied Instance ID from above»
     • Password: FORTInet123!
   • 1.4: Run the command ping -c5 8.8.8.8 to connect to public resources.
     • This SHOULD NOT work at this point.

2. Identify the relevant route table and add the proper route so 0.0.0.0/0 traffic is sent to NATGW.

   Detailed Steps…

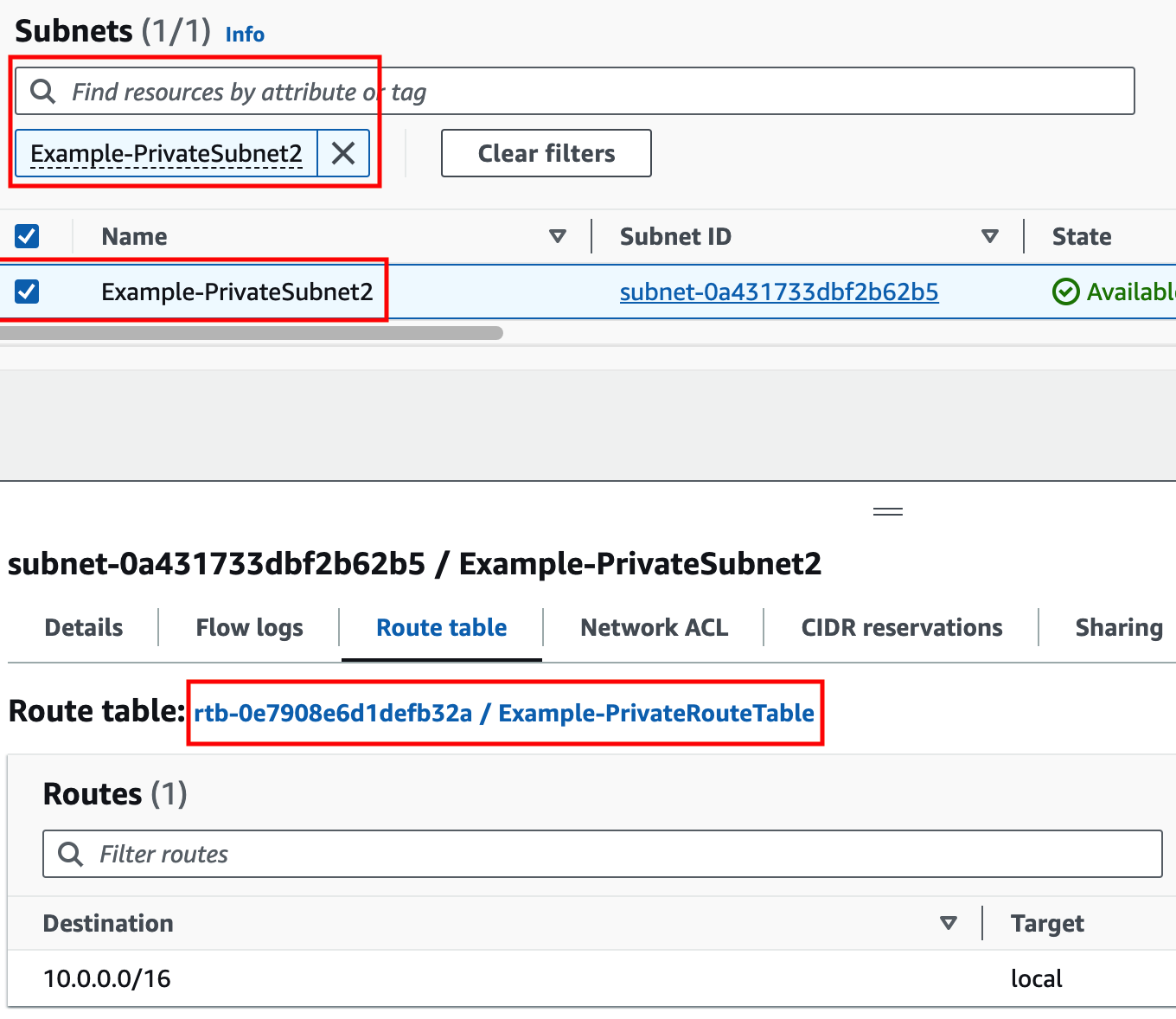

   • 2.1: Navigate to the VPC Console and go to the Subnets page (menu on the left).
   • 2.2: Find the Example-PrivateSubnet2 subnet.
   • 2.3: Select the Route table tab and click the actual route table name rtb-…. / Example-PrivateRouteTable.

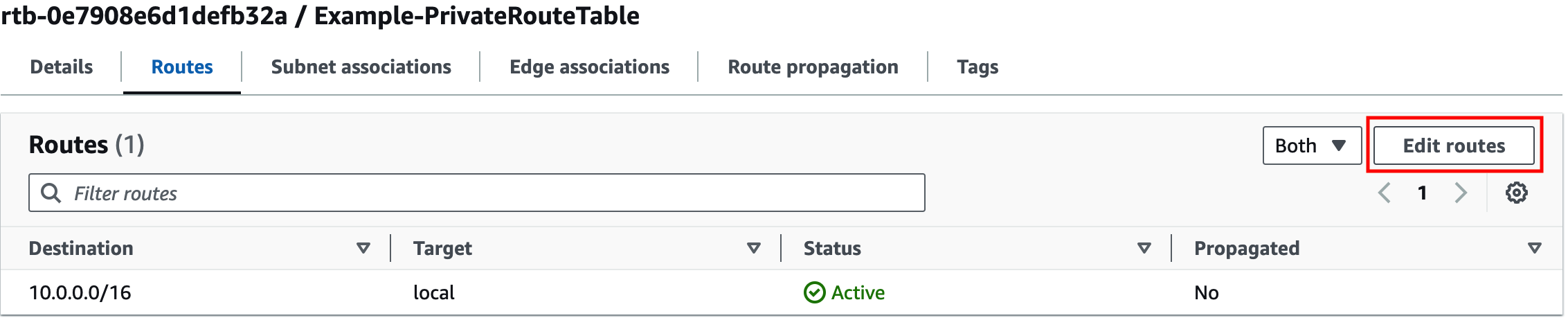

   • 2.4: Select the Example-PublicRouteTable then select the Routes tab and click Edit routes.

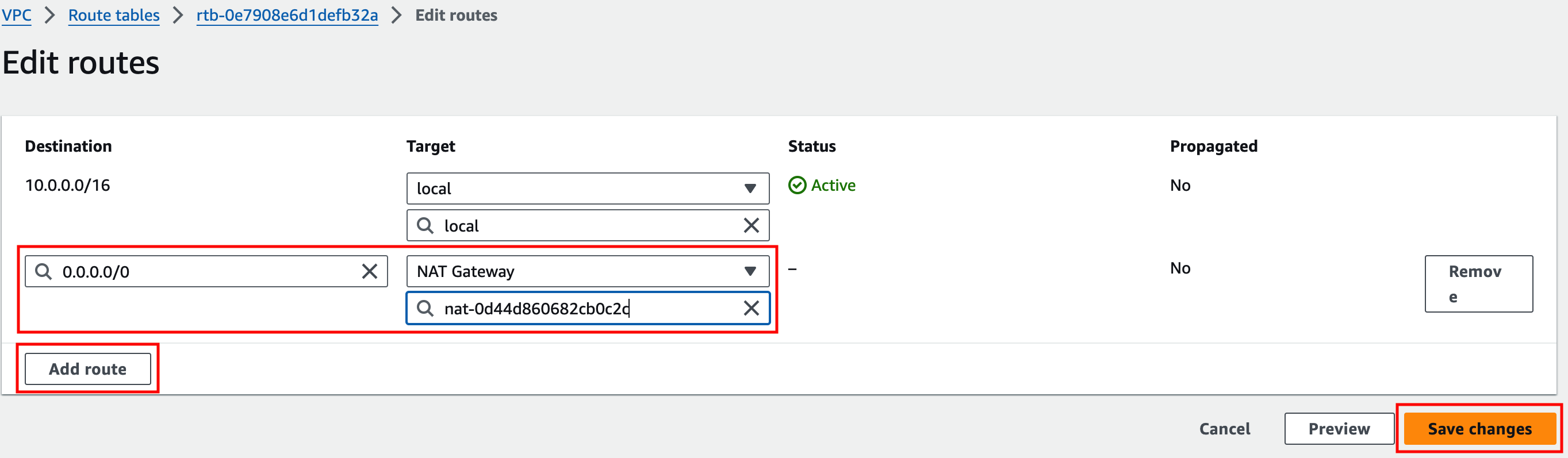

   • 2.5: Add a default route (ie 0.0.0.0/0) with a target of the NAT Gateway and click Save changes.

3. Test Internet connectivity from ExPriv-Instance2 again.

   Detailed Steps…

   • 3.1: Go back to the EC2 serial console and rerun the command ping -c5 8.8.8.8 to connect to public resources successfully.

4. Let’s dig deeper to understand how all of this works.

   Detailed Steps…

   • 4.1: Run the command ifconfig ens5 and take note of the instance IPv4 address.
   • 4.2: Run the command curl ipinfo.io.

   Info

   The instance has the private IP 10.0.20.10/24, but is and seen as coming from a public IP. This is because a NAT Gateway is providing outbound access to the internet for this private EC2 instance.

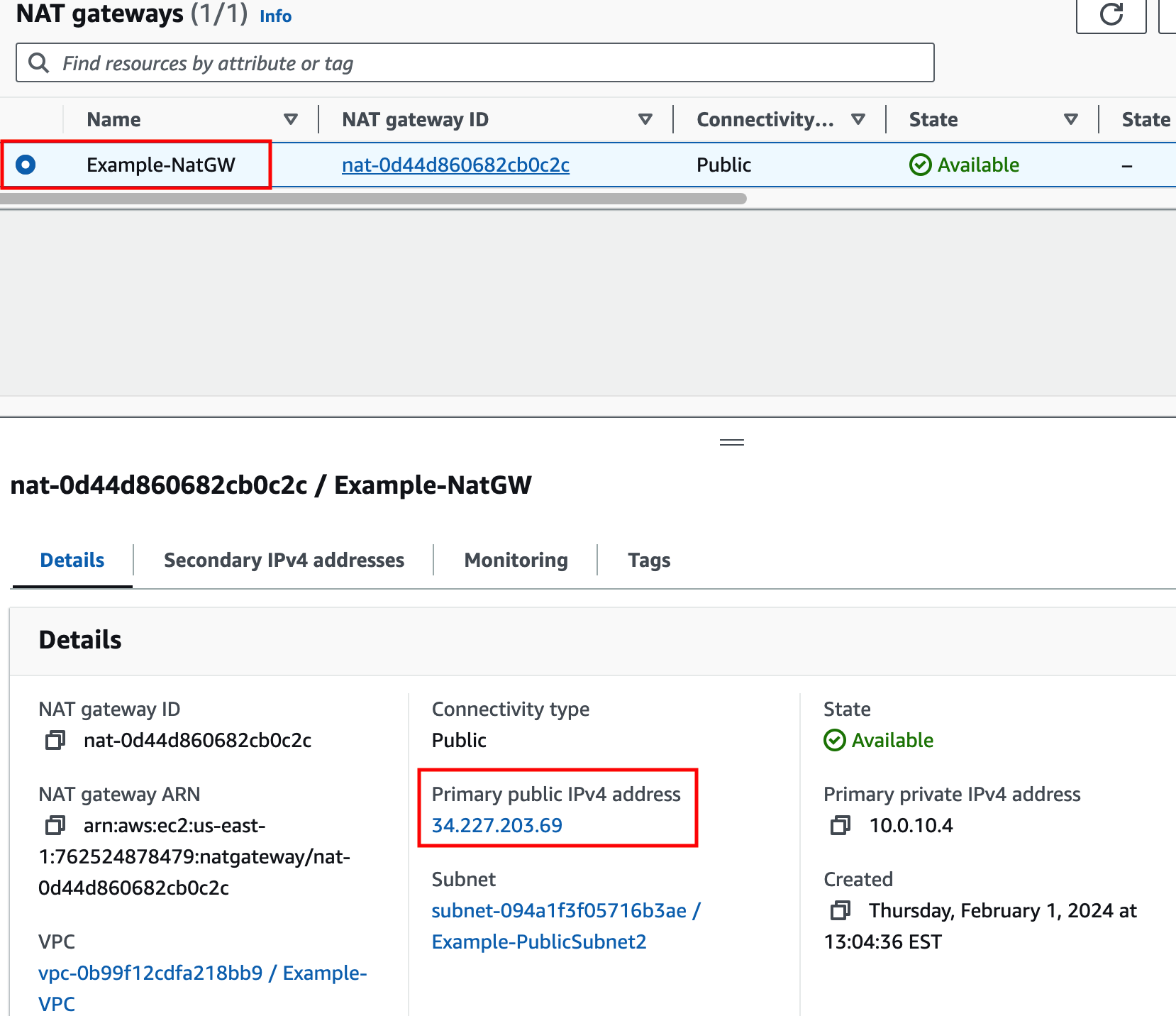

   • 4.3: In the VPC Console go to the NAT gateways page (menu on the left).

   • 4.4: Find the Example-NatGW NAT Gateway and notice the public IP from the curl output matches the primary public IPv4 address assigned to NATGW.

     • The NAT Gateway is deployed in the Example-PublicSubnet2 subnet which has a route to the Internet through the AWS Internet Gateway (IGW).

     • These AWS Networking components are allowing private outbound access to work successfully for this instance.

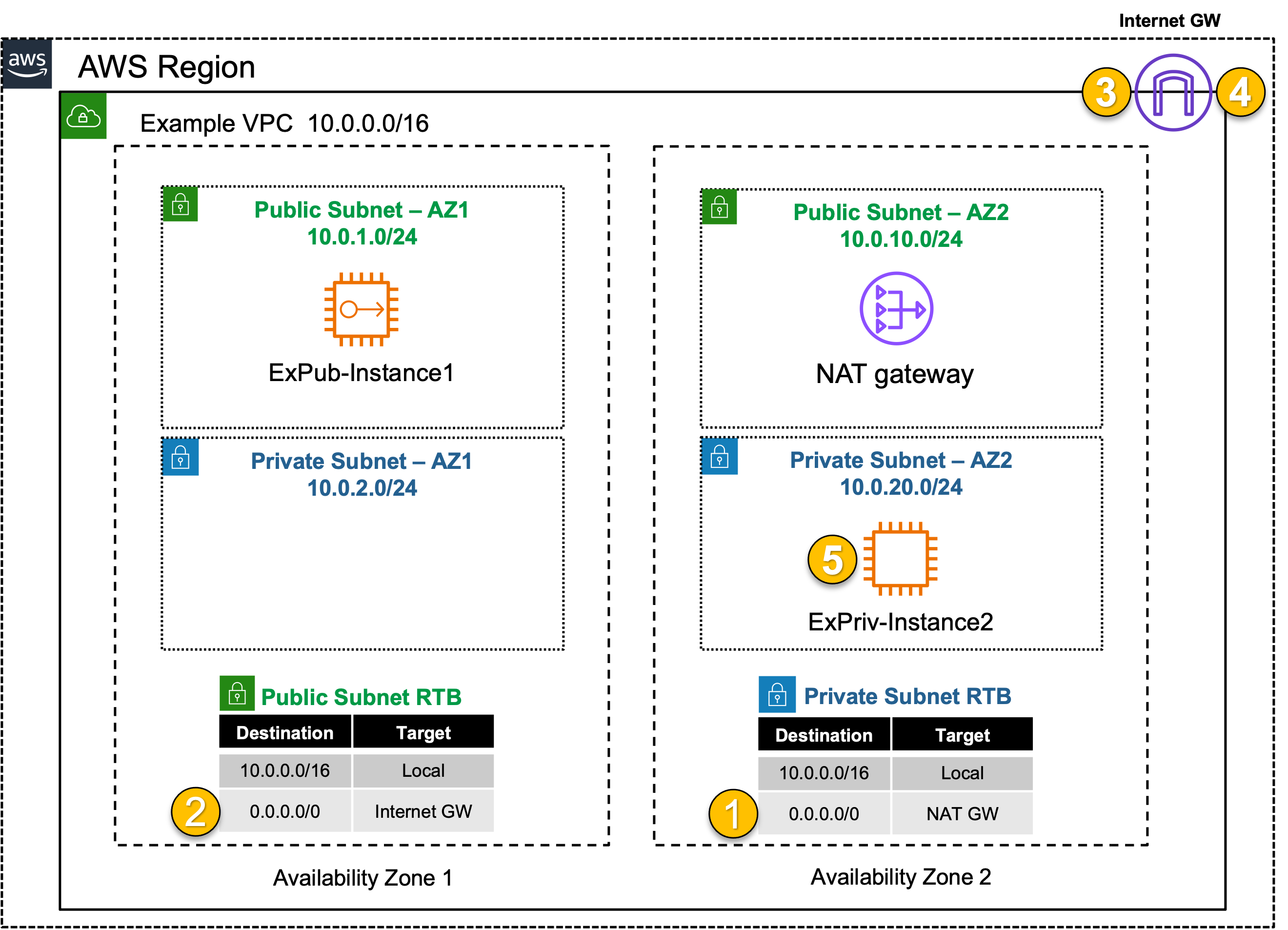

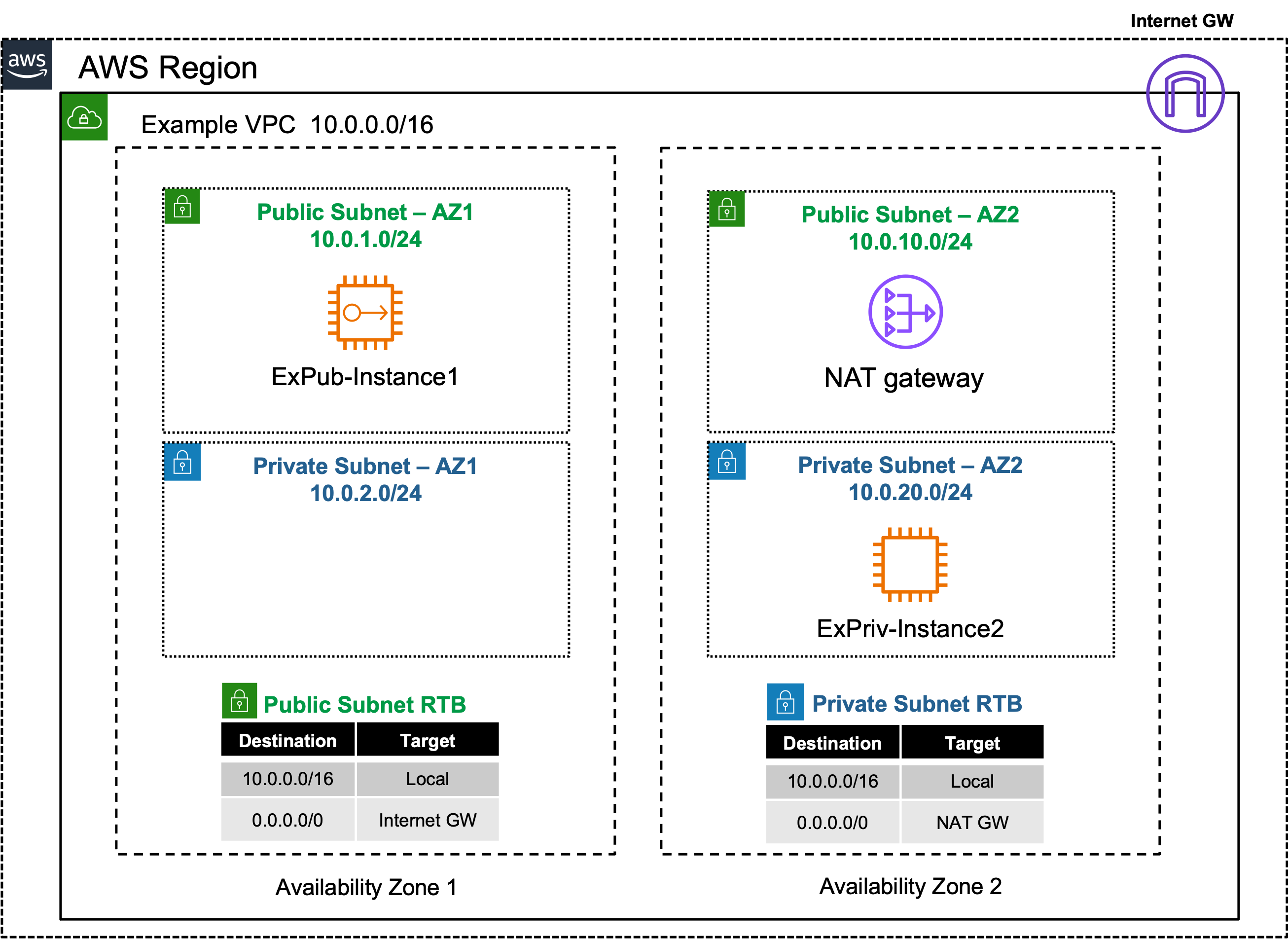

   • 4.5 Below is a step by step of the packet handling for the outbound web traffic from ExPriv-Instance2.

   Hop	Component	Description	Packet
   1	ExPriv-Instance2 -> 0.0.0.0/0 NAT GW	ExPriv-Instance2 sends outbound traffic to the VPC router (it’s default gw) which routes the traffic to NAT GW as configured in the Example-PrivateRouteTable.	10.0.2.10:src-port -> x.x.x.x:80
   2	NAT GW -> 0.0.0.0/0 IGW	NAT GW changes the source IP to its own private IP and sends the traffic to VPC router. The VPC router routes traffic to IGW as configured in the Example-PublicRouteTable.	y.y.y.y:src-port -> x.x.x.x:80
   3	IGW -> Internet	IGW changes the source IP to the associated EIP of NAT GW and routes the traffic to the internet.	z.z.z.z:src-port -> x.x.x.x:80
   4	Internet -> IGW	IGW receives reply traffic, changes the source IP to the private IP of NAT GW, and sends the traffic to VPC router. The VPC router routes traffic to the NAT GW.	x.x.x.x:80 -> y.y.y.y:dst-port
   5	NAT GW -> ExPriv-Instance2	NAT GW changes the source IP back to the private IP of ExPriv-Instance2 and routes the traffic to the VPC router which delivers the traffic to ExPriv-Instance2.	x.x.x.x:80 -> 10.0.2.10:dst-port



Discussion Points

• NAT GW providing many to 1 NAT, for outbound only.
• No internal reachability via NATGW, so no inbound probes seen on any of the private instances.
• General best practice, though thoroughly insufficient for overall security principles.

This concludes this task
