Testing Adaptive Learning

Testing Adaptive Learning

For this section, we will use scripts that we will run on the client machine to generate traffic.

  • Access Primary FortiADC’s GUI from the console using the link provided
  • Login to the FortiADC with the username admin and password fortinet
  • First, we need to clear all the logs from FortiADC.

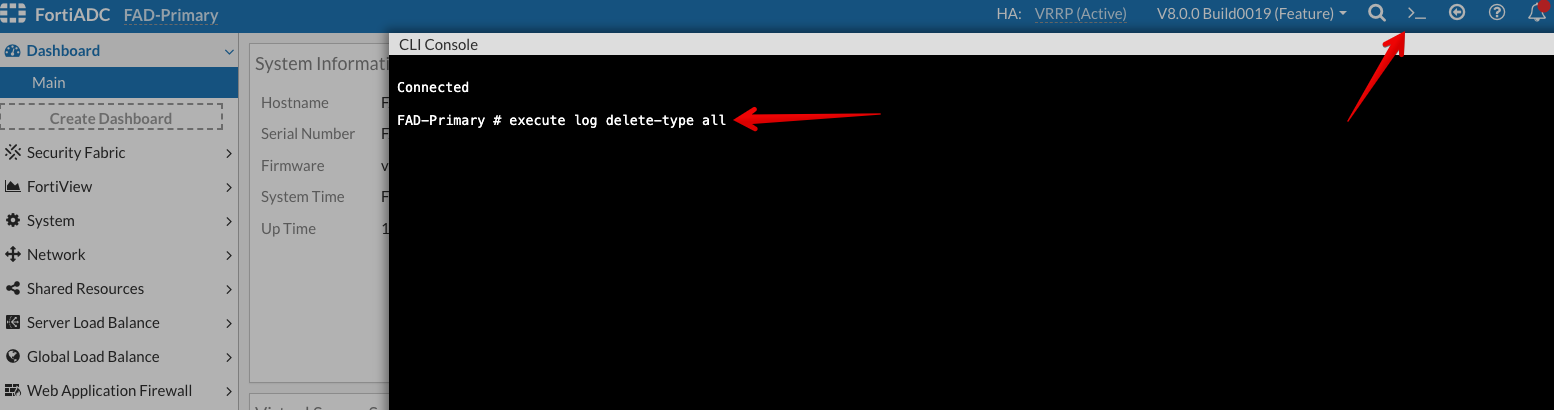

  • To do that, go to FortiADC CLI by clicking “>_” towards the top right corner and type execute log delete-type all

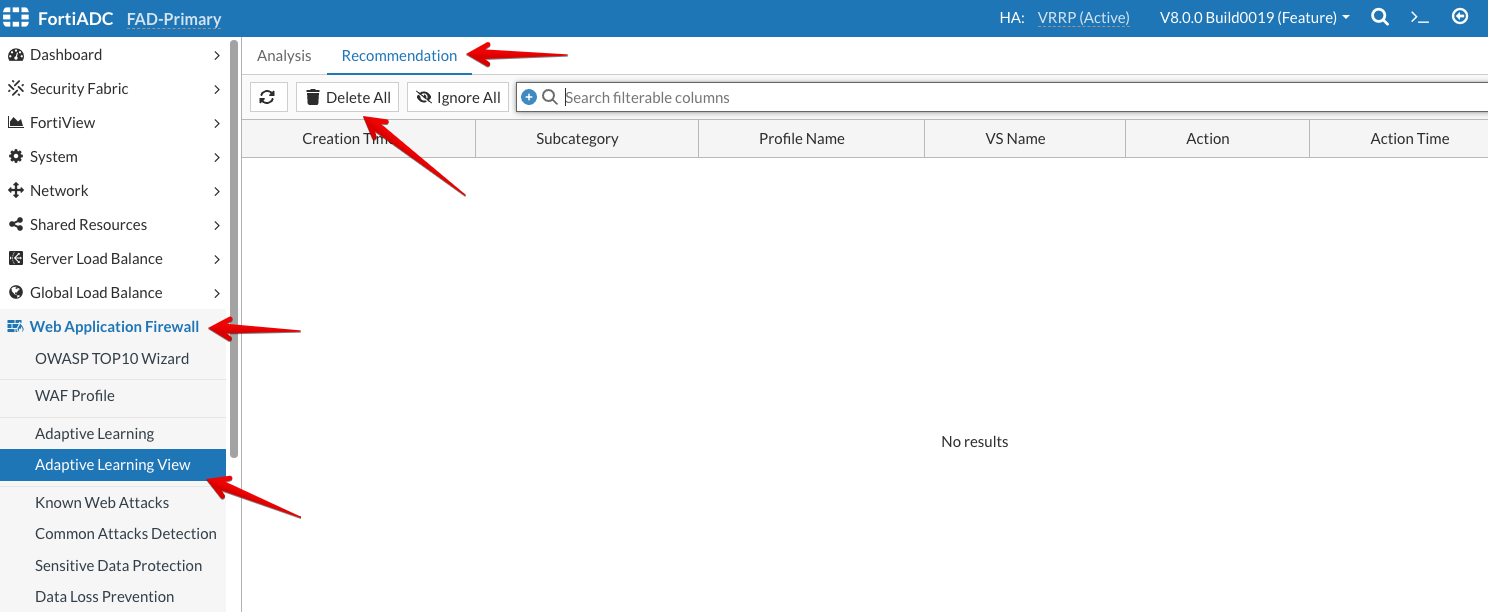

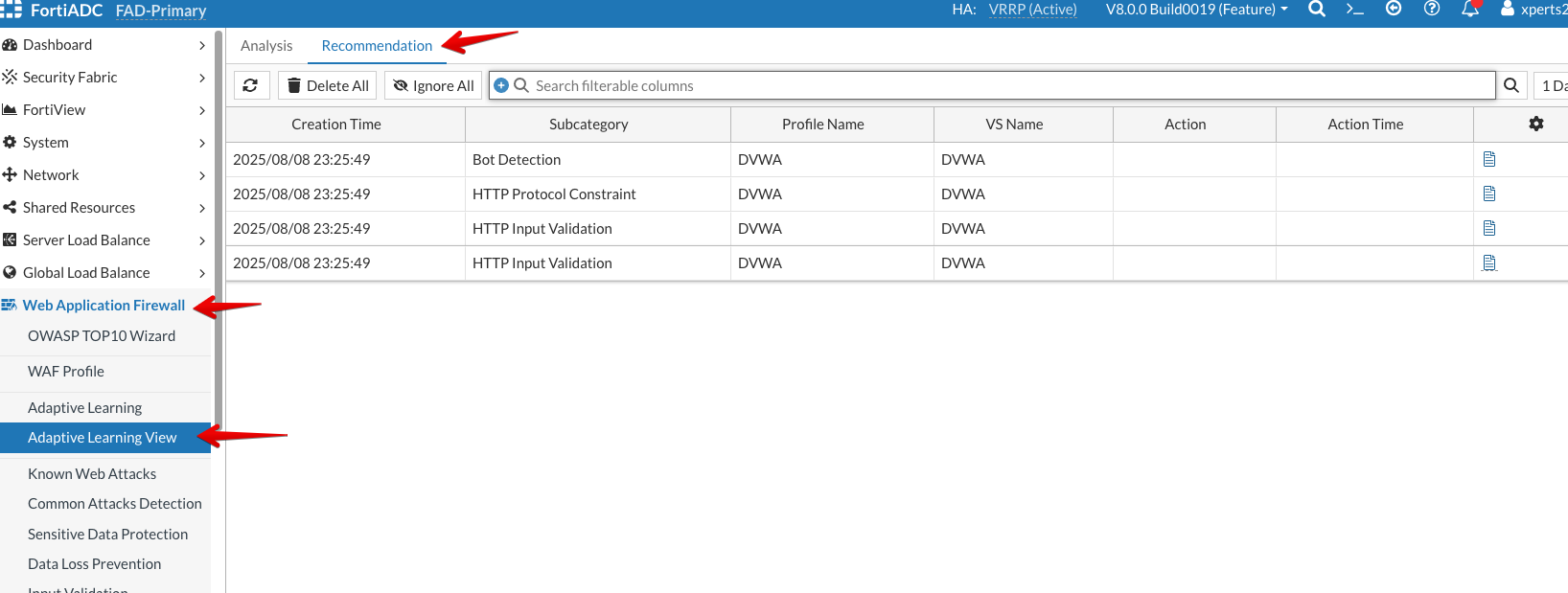

  • Go to Web Application Firewall → Adaptive Learning View and delete all Recommendations as shown below.

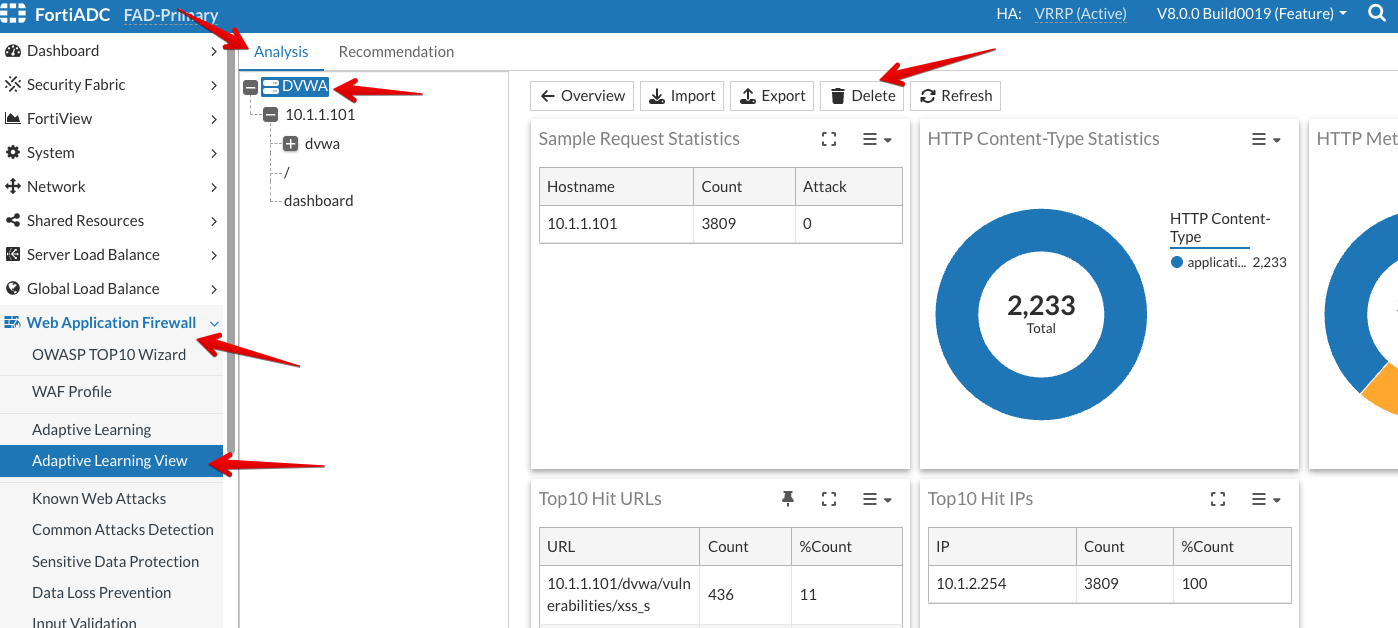

  • Go to Web Application Firewall → Adaptive Learning View and delete all Analysis data as shown below.

  • RDP to the client machine with the username fortinet and password fortinet

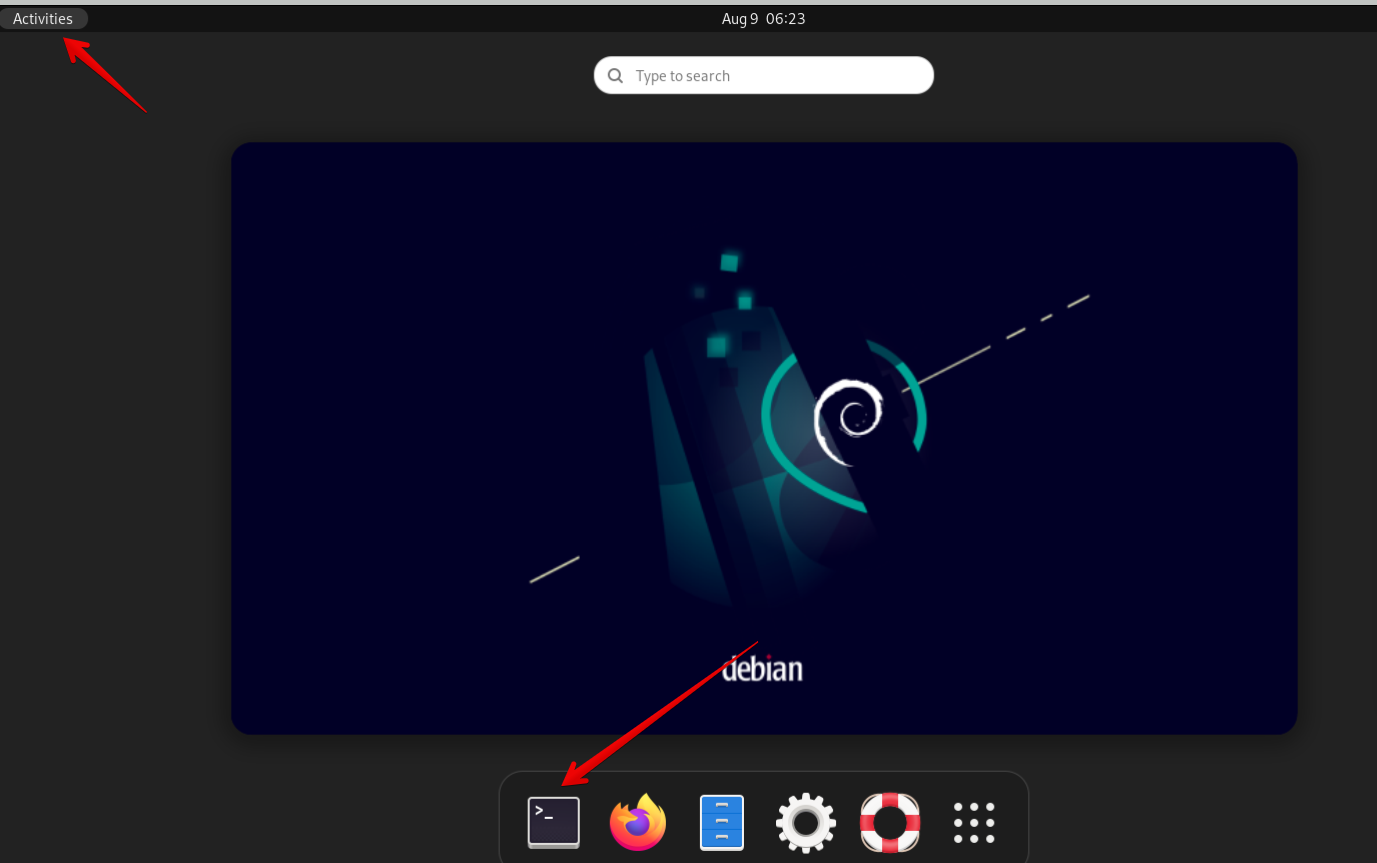

  • Click on Activities on top left corner and open Terminal

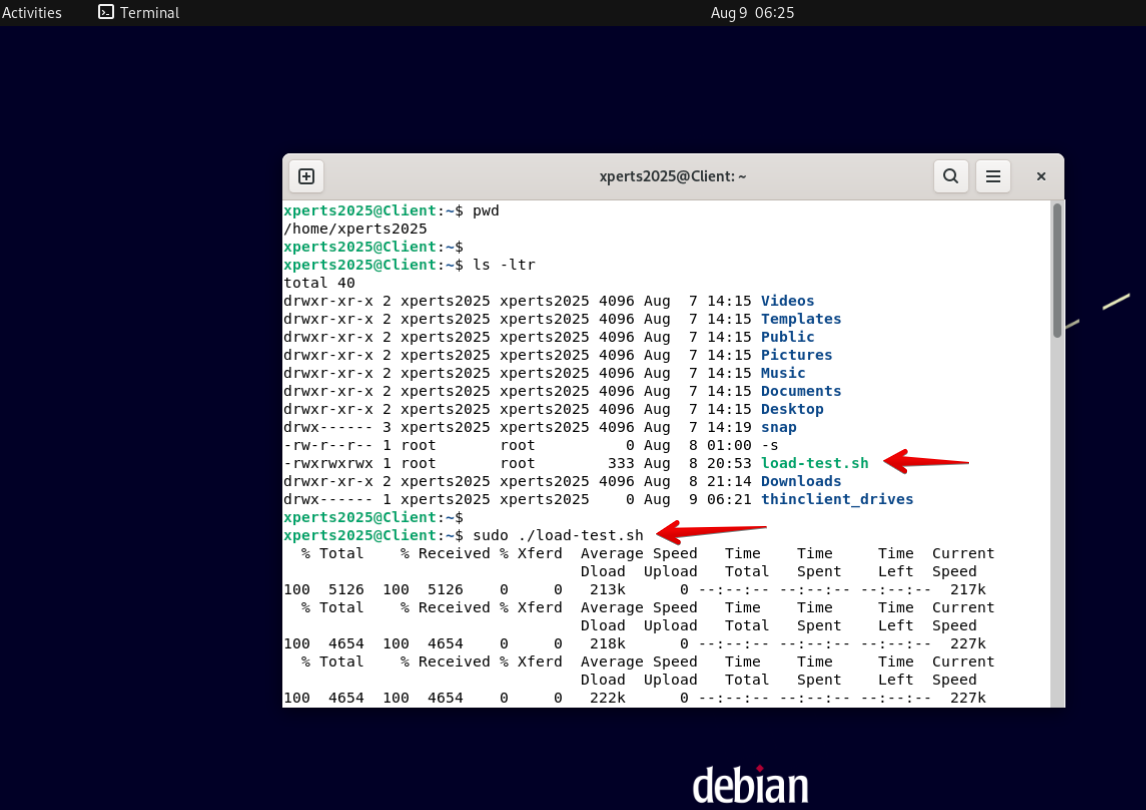

  • Run sudo ./load-test.sh and let it run until it’s finished (about 2 minutes).

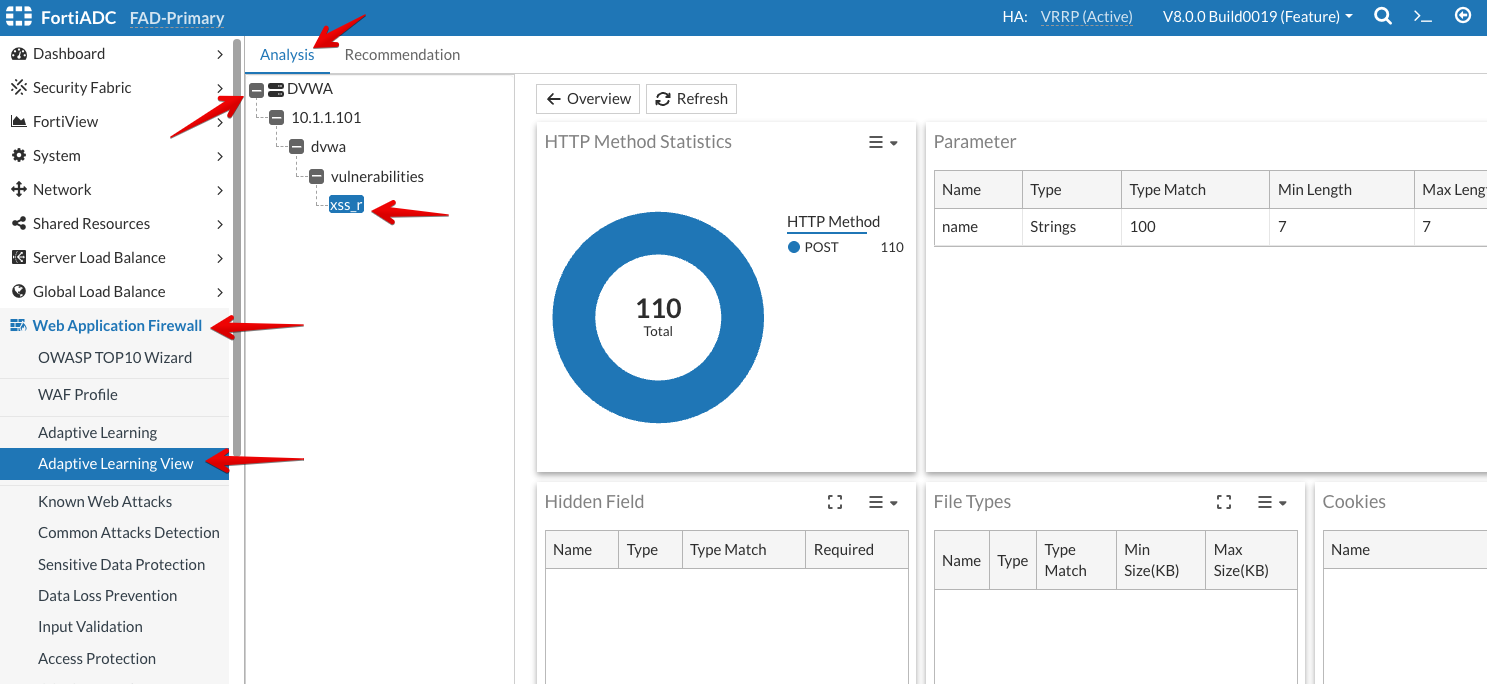

  • Go back to FortiADC console and click Web Application Firewall → Adaptive Learning View and observe the Adaptive Learning data under Analysis and Recommendation.

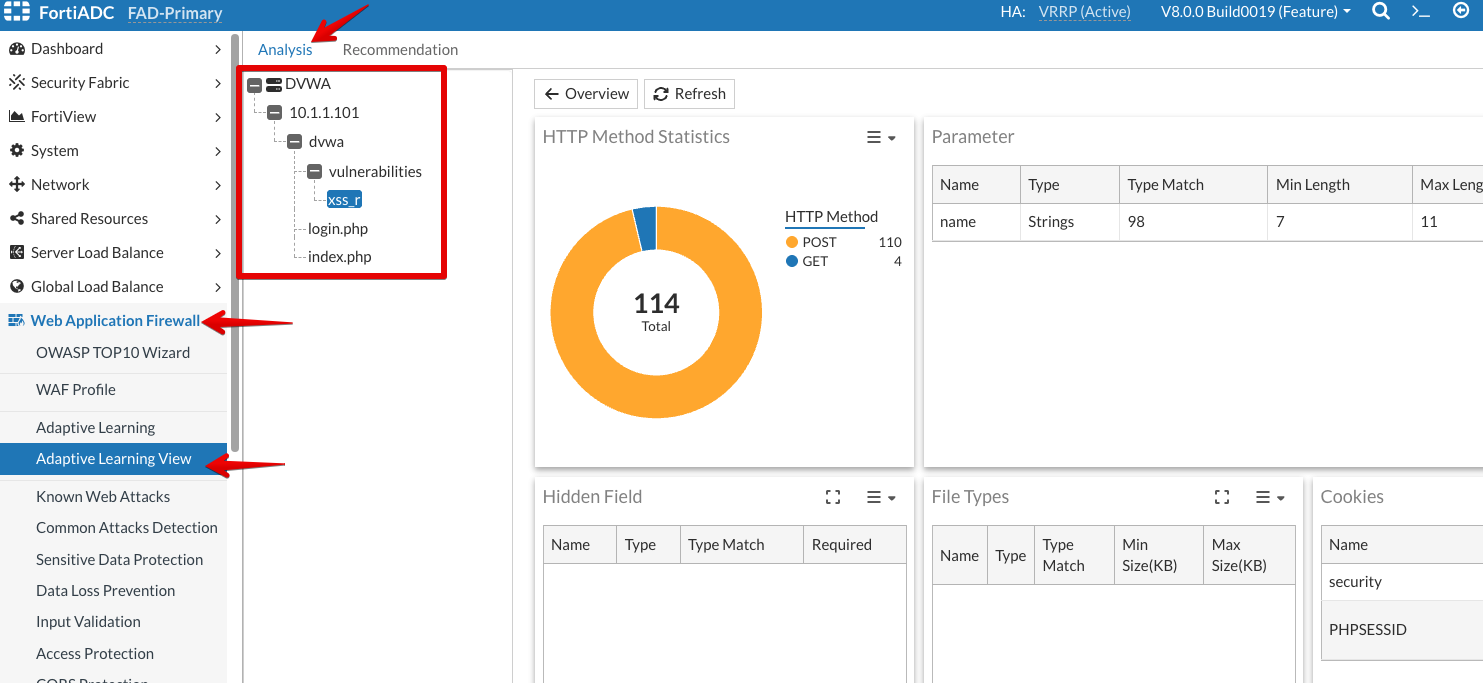

  • Expand the DVWA tab and observe the different directories detected by Adaptive Learning.

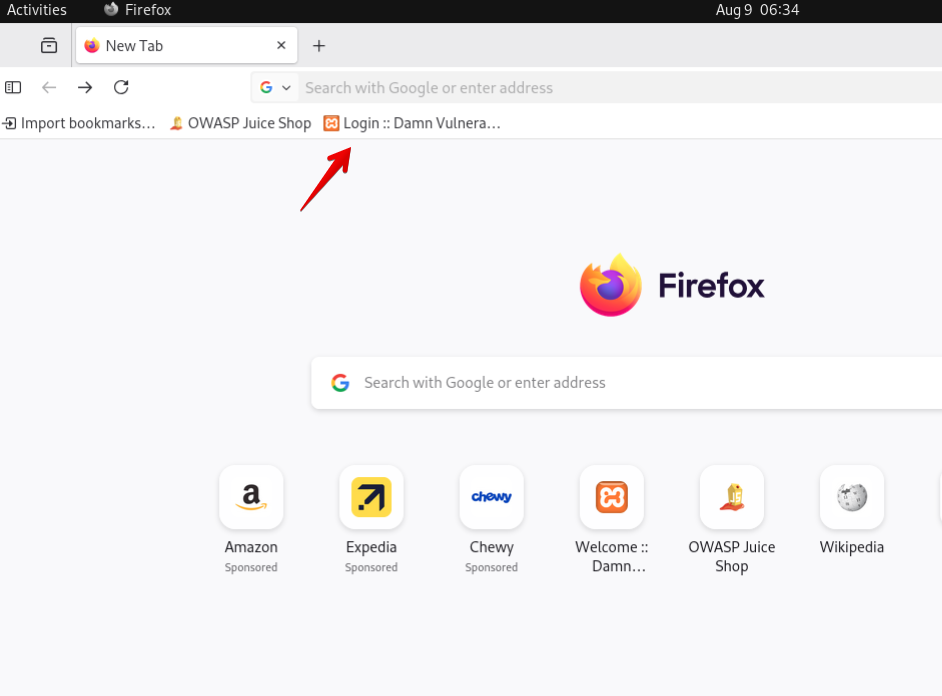

  • Go back to RDP connection to the Client, click on Activities on top left corner and open Firefox and using the bookmark go to DVWA

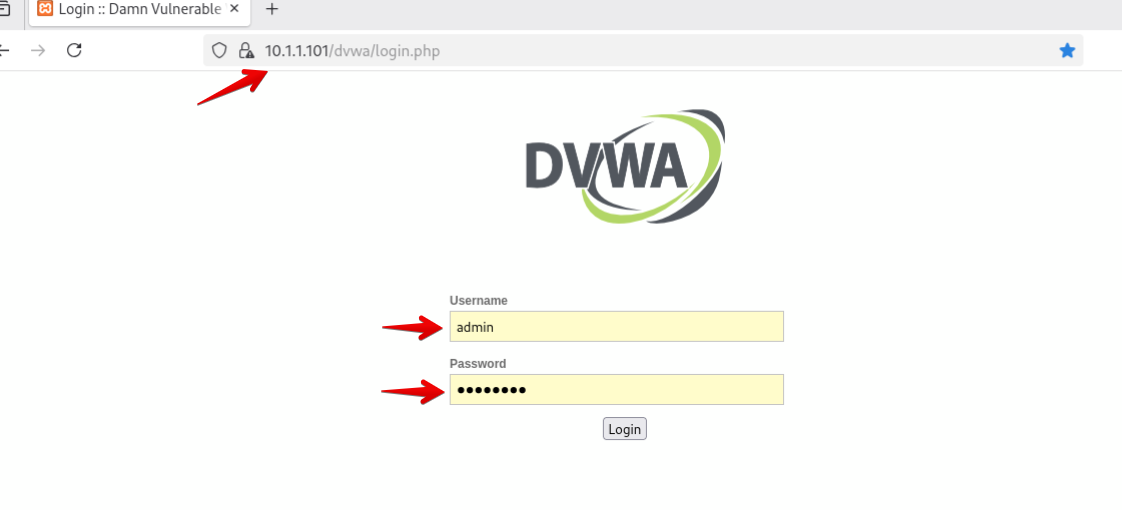

  • Login to DVWA app with the username admin and password password

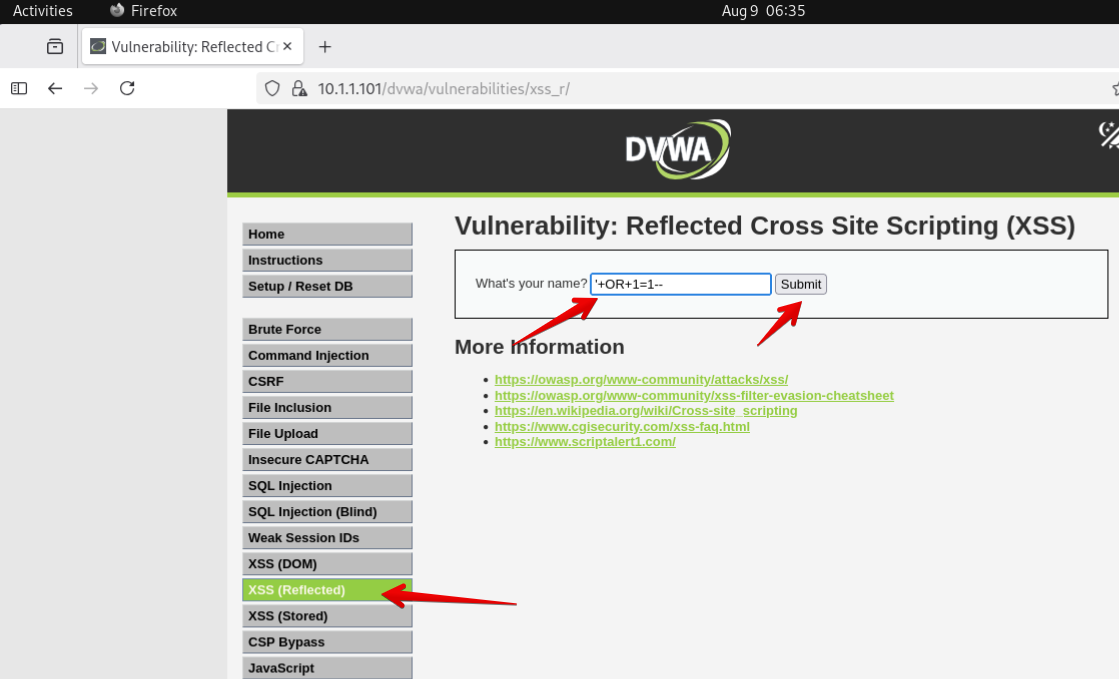

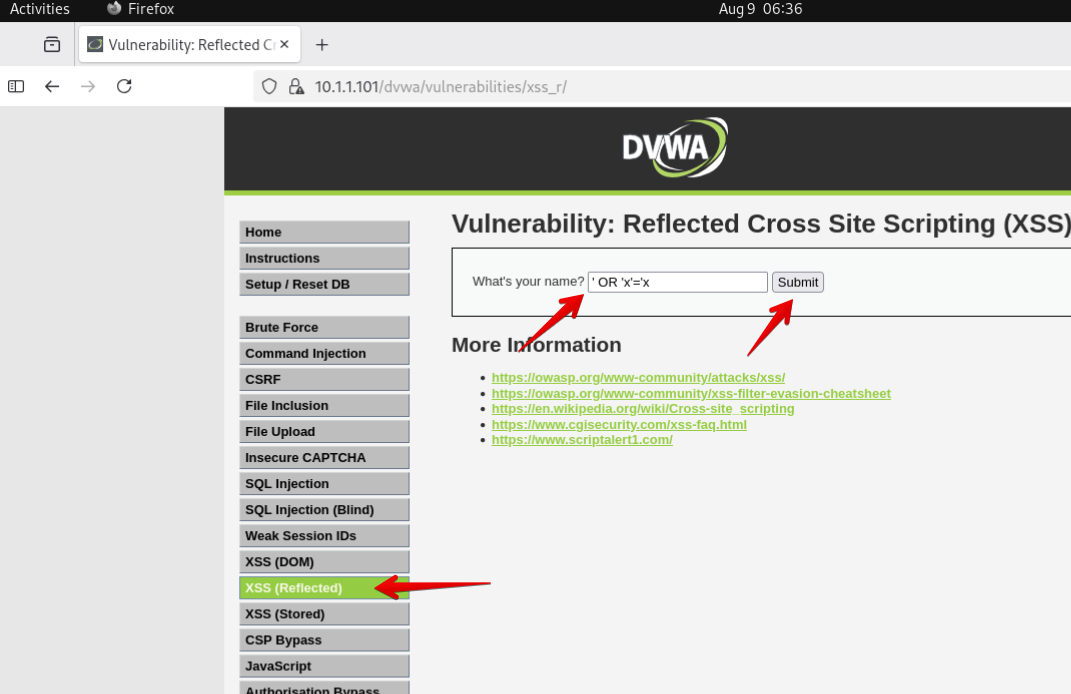

  • Go to XSS (Reflected) from the left menu and insert an SQL Injection twice, '+OR+1=1-- and ' OR 'x'='x

  • Give it a couple of minutes to run its analysis and log the new recommendations.

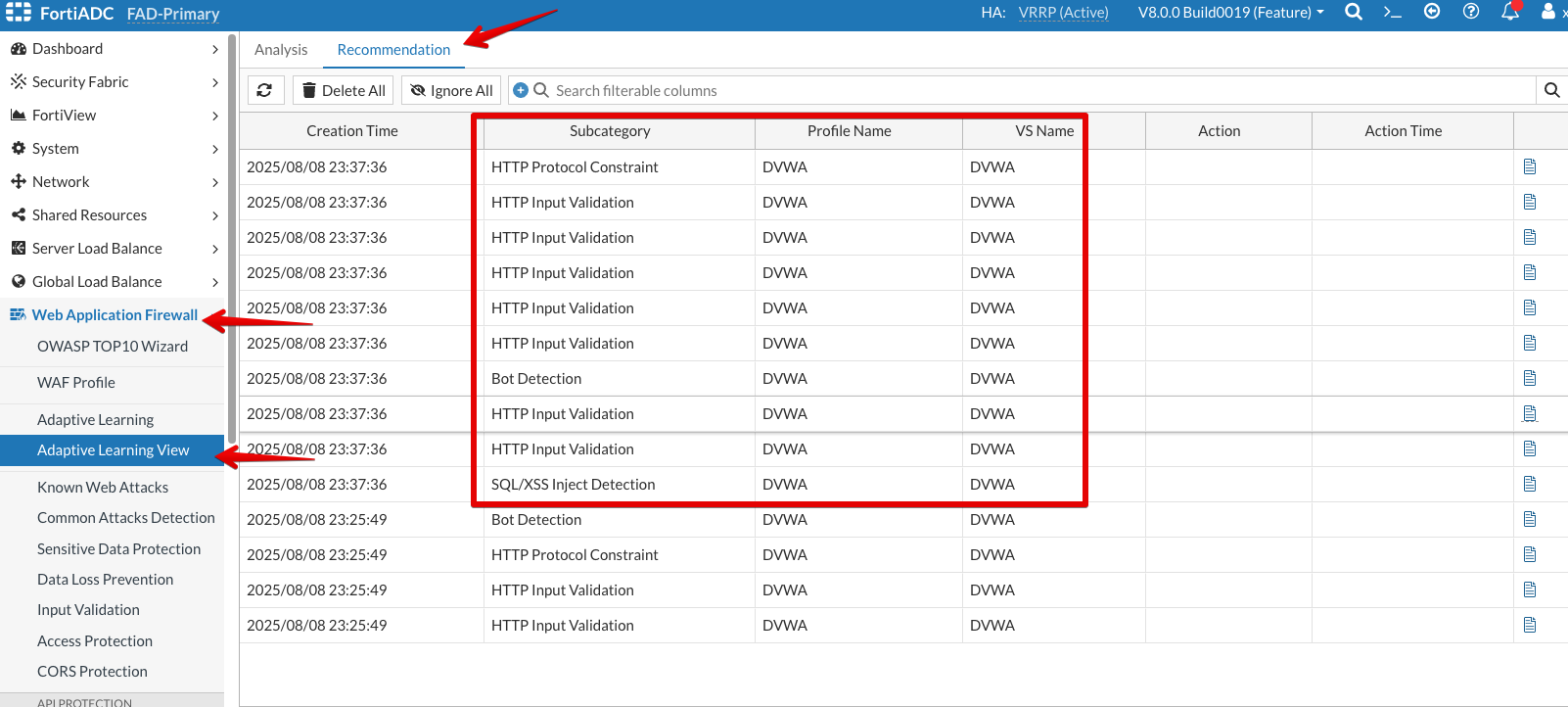

  • Go back to FortiADC console and click Web Application Firewall → Adaptive Learning View and observe the Adaptive Learning data under Analysis and Recommendation.
  • There should be various WAF Recommendations including HTTP Input Validation, HTTP Protocol Constraint, and SQL/XSS Inject Detection.

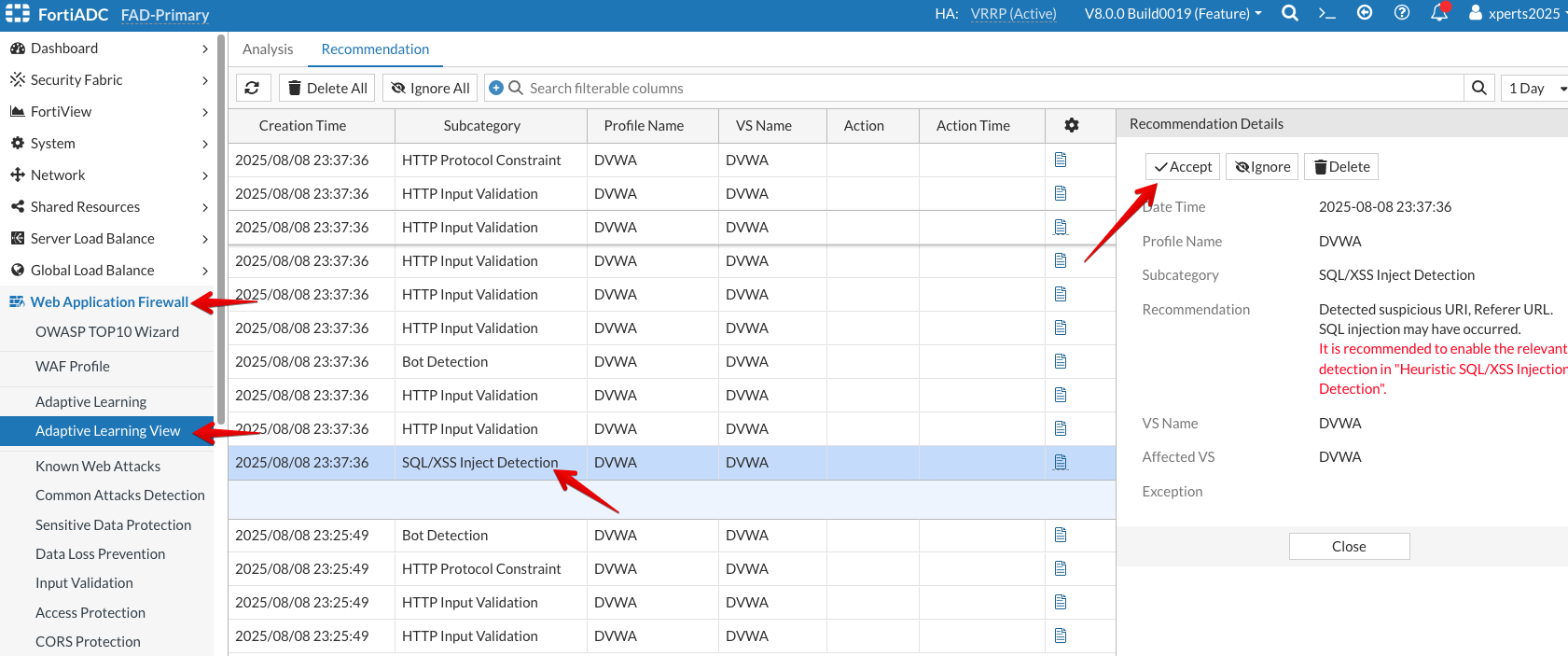

  • Accept the Recommendations and repeat the above step for all the recommendations.

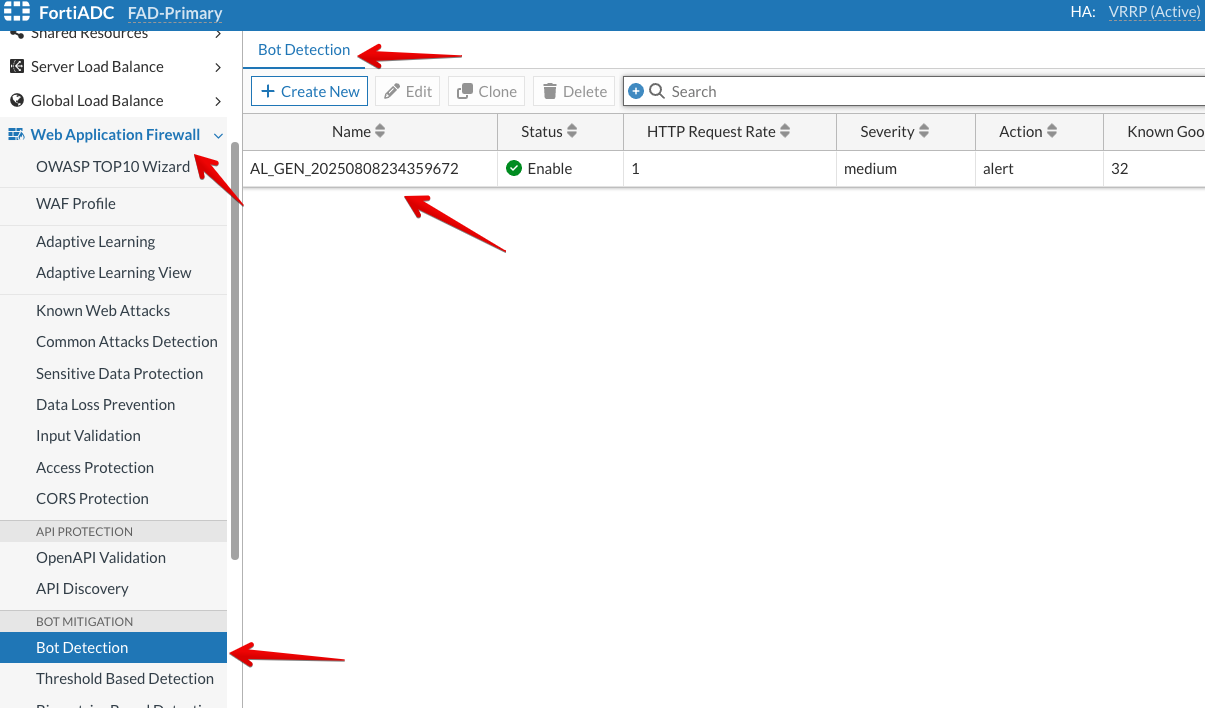

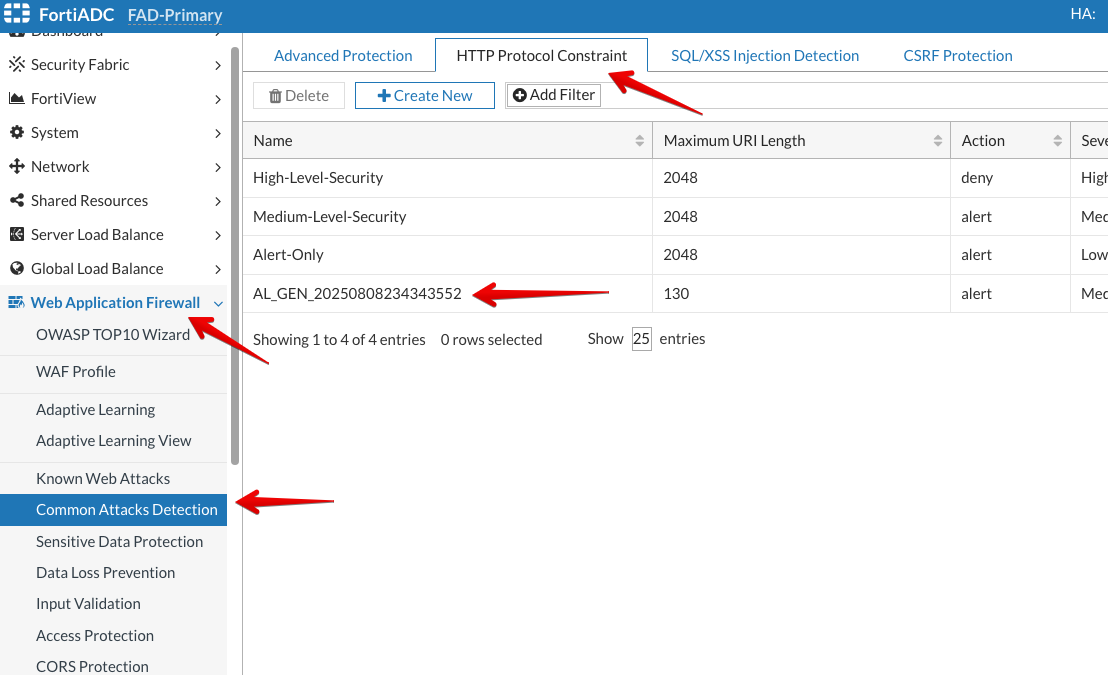

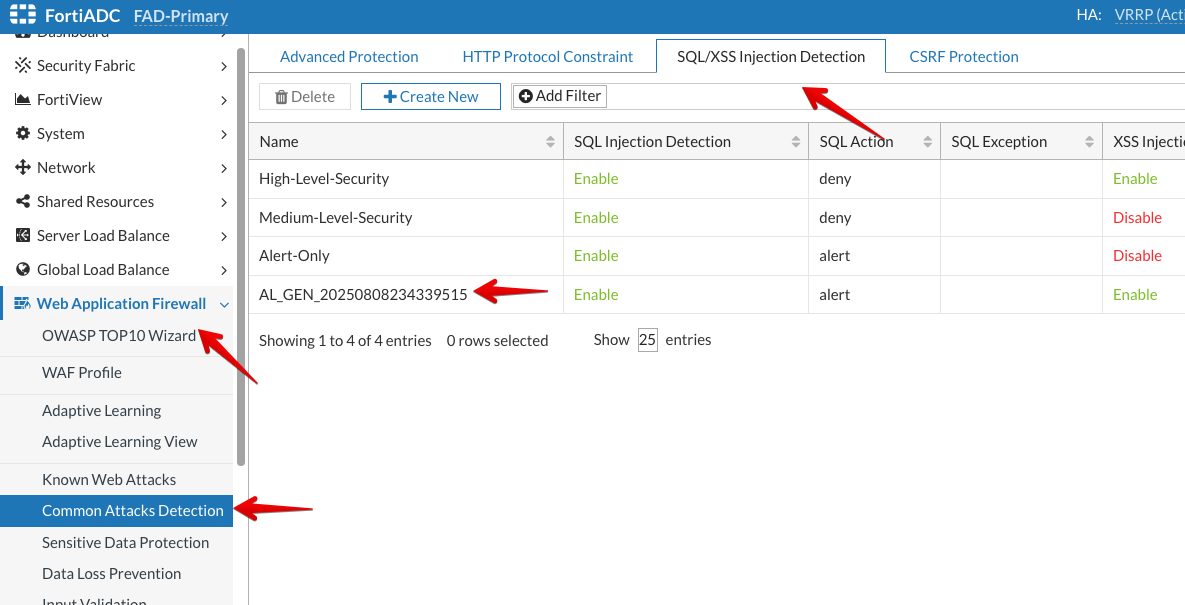

  • Review the config changes by the Adaptive Learning. We can see from the below screenshots, that once we accepted the recommendations from Adaptive Learning, it was added to WAF profile’s modules like HTTP Protocol Constraint, SQL/XSS Injection Detection and Bot Detection.
