Task 10: Create Centralized Egress Workload VPC using Terraform in AWS Cloudshell

Info

Note: Make sure you are running this workshop in the intended region. The defaults are configured to run this workshop in us-west-2 (Oregon). Make sure your management console is running in us-west-2 (Oregon), unless you intend to run the workshop in a different supported region.

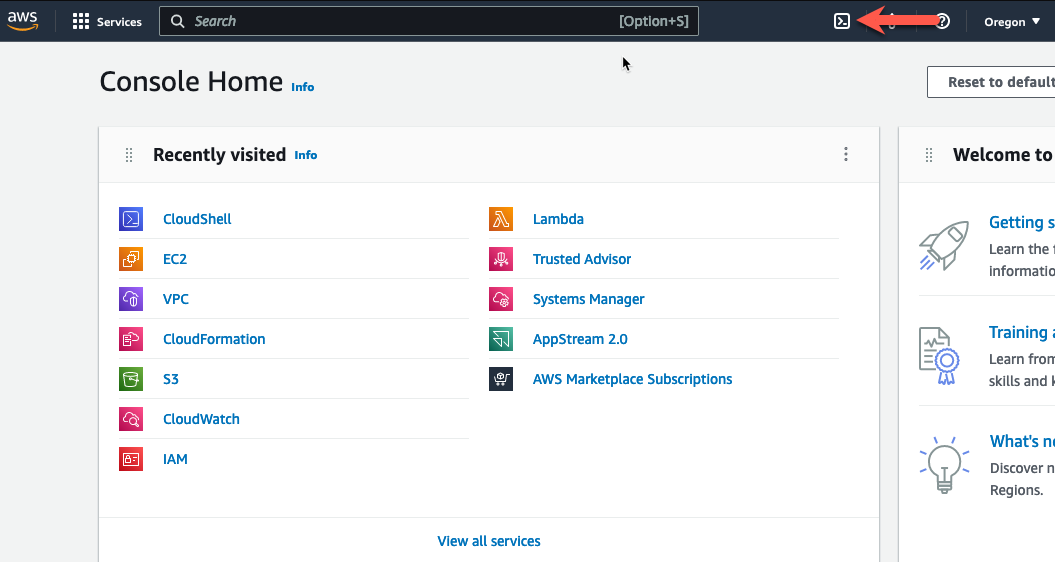

  • Click on the AWS CloudShell icon on the console navigation bar

  • You should already have this repository cloned in your CloudShell environment from Task 2. If not, Clone a repository that uses terraform to create a centralized ingress workload vpc

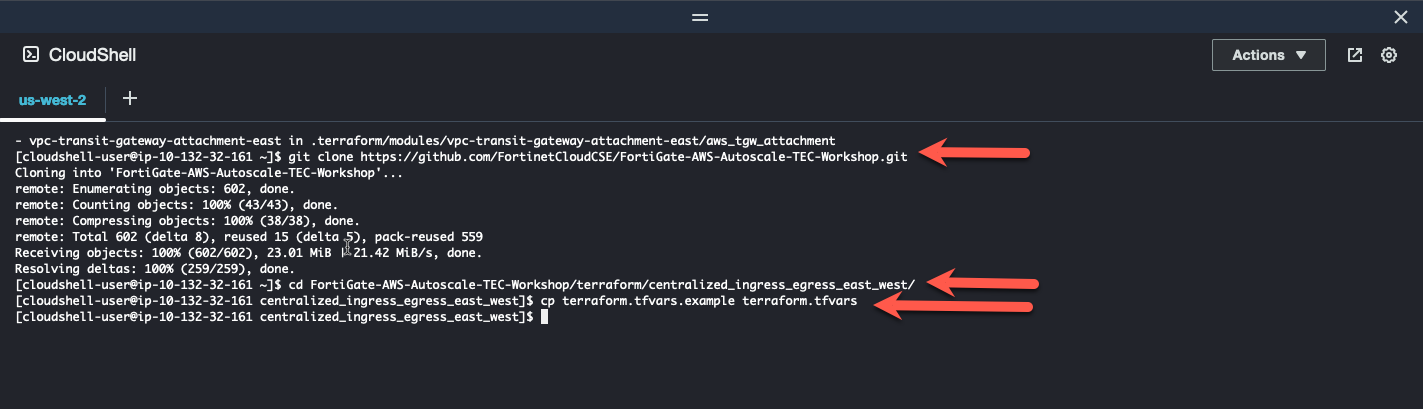

    git clone https://github.com/FortinetCloudCSE/FortiGate-AWS-Autoscale-TEC-Workshop.git

  • Change directory into the newly created repository for centralized_ingress_egress_east_west

    cd FortiGate-AWS-Autoscale-TEC-Workshop/terraform/centralized_ingress_egress_east_west

  • Copy the terraform.tfvars.example to terraform.tfvars

    cp terraform.tfvars.example terraform.tfvars

  • Edit the terraform.tfvars file and insert the name of a valid keypair in the keypair variable name and save the file
Info

Note: Examples of preinstalled editors in the Cloudshell environment include: vi, vim, nano

Info

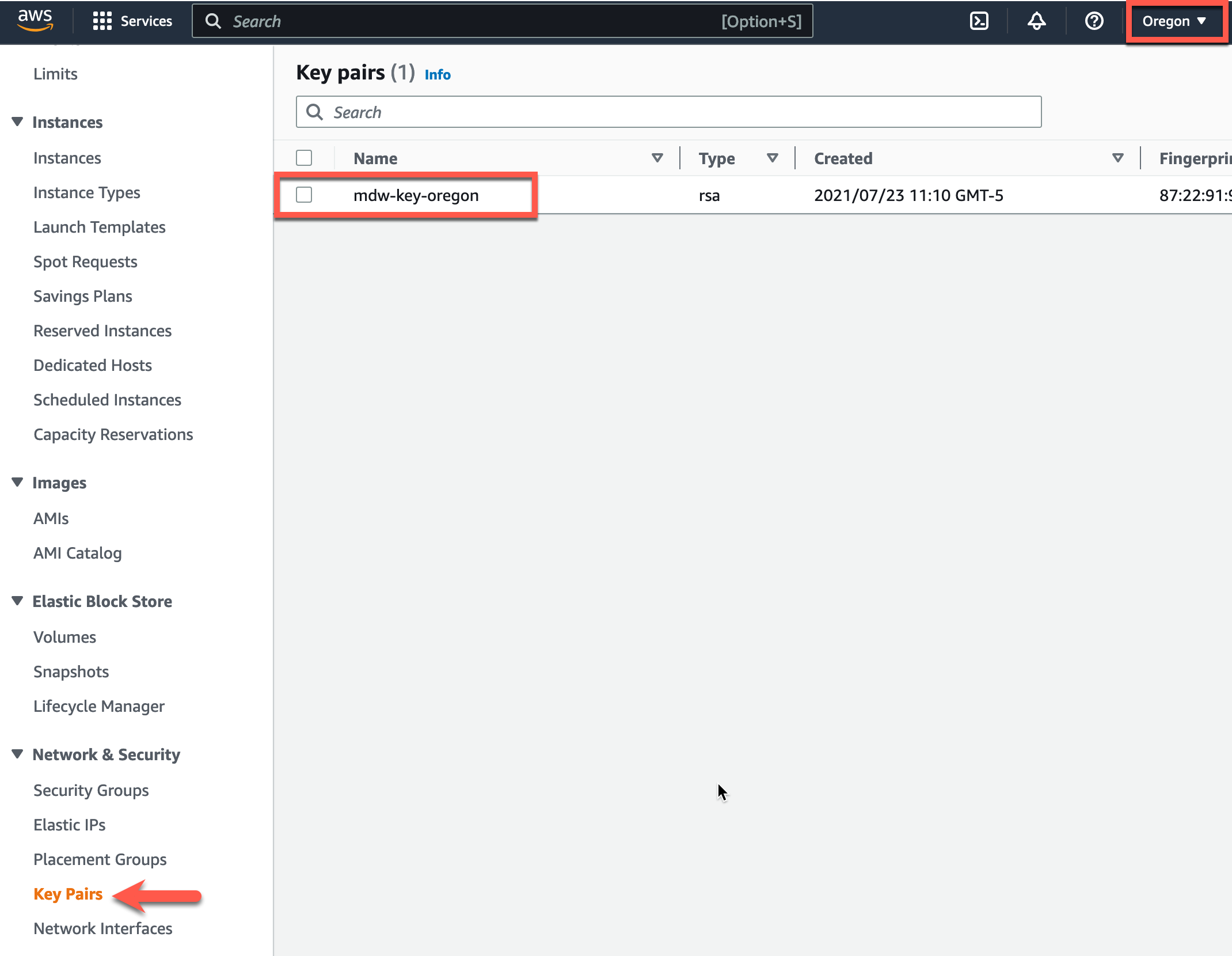

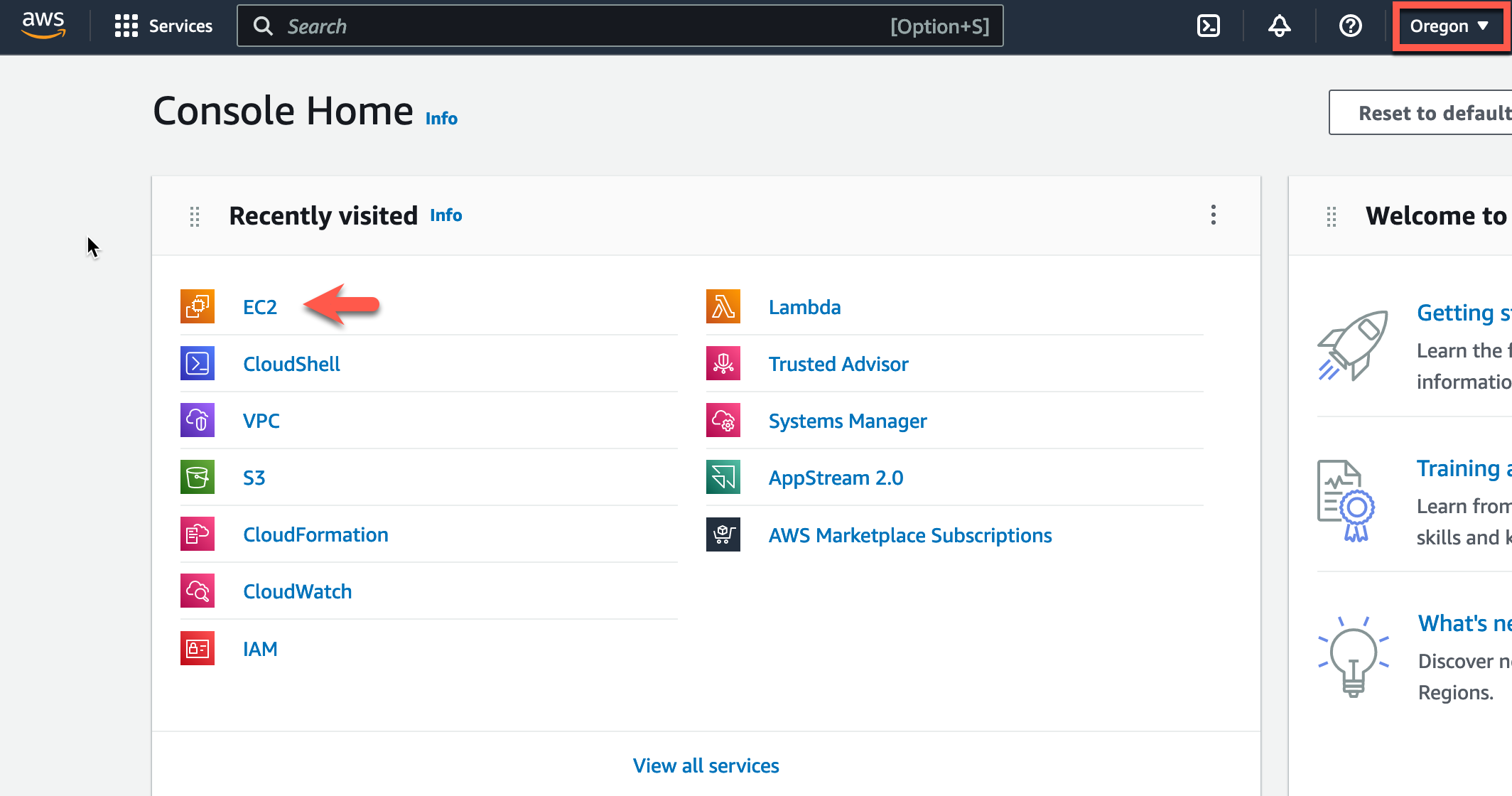

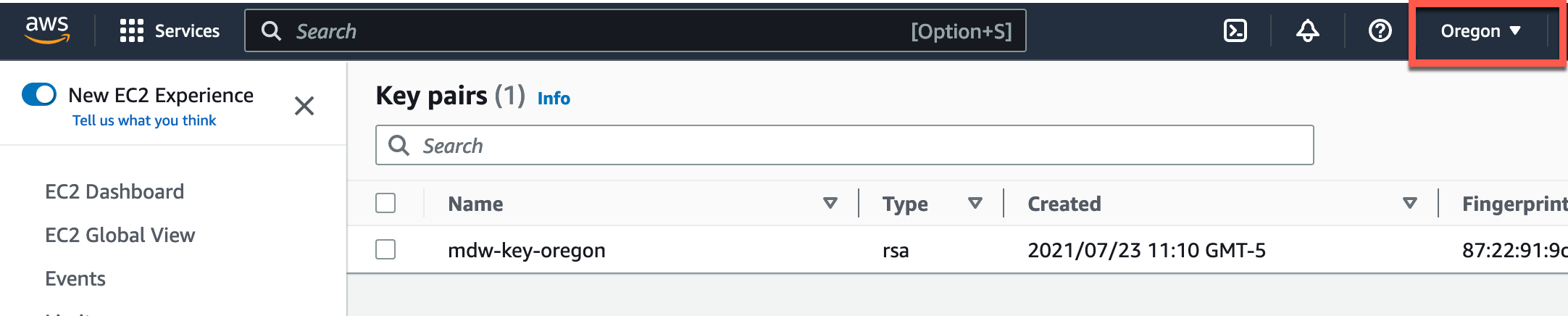

Note: AWS Keypairs are only valid within a specific region. To find the keypairs you have in the region you are executing the lab in, check the list of keypairs here: AWS Console->EC2->Network & Security->keypairs. This workshop is pre-configured in the terraform.tfvars to run in the us-west-2 (Oregon) region.

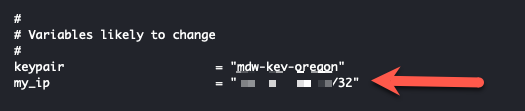

  • Insert the CDIR value (x.x.x.x/32) of your local IP (from whatsmyip.com) and we will not have to manually modify the security groups like we did in task3.

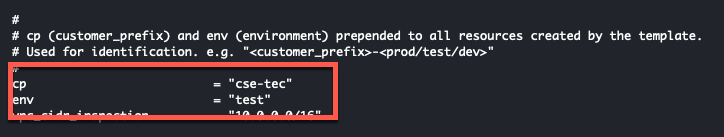

  • Modify the the cp and env variables to a value that is identifiable to you. e.g. cp = “cse-tec” and lab = “test”. All the resources created by this template will be tagged with these values.mv

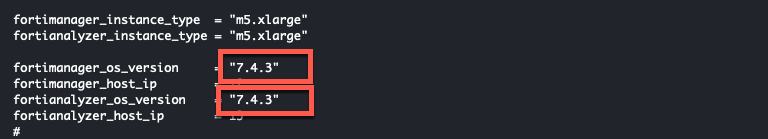

  • Modify the fortimanager_os_version and fortianalyzer_os_version to the version you want to use.

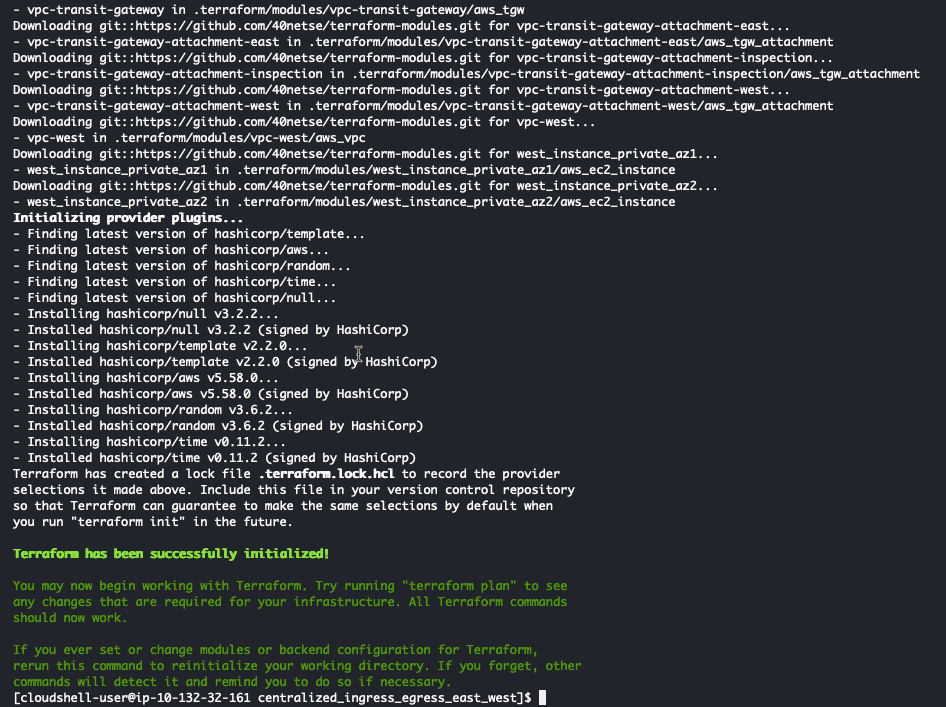

  • Use the “terraform init” command to initialize the template and download the providers

    terraform init

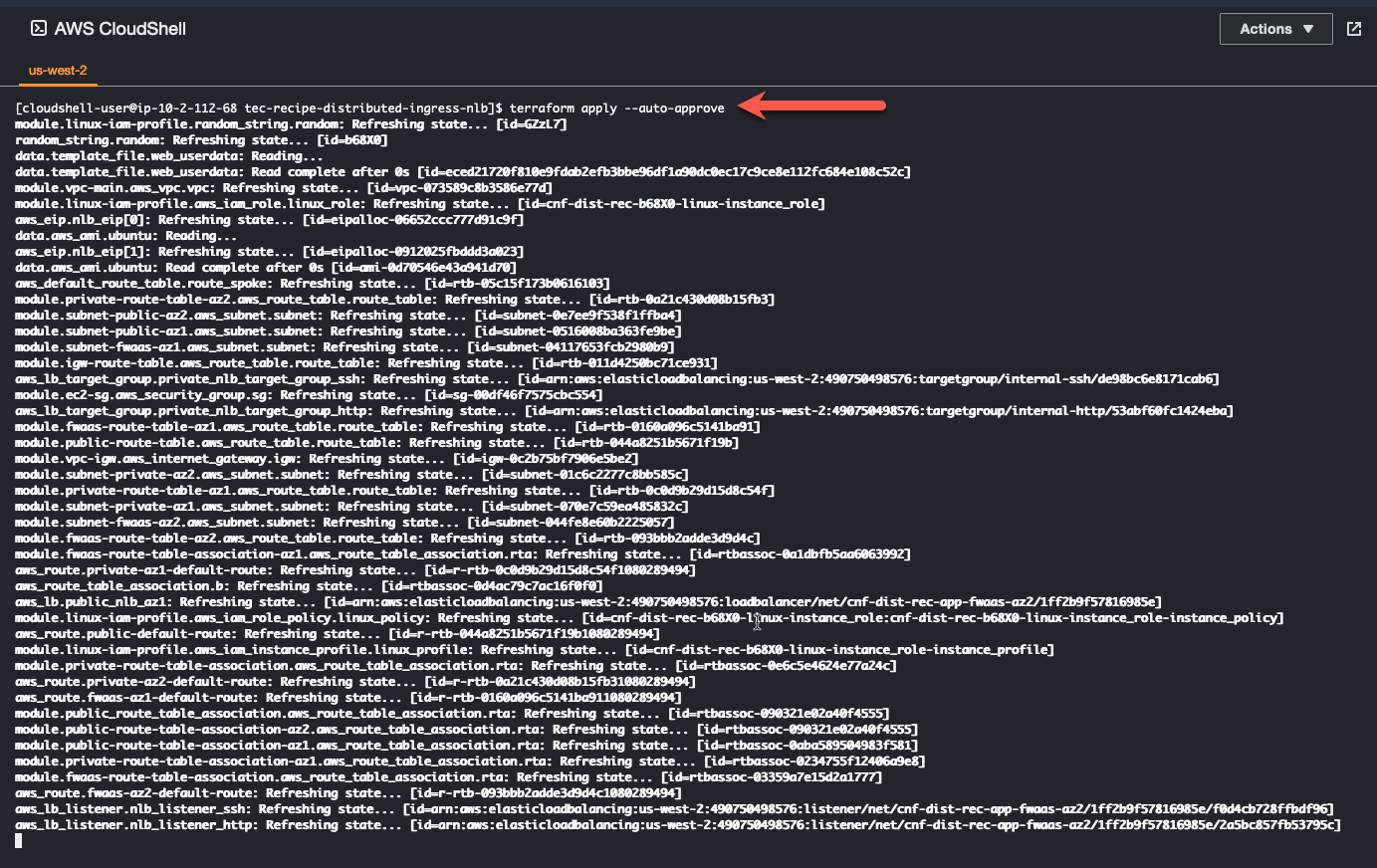

  • Use “terraform apply –auto-approve” command to build the vpc. This command takes about 10 minutes to complete.

terraform apply --auto-approve

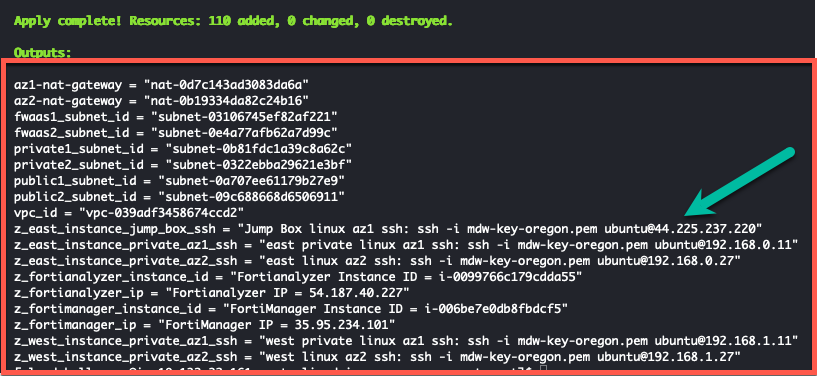

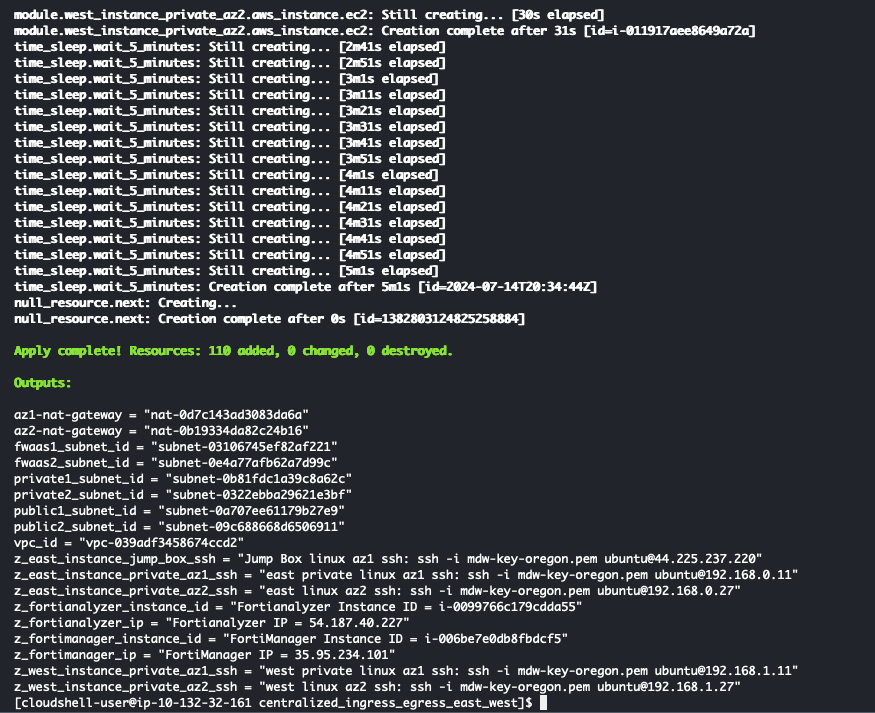

  • When the command completes, verify “Apply Complete” and valid output statements.
    • Make note of the jump box public ip (green arrow).
    • Copy the “Outputs” section to a scratchpad. We will use this info throughout this workshop.

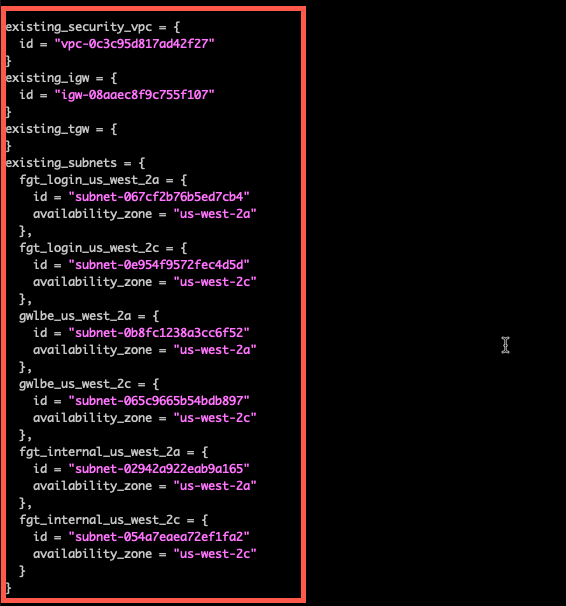

  • Now run the ./dump_workshop_info.sh script and copy the output to your scratchpad. The autoscale scripts will use this information to deploy the autoscale group into the existing vpc you just created.

./dump_workshop_info.sh

The network diagram for the centralized egress vpc looks like this:

  • This concludes this section.
