AWS Fundamentals Part I

Lab Overview

The goal of this lab is to, as quickly as possible, get a simple web site running and exposed to the internet. This website will require some compute resources to run on, exposure to the Internet (inboud/outboud) and permissions to access a centrally managed database.

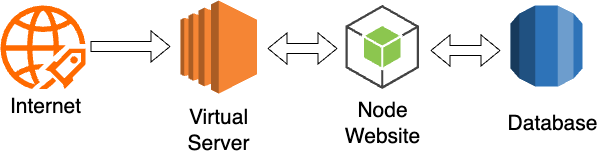

Application Diagram

To achieve your goal you will use the public cloud to create resources, download code, grant permissions and finally expose your website to the entire world. All this will be achieved using the Amazon Web Services (AWS) web console,a web browser and a few simple commands.

Good luck!

Log into AWS Console

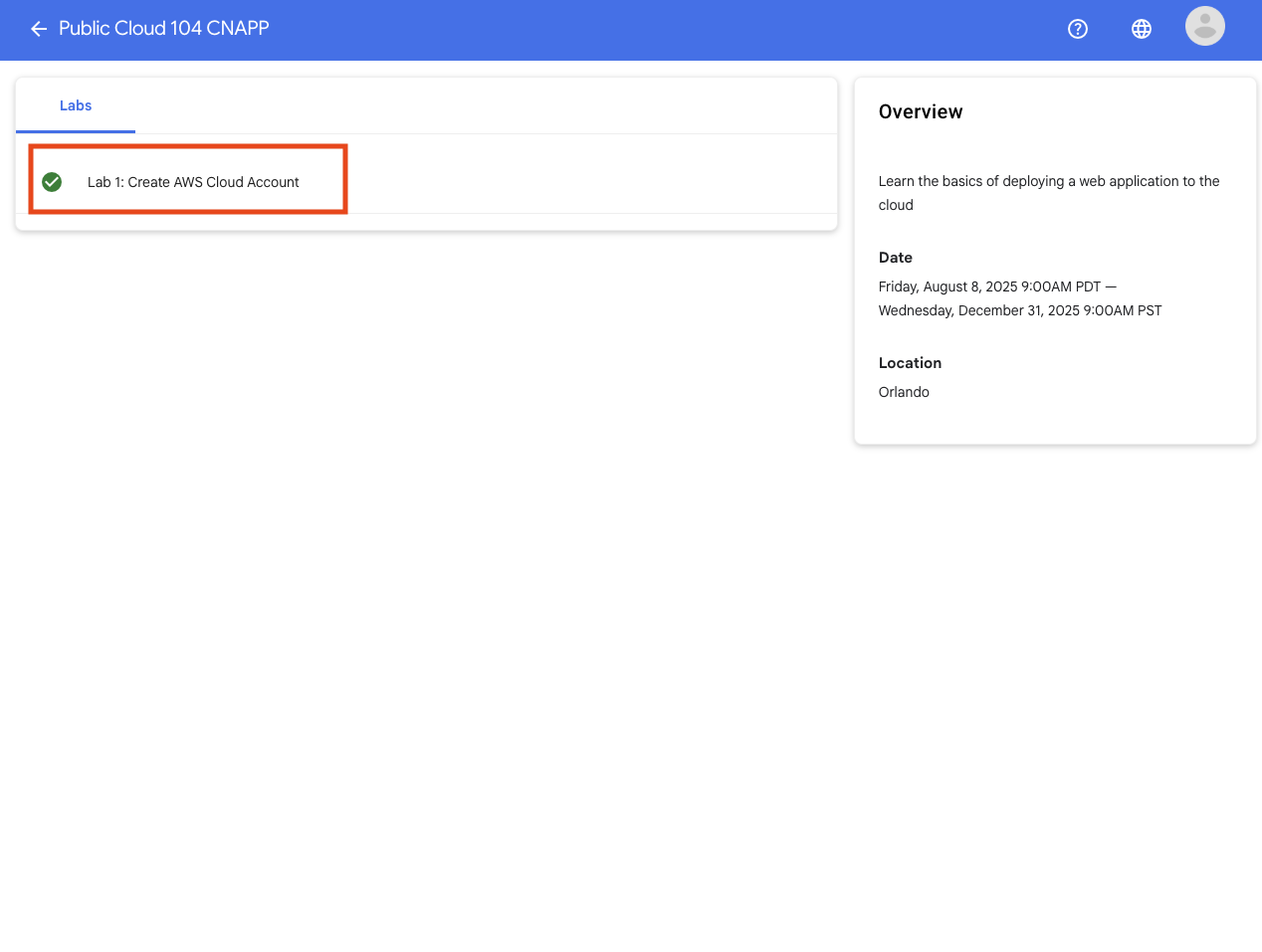

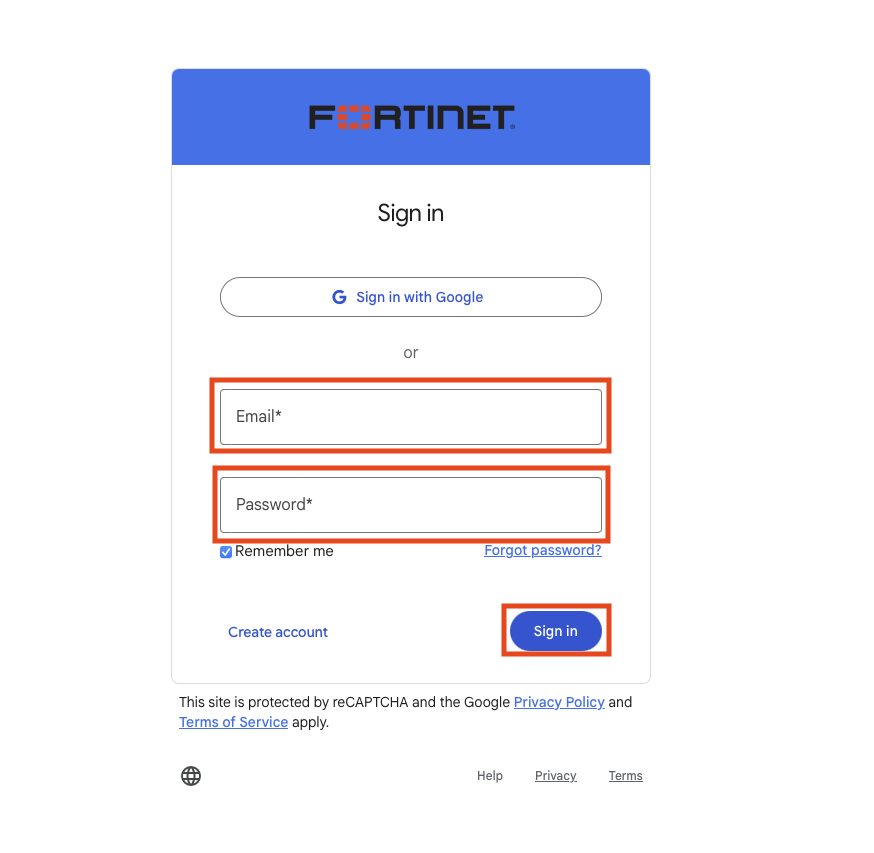

Before we can do anything you will need to get access AWS web console in your browser. The log in details for your lab provided AWS account are on the left hand of the lab. Each field has a copy link you can use.

Click on the Open Console link.

Copy/paste the Username, Password and click Sign In.

Create an Virtual Server

Now that you have access to the AWS Console let’s get working!

To get your website working you will need a server where you can run the code. In a traditional on premise data center you would request a server from your operations team. In the public cloud you can create your own resources, include servers, without having to ask anyone.

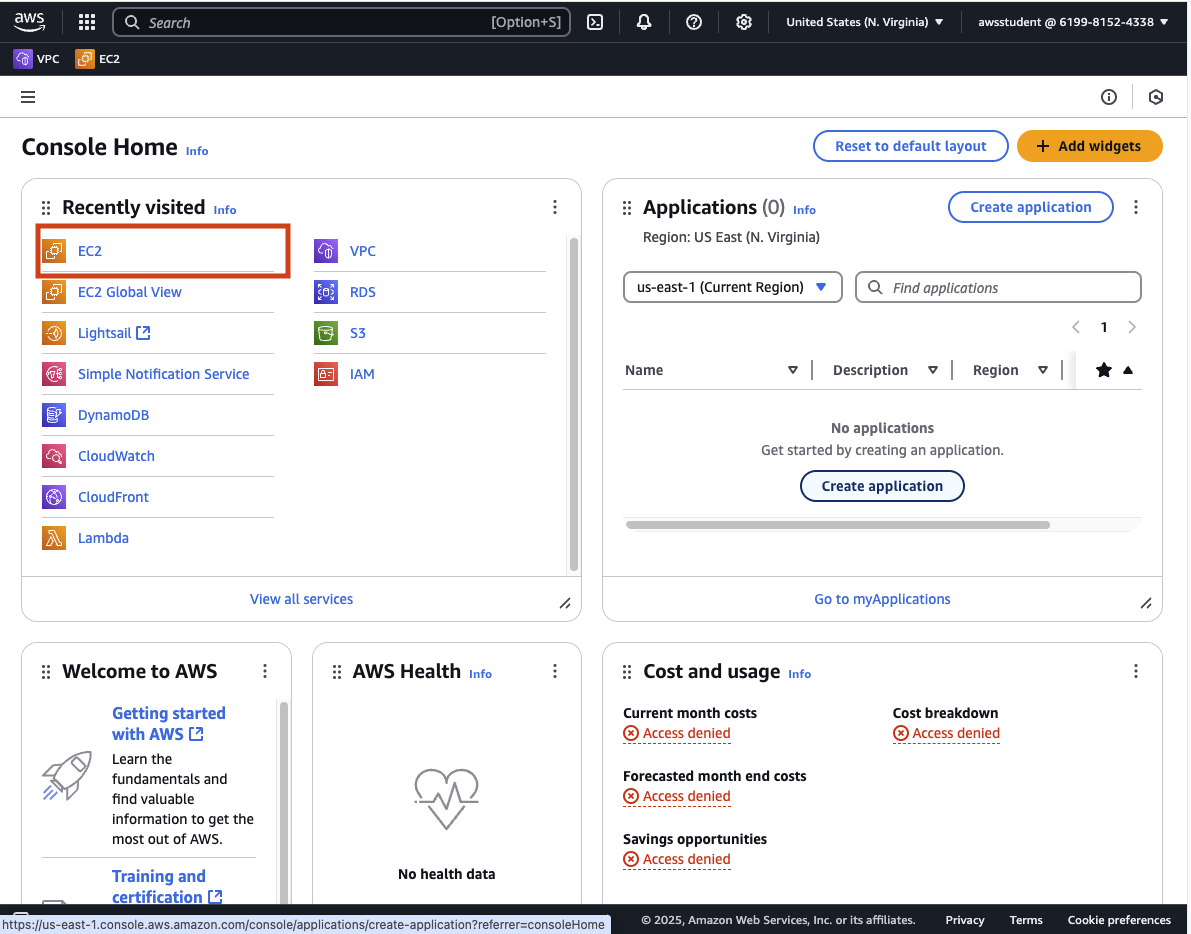

In AWS servers can be created using their EC2 service. Use the search box and type EC2 and click on the top returned result.

The EC2 service enables creating virtual servers in many different regions around the world. By default, you will be dropped into us-east-1 region which is located in the United States, North Virginia.

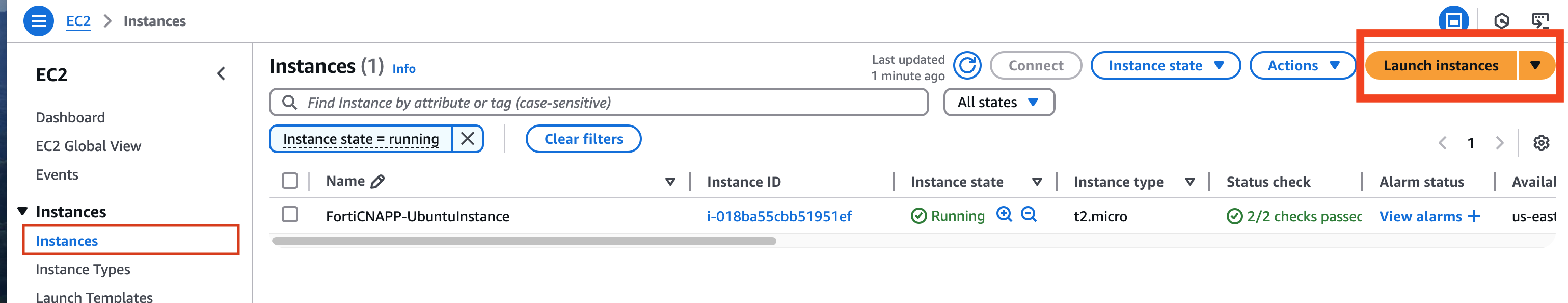

Find Instances in the left hand navigation (Below the Heading of “Instance”) and click on it to view your currently running virtual servers. At the moment you should have none running.

Click on Launch Instance

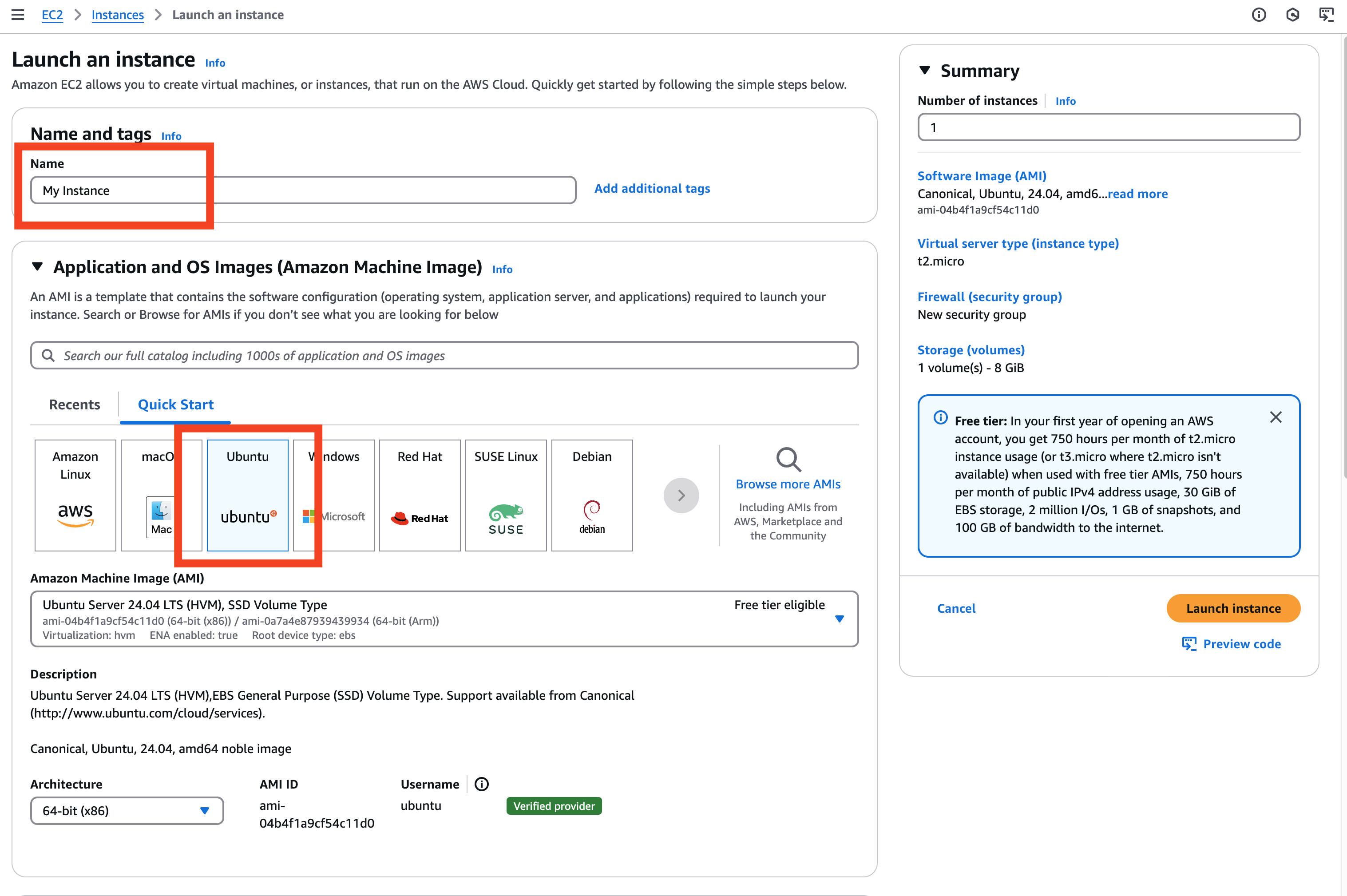

Give you new virtual server a name you will remember, keep it safe for work! Next choose Ubuntu as the operating system you want running in your new virtual server.

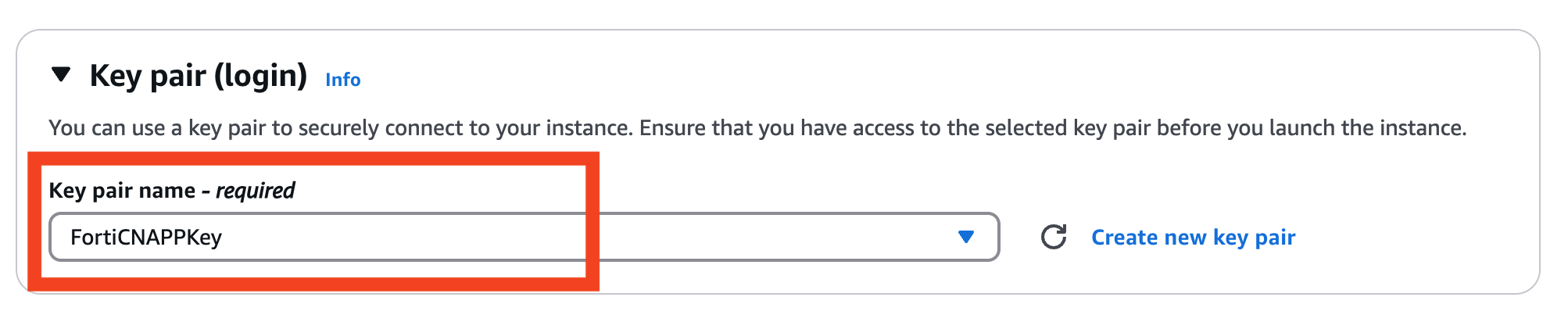

Now we need configure what credentials we will use to access this virtual server once it is up and running. Select FortiCNAPPKey from the drop-down. This key was created by Qwkilabs and can be used within AWS or from you local machine to access your virtual server.

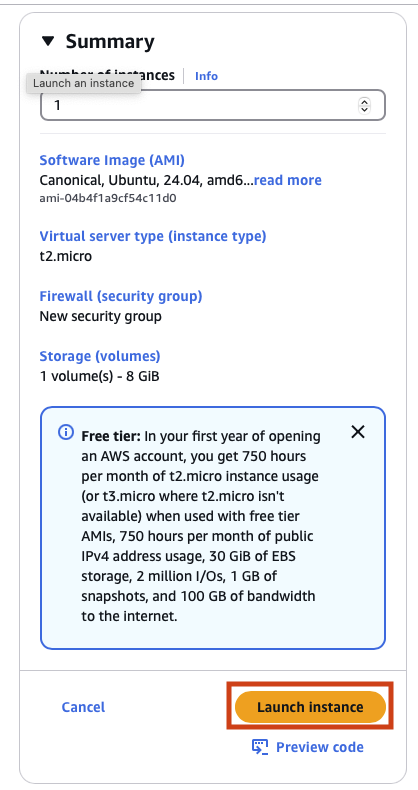

Finally click on Launch Instance to create you brand new virtual server.

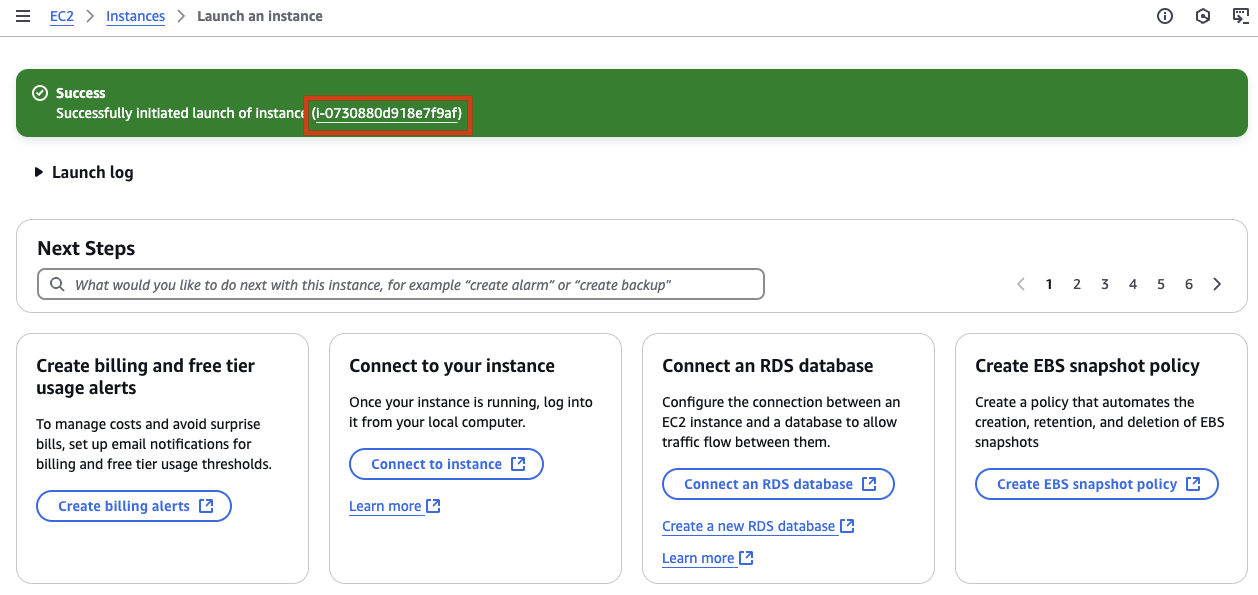

Phew! You now have a brand new virtual server up and running in EC2. Click on the ID for you new virtual server to view more details.

Access your Virtual Server

Next you need to gain access to your new virtual server so you can make it actually do something useful. Developers often connect to servers using a secure shell (SSH). AWS offers a simple way to do this called Instance Connect. Instance Connect will allow you to gain a connection to your new virtual server using your browser. After gaining access you will be able to run commands on the server.

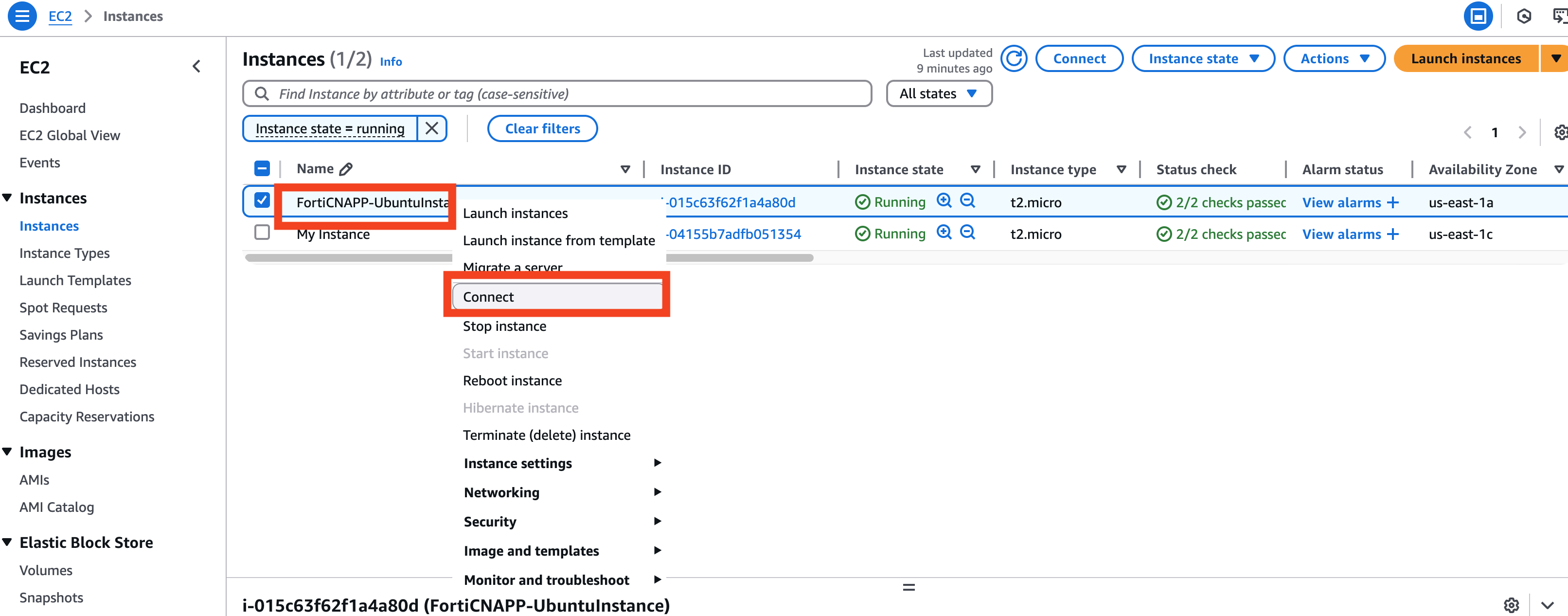

Right-click on the instance name of your new instance and choose Connect.

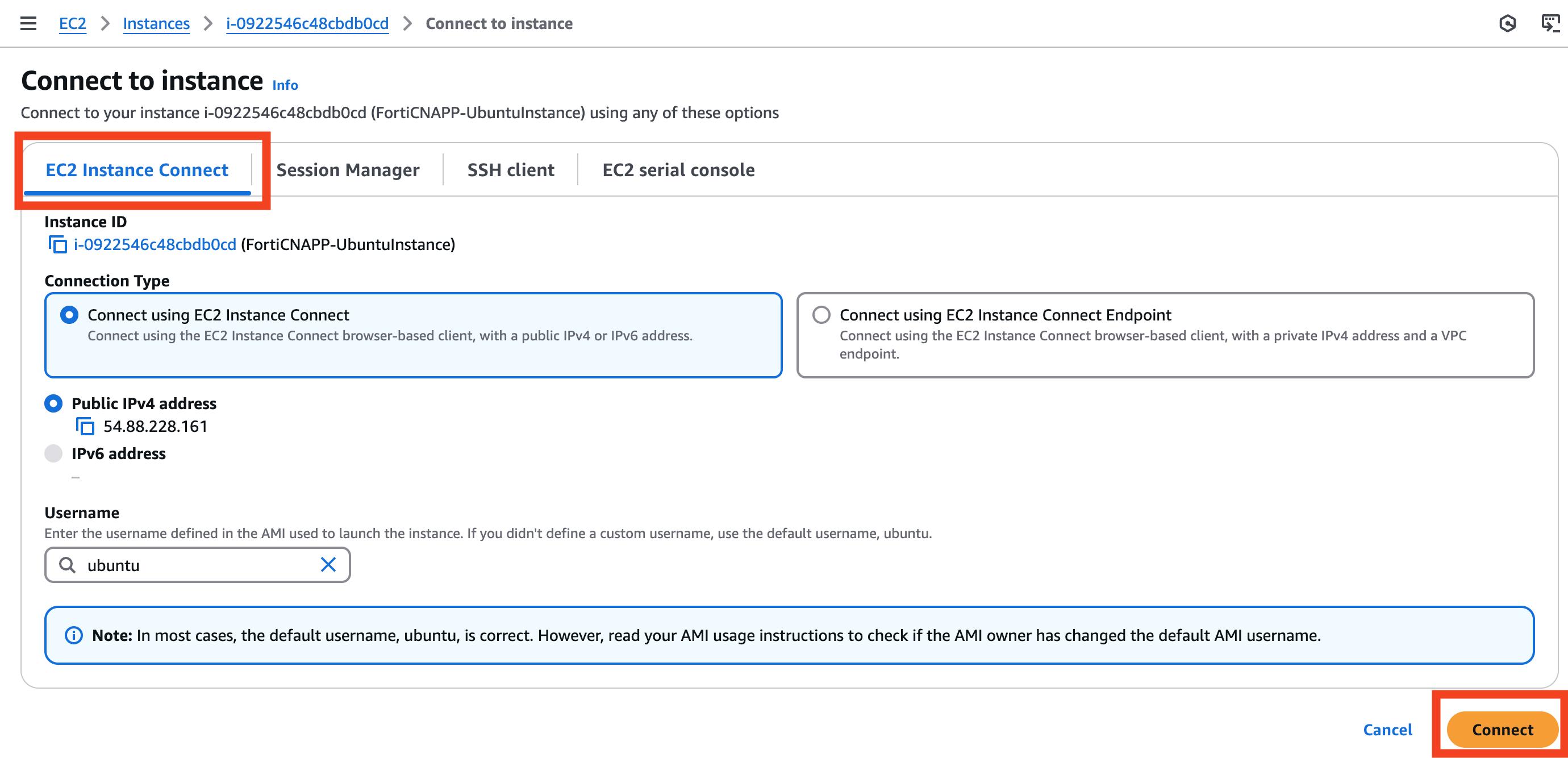

On the Connect to instance window, keep the default option of EC2 Instance Connect and click on Connect

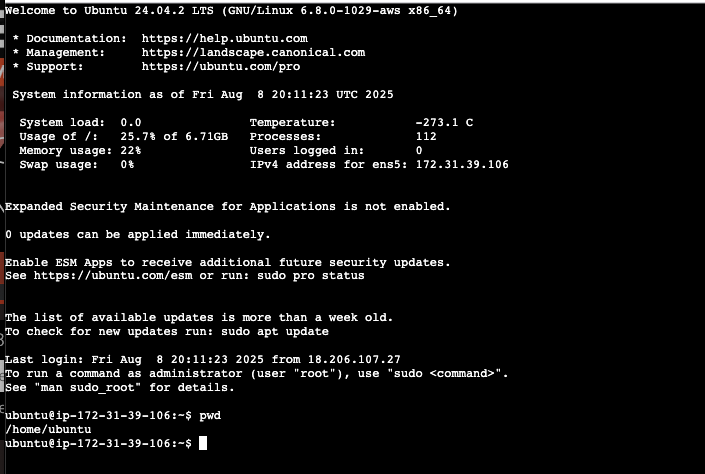

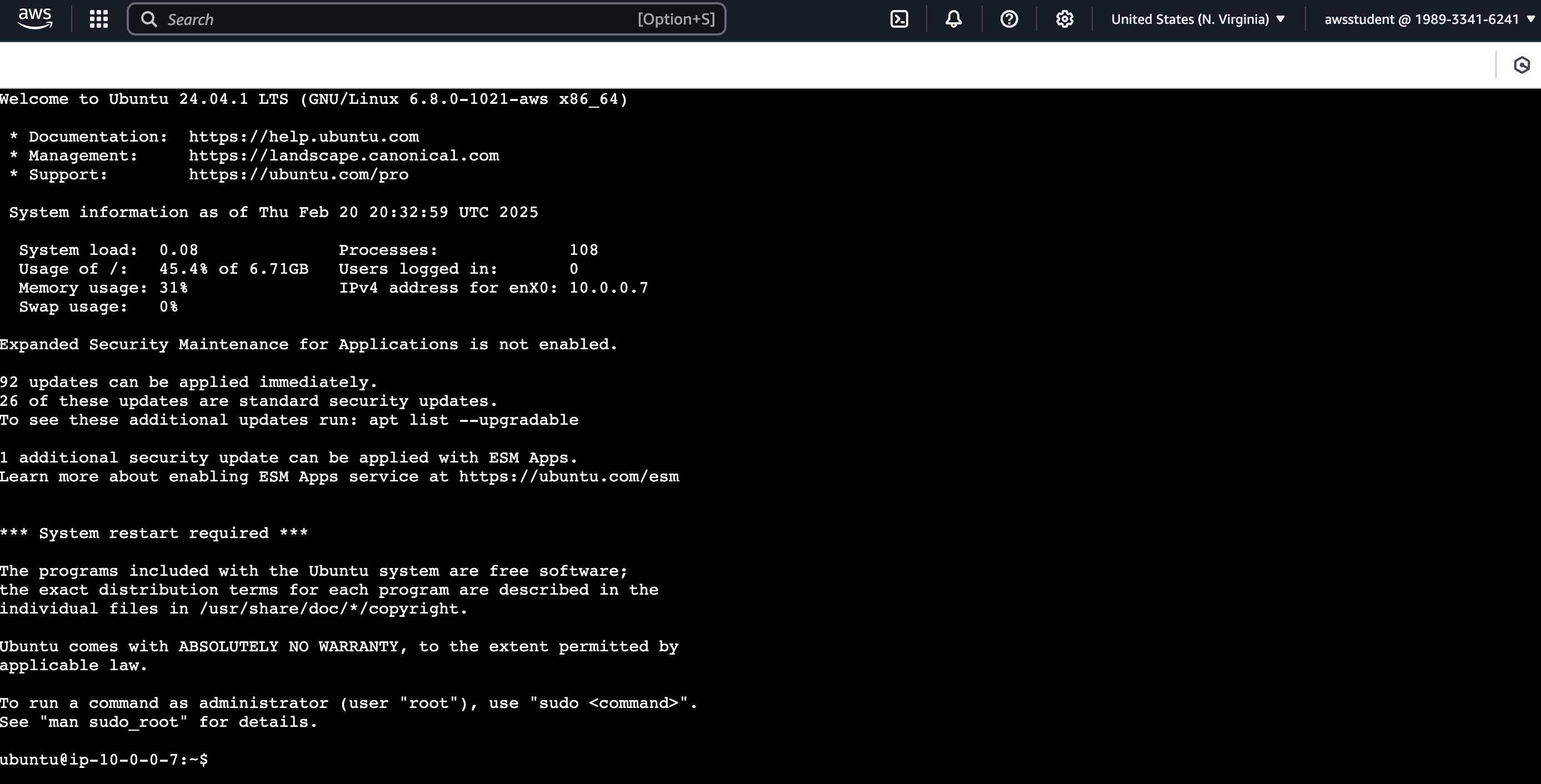

If succesful, you should see a terminal like interface within your AWS Console. Now you are ready to run some commands.

Download the website code

The code for your new website is stored in git repository hosted on GitHub. Git/GitHub allow developers to collaborate together and share code. Almost no modern company develops all of their own code. Developers rely on using many other projects to save time and effort while delivering business value.

The command below will download the code to your virtual server

git clone https://github.com/forticnapp-cloud-lab/hello-world.git

You can confirm that code is on your server by listing all the file us the ls command.

ls hello-world

Make the site your own

Before you start up your new website let’s make a few simple changes. The default message is Hello World!. The is kind of boring. Let’s update that message to something a bit more fun.

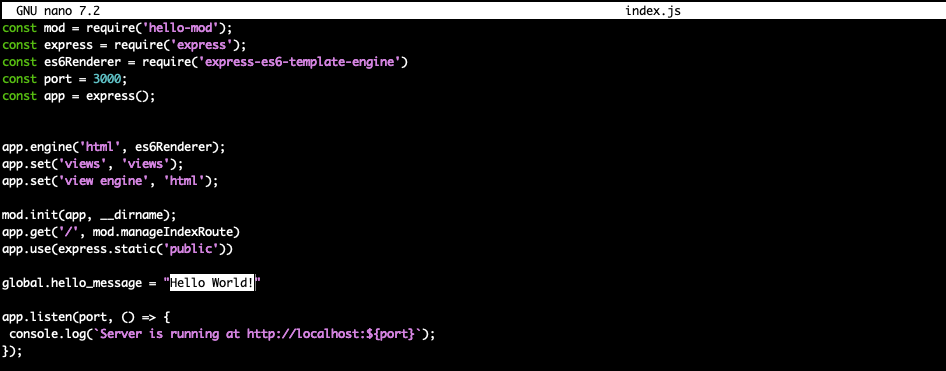

You will be using a program called nano to make this change. Below is the command to start nano opening the index.js file that runs your website.

nano ~/hello-world/index.js

Nano tries to be as user friendly as it can be. You can use your arrow keys to move around, use delete to remove text and type to add text.

Let’s make a change to the website to make it your own. Find Hello World! and replace the text with your own message. You can customize your website even more by replacing IMAGE_URL with a URL for an work safe image you can find on the world wide web.

Once you are done making changes use the control key and o key, followed by enter to confirm the change. Finally control ‘x’ to exit nano.

Install node runtime

Before we can even start up your website you will need to get the Node runtime setup. Node is a more modern version of the browse language JavaScript. Many modern websites and services use Node.

The command below will use the Ubuntu built in package management application (apt) to download NodeJs (the Node runtime) and npm (Node’s own package manager).

sudo apt update && sudo apt install -y nodejs npm

Notice how many files are installed running just these few commands. Hopefully there aren’t any negative side effecs of making all these changes.

Install your website dependencies

As we mentioned all modern software is built on top of other software. Your simple website is no exception. In Node these software dependencies are listed in a file called package.json.

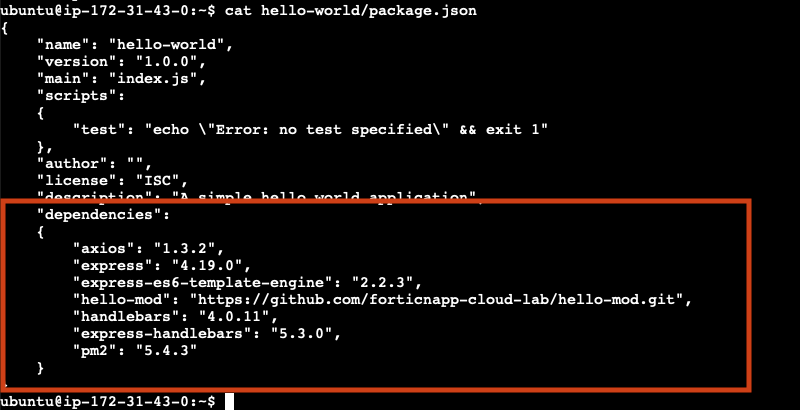

To see your dependencies run this command. The cat command will output the content of a file.

cat hello-world/package.json

Before you can start your website you will need to install these dependencies. Luckily you already installed the Node package manager npm. Run the command below to chagne directory and install the needed Node packages.

cd ~/hello-world
npm install

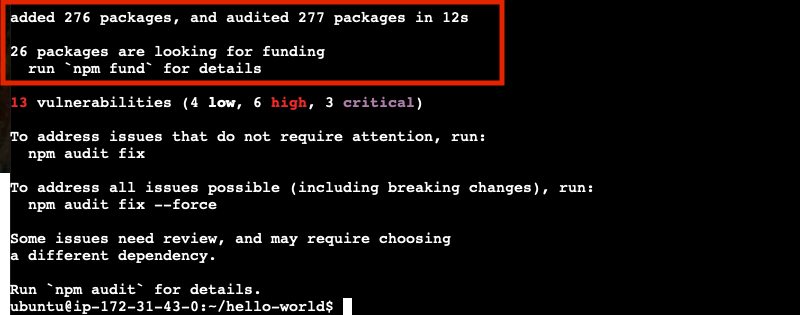

Notice that we only had 4 direct dependencies in our package.json file, but we actually added 229 packages. This is because our direct dependencies have their own dependencies, which in turn might yet more dependencies. Software is built ontop of software. Turtles all the way down.

Even more concerning is the warning that there are 8 vulnerabilities found, including 5 of high severity.

Well no time to worry about all of that, you have a website to get up and running!

Start up your website

To keep your website up and running you will use the pm2 binary installed in the step above using npm. The job of pm2 is to ensure that your website stays up andrunning even if the virtual server gets restarted or your website crashes.

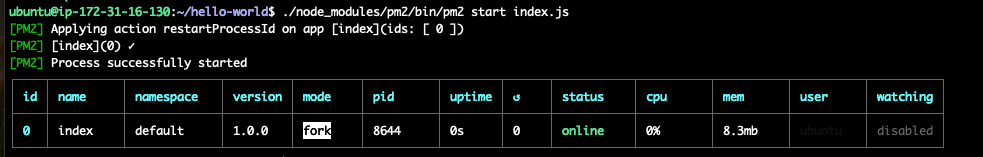

./node_modules/pm2/bin/pm2 start index.js

Access your brand-new website

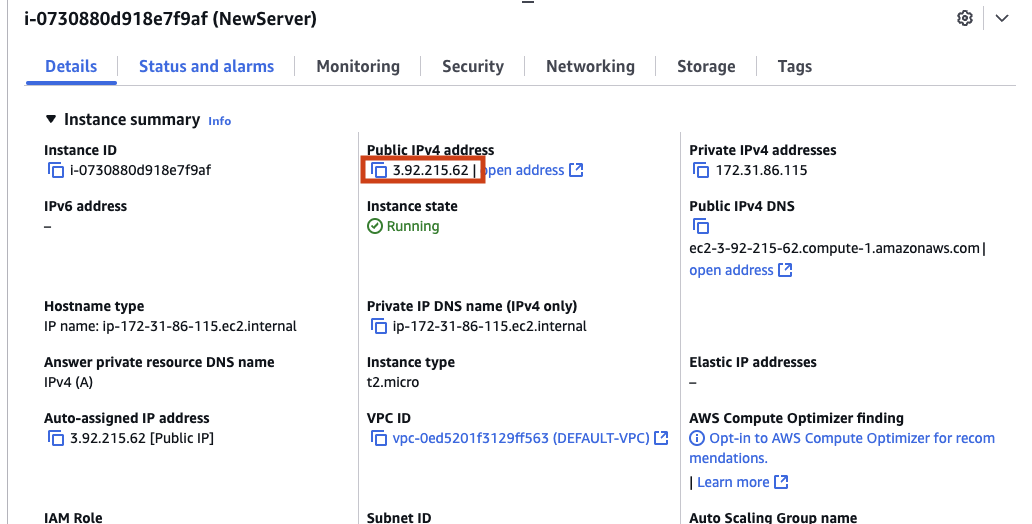

Go back to the AWS EC2 Service, click on your instance. You will find the public IP address of that instance and copy it.

Note: use the copy link and not the ‘open address’ link

You will need to add the port the website is running on 3000.

http://<Your-IP>:3000

Hello is anyone listening?

You might have noticed that when you visited the URL of your newly launched website nothing happened, your browser tab just spun and spun. AWS EC2 be default only allows inbound network connections on port 22, the default port of SSH. Since your website is not running on port 22 all other inbound traffic was blocked. Next task is to open up some ports to allow inbound traffic to reach your virtual server.

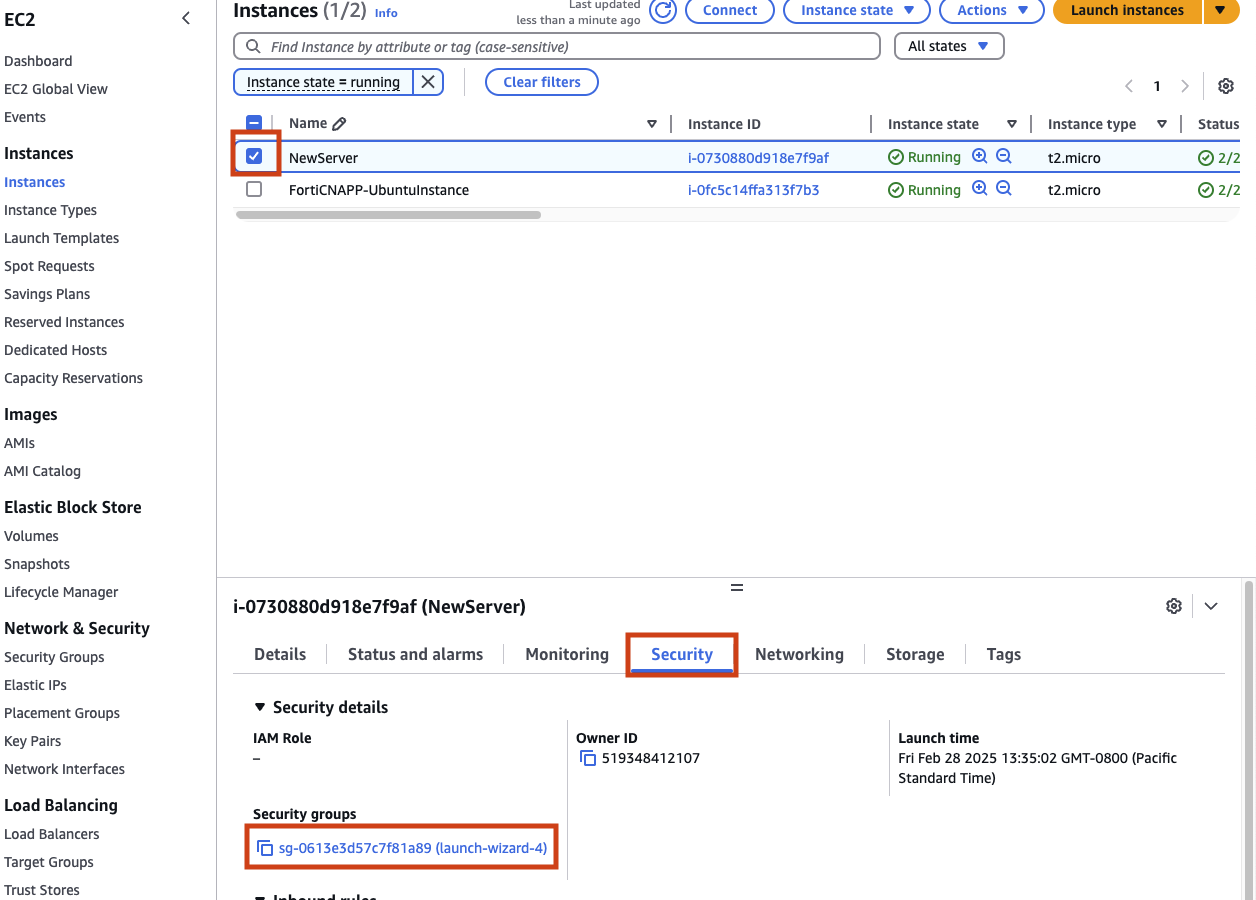

AWS EC2 manages network access via Security Groups. Return to AWS EC2, find you EC2 instance, switch to the Security tab and click on your security group name.

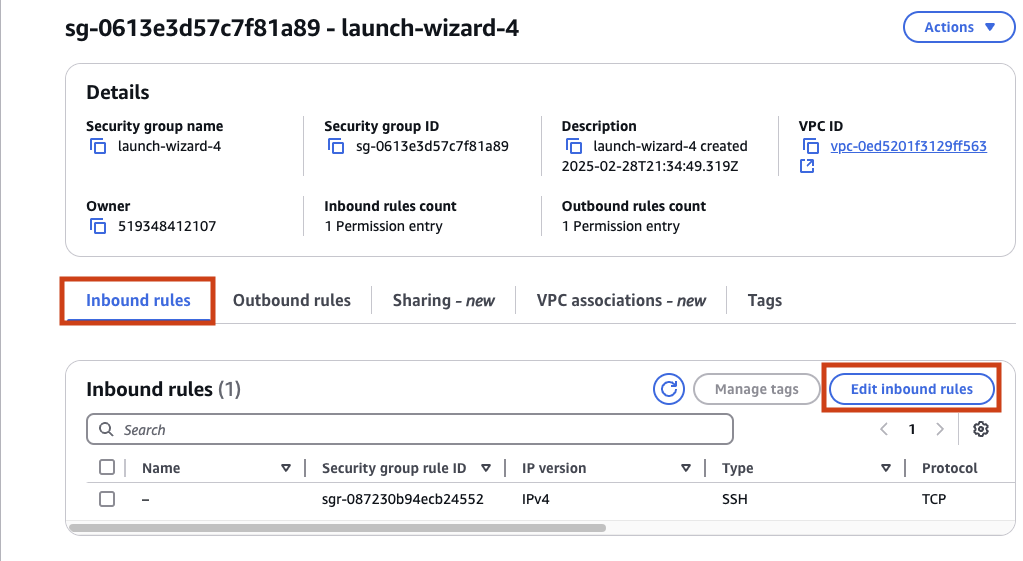

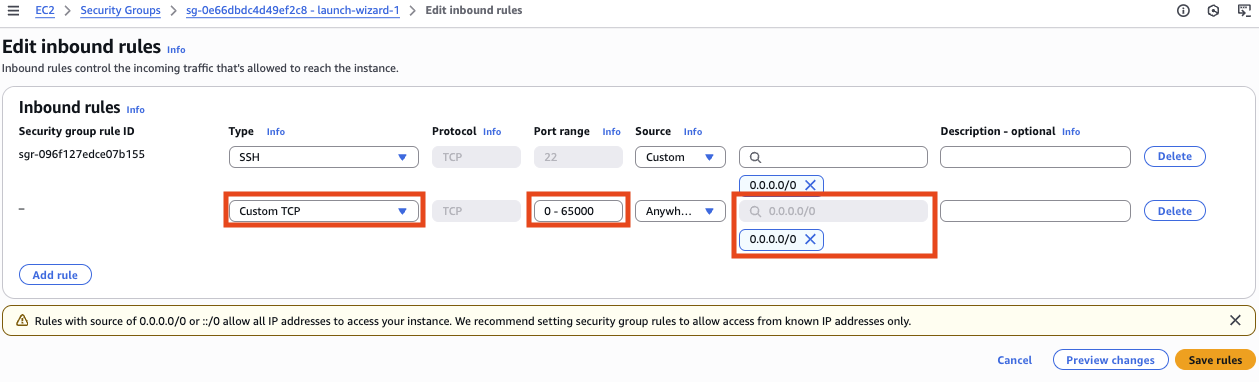

Ensure you are on the Inbound Rules tab and click on Edit inbound rules.

You will need click Add rule to create a new inbound rule. Then specify the Protocol as TCP, Port range of 1000-6000 and ensure anyone on the internet can access by specifying a Source of 0.0.0.0/0.

Notice that we opened up way more ports than we need and AWS warns us about allowing all inbound IP addresses. These are just the type of decisions that are now entrusted to anyone with a cloud account.

Anyway… click Save rules, let’s get this web site up!

Refresh the URl of your website to see if we can get traffic flowing.

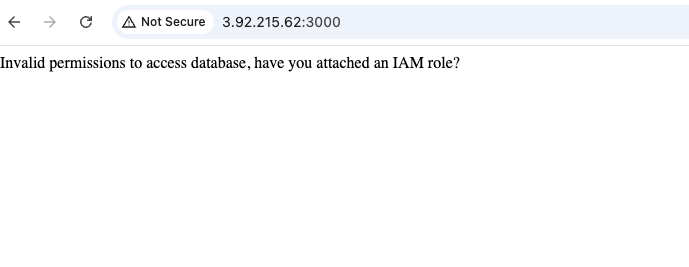

Wait that doesn’t look right

Your new website isn’t showing your fancy message. Rather it is complaining about an IAM role not being attached.

As you might recall from the very beginning we mentioned that your website would need access to a centrally managed database. Access to cloud resources, like databases, is allowed through Identity and Access Management (IAM). IAM has conecpts like roles, policies and permissions that control what can and can’t be accesssed by users and cloud resources.

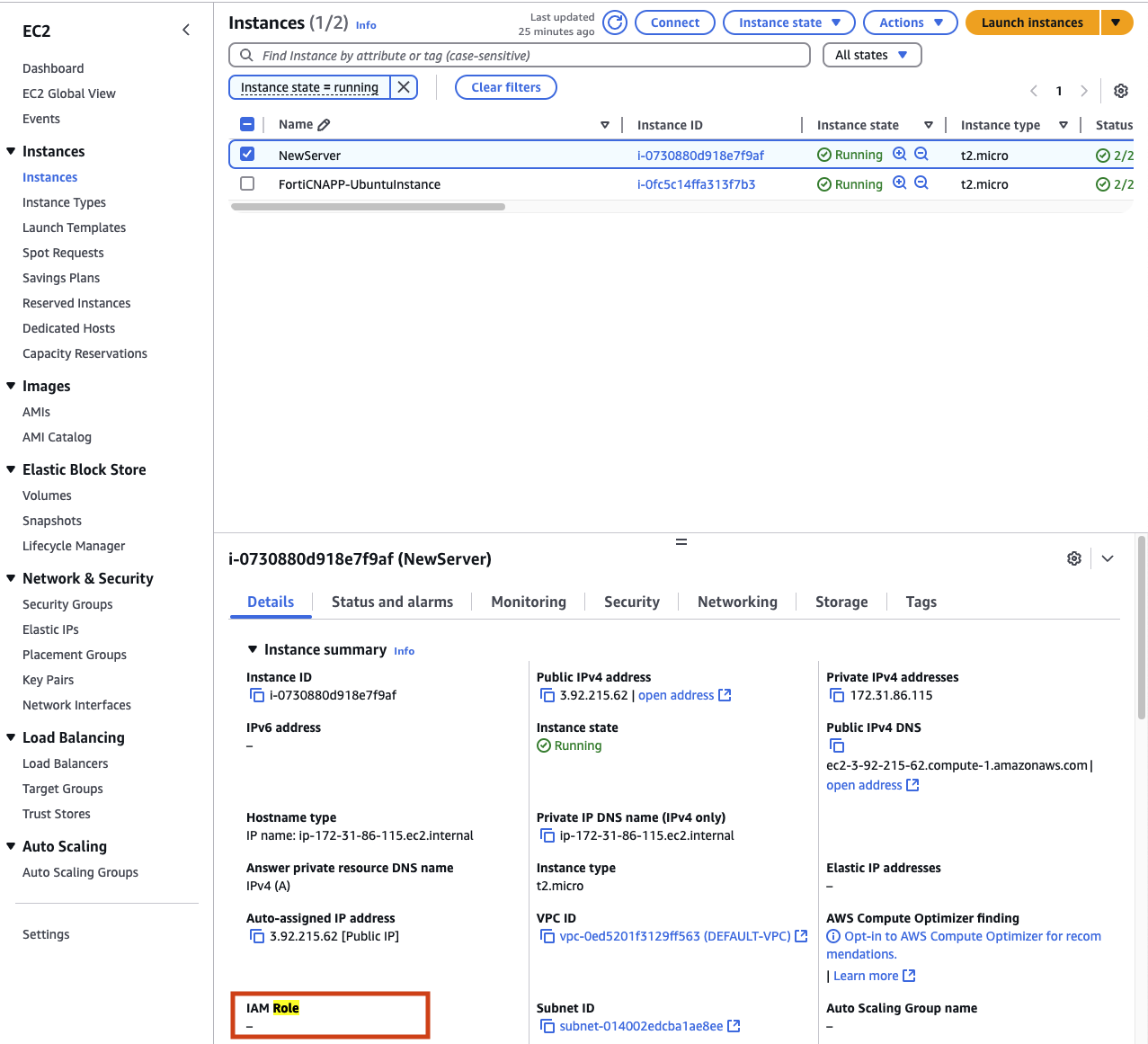

By default when you create a new EC2 instance there is no IAM role attached. This means that your virtual machine can not access any other cloud resources at the moment.

Attach a new IAM role

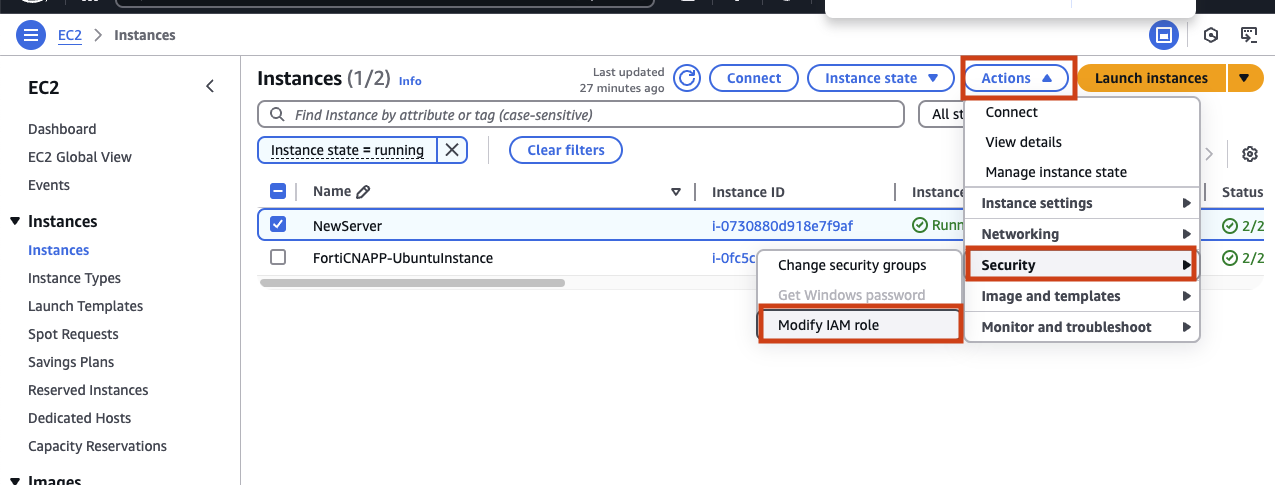

To attach a new IAM role to your virtual server click on Action, then Security and finally Modify IAM role.

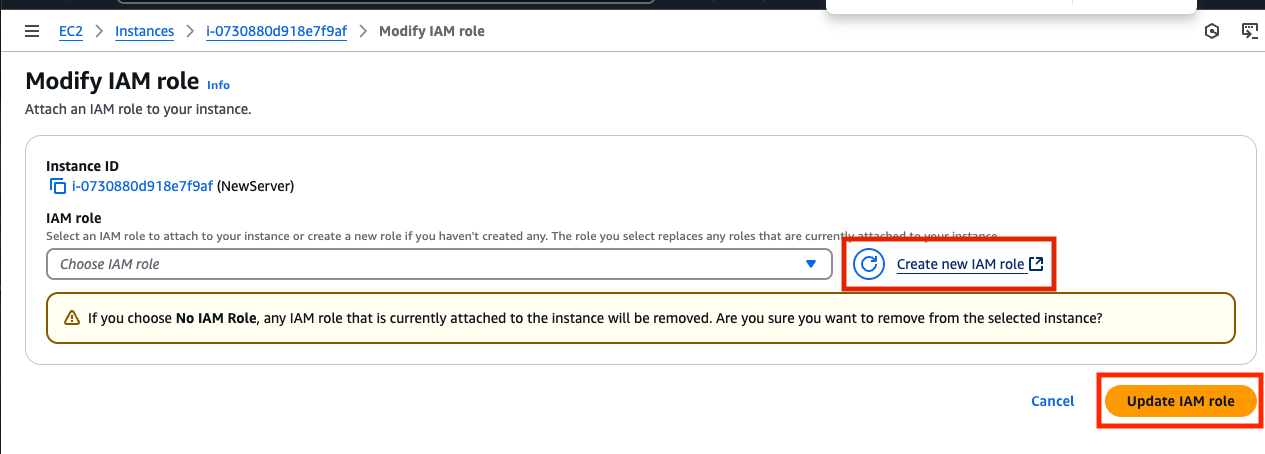

Before you can attach a role you will have to create a new on. Click on Create new IAM role to open a new window in the IAM service page.

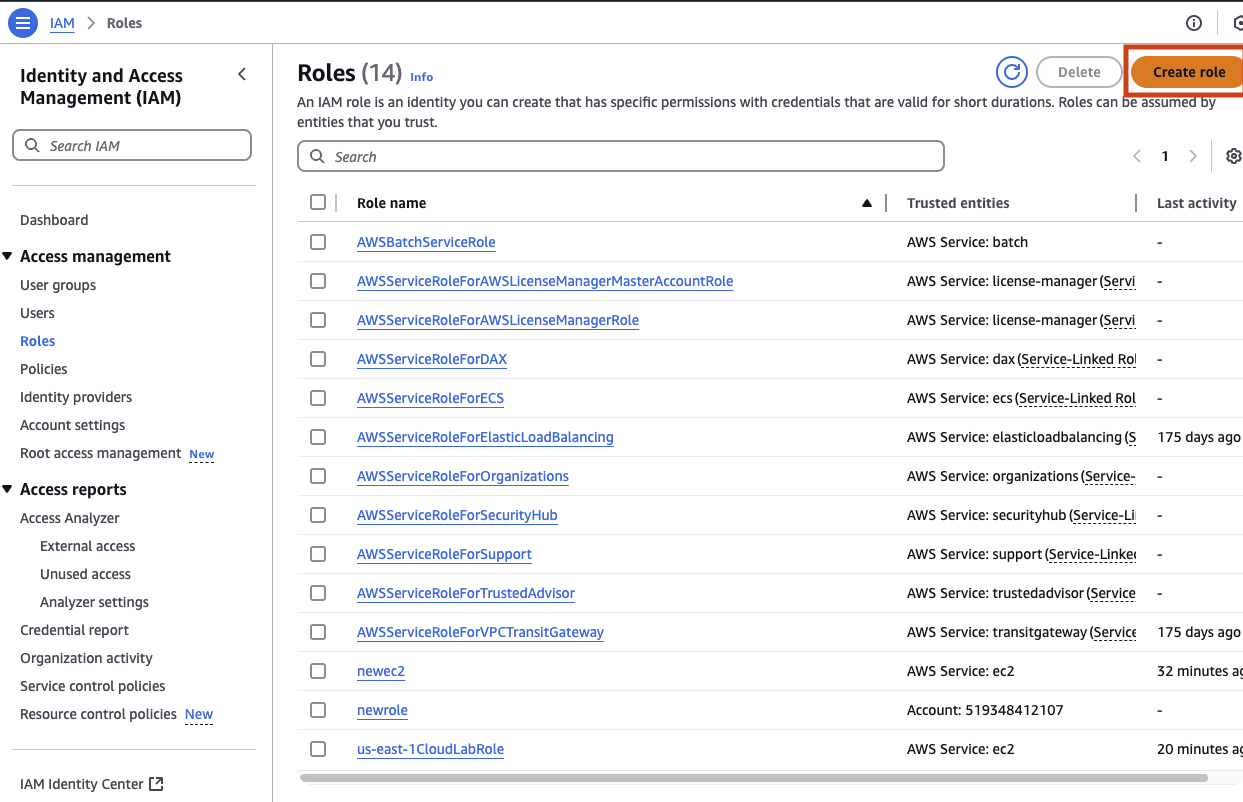

On the IAM Role page you will find a list of all the current roles. You want a new role that can be attached to your virtual machine so click on Create role.

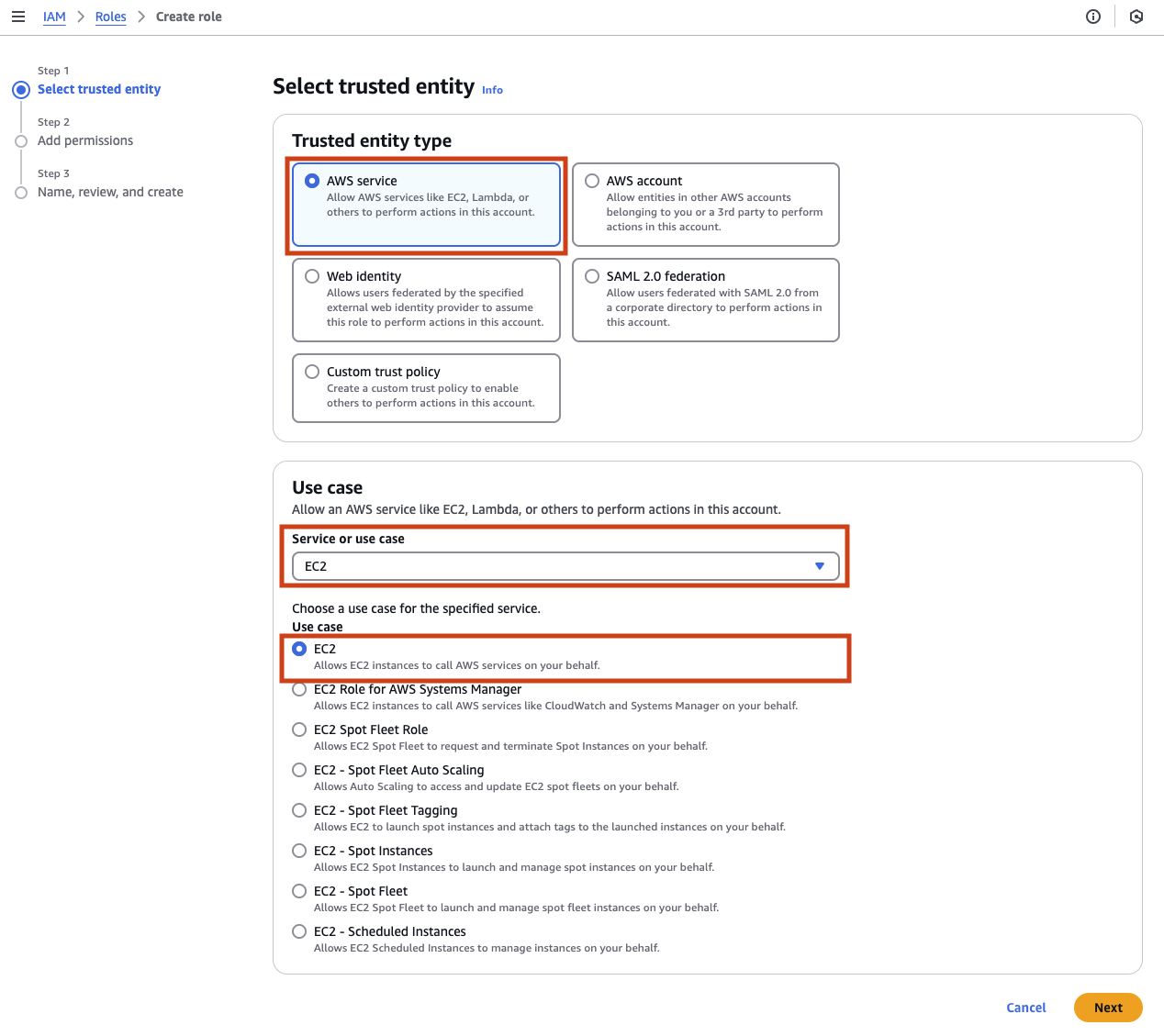

There are a few type of roles you can create select AWS service and then in the Service or use case drop down select EC2. This will allow your to attach this new role to an EC2 virtual server.

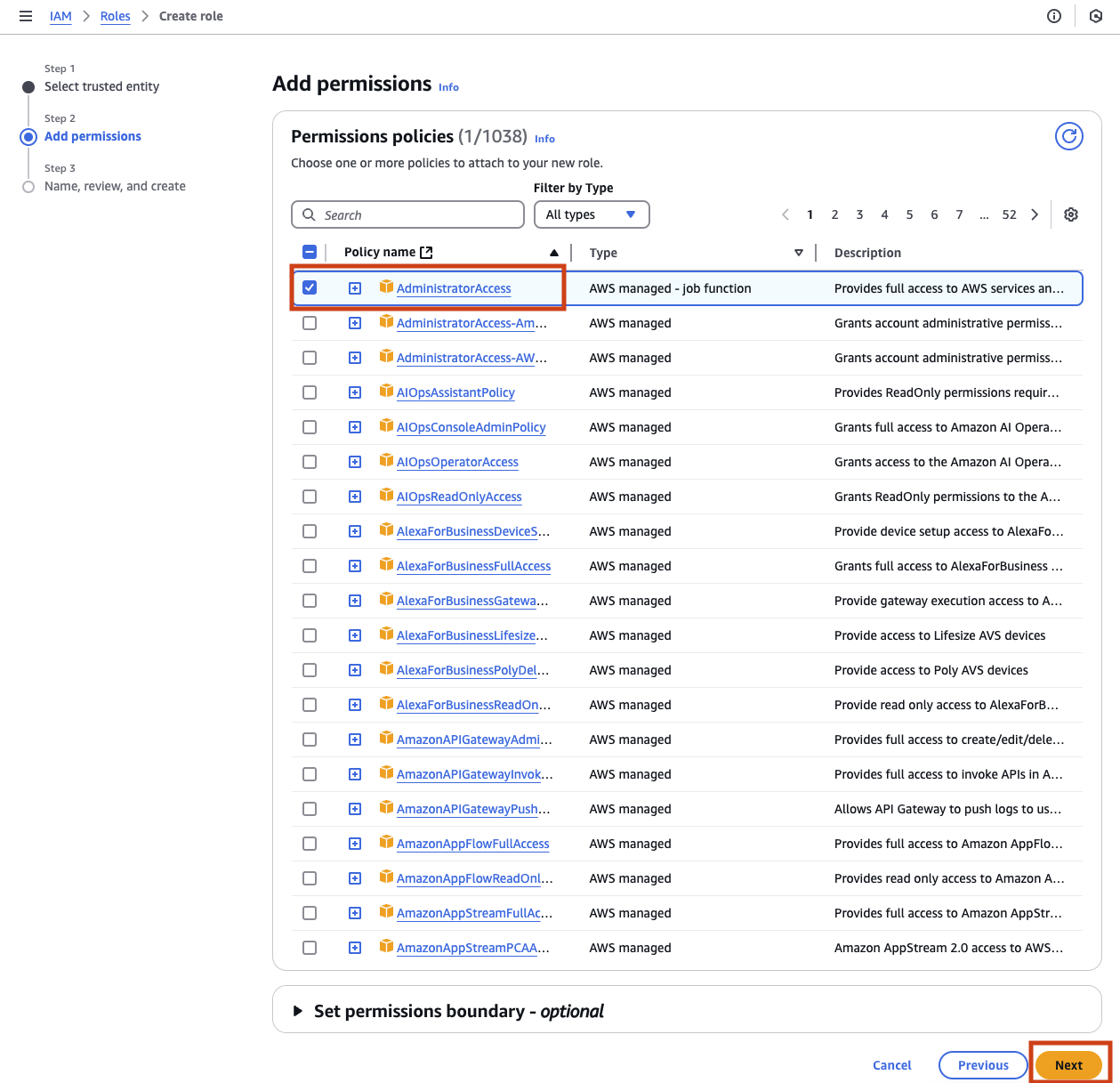

Now comes the time to choose which permissions to grant. Notice that there are over a thousand possible permissions policies you could grant. Rather than go over all of these trying to find the right one, we will take the simple path and grant AdministratorAccess. Choosing the admin role grants more permissions than you need, but ensures that the database access will work. Once again these are just the types of decisions that anyone with a cloud account face everyday.

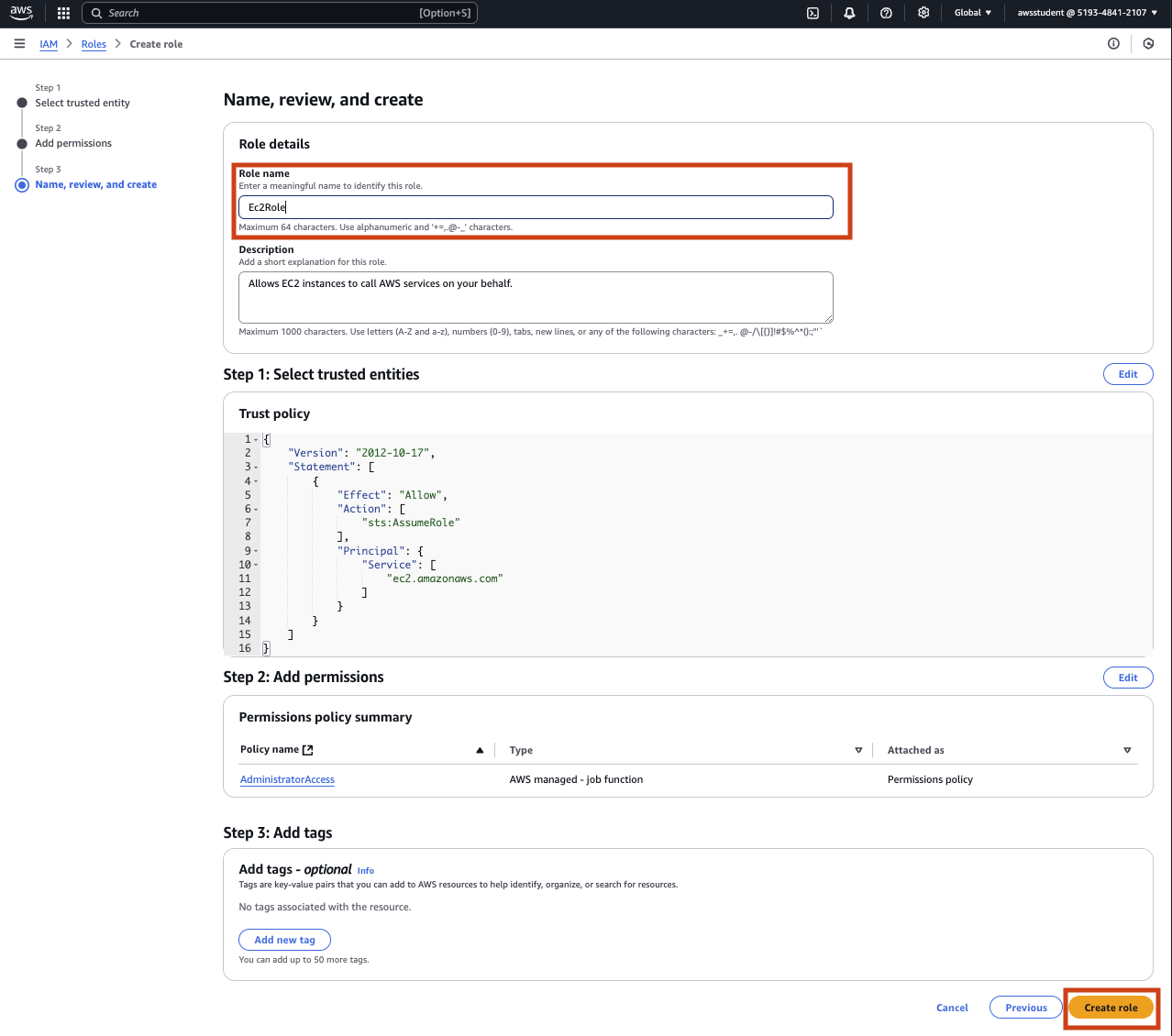

Finally the hardest choice you have made all day. What do you name this new role? Pick something easy to remember and click Create role.

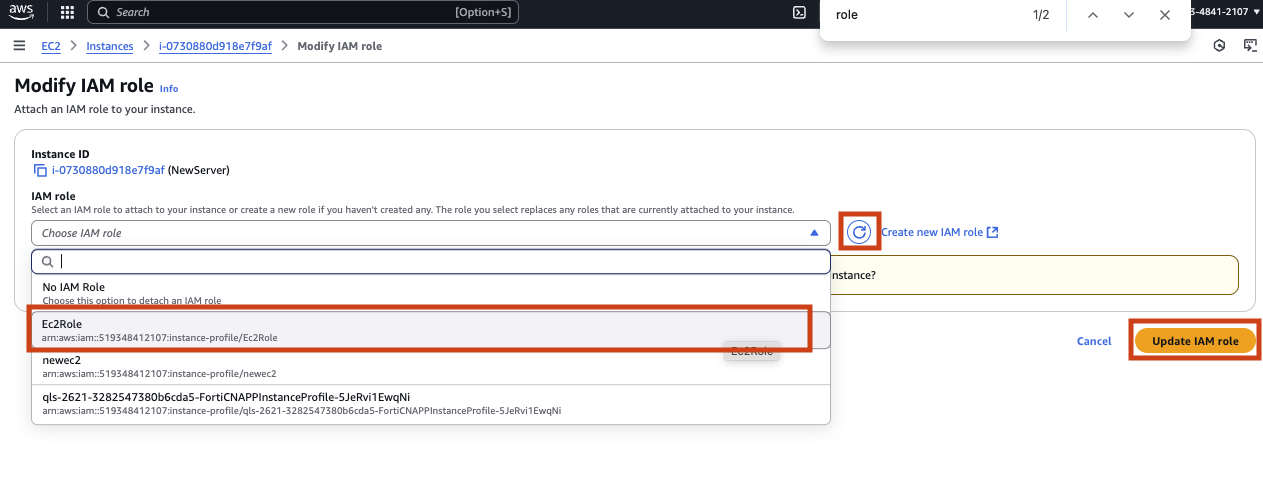

Return to the previous page where you where trying to attache a role. Click the circle icon, select your new role from the drop down and click Update IAM role.

Finally check your website again. Fingers crossed it all worked.

Take moment and recap

Here are the high level steps you took:

• created a new virtual machine
• cloned website code from github
• updated the website code
• installed the Node runtime
• installed node packages via npm
• started the website
• configured the network access
• create a new role and attached it to your virtual machine
• access your wonderful new website

What could go wrong?

Take a break already

Once you complete this section of the lab, please take a break and talk amongst your peers about what you learned, we’ll come together once everyone has finished
