Chapter 1: Architecture Diagrams

Upon completion of this workshop, you will gain understanding of, create, and deploy the following:

  • Azure Services
  • Azure Virtual Network (VNET)
  • FortiGate-VM support for Azure
  • Create an Azure unsecured VNET
  • Deploy a FortiGate-VM to create an Azure secured VNET
  • Configure FortiGate firewall policies to control access to/from the Internet

Azure Reference Architecture Diagrams

  • Azure networking offers multiple ways to organize your Azure architecture to take advantage of FortiGate traffic inspection. Most importantly, traffic must follow a symmetrical routing path (for forward and reverse flows). As long as flows are symmetrical, the architecture will work and traffic will flow through a FortiGate NGFW for inspection.

  • You will deploy and configure the following two architectures:

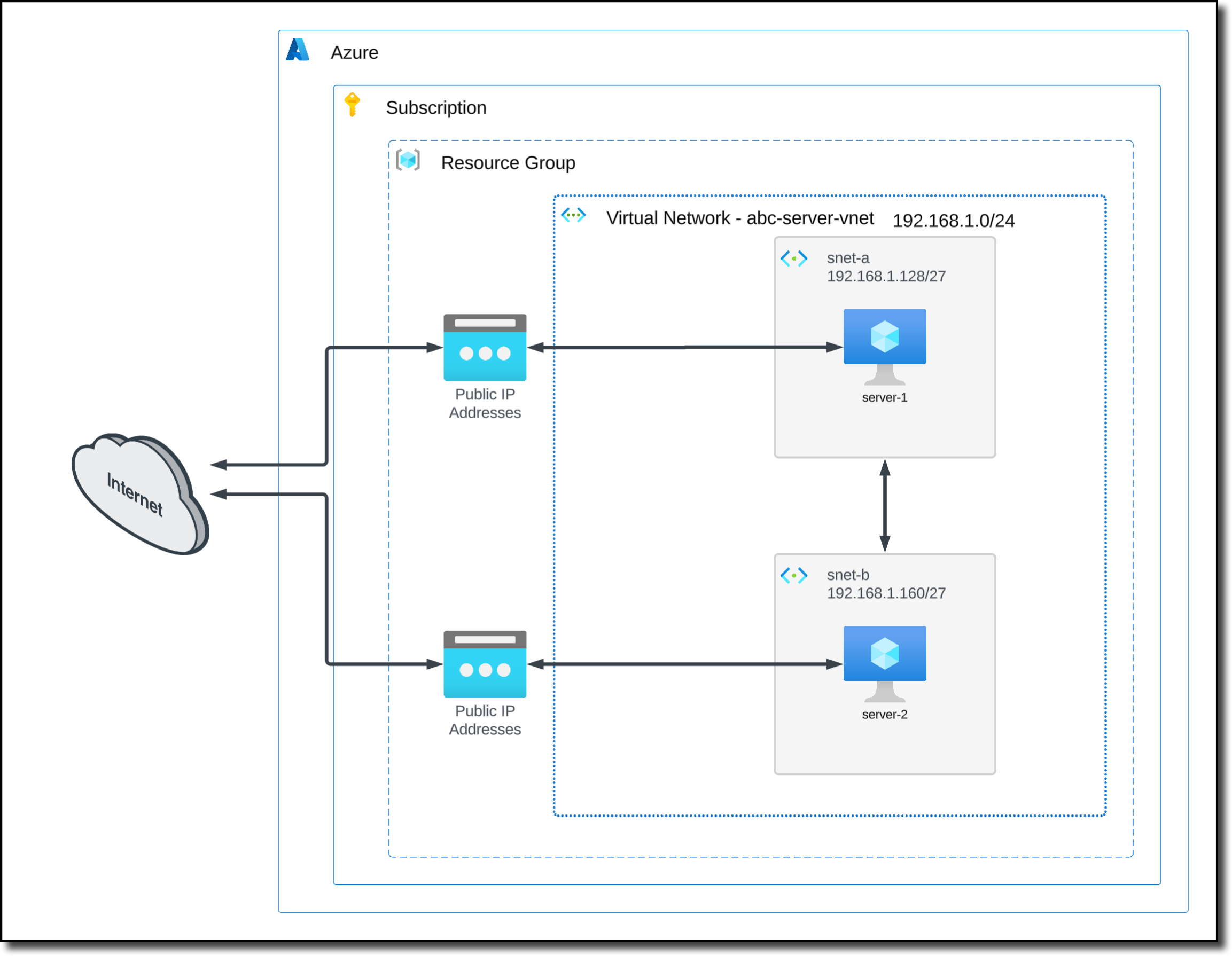

    • Single VNET without a FortiGate NVA - Unsecured VNET

    Azure-Unsecured-VNET1 Azure-Unsecured-VNET1

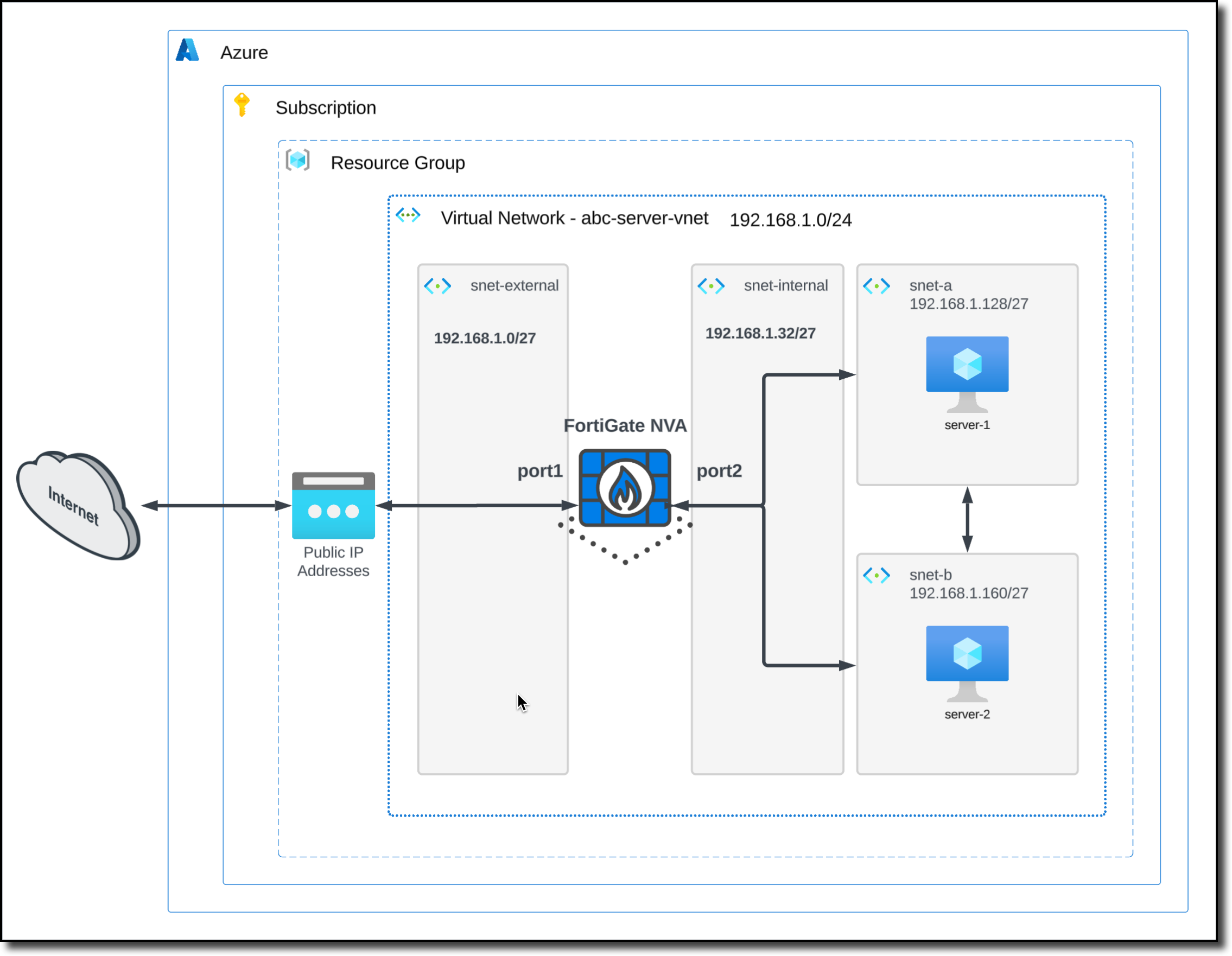

    • Single VNET with a FortiGate NVA - Secured VNET

    Azure-Secured-VNET Azure-Secured-VNET

Continue to Chapter 2: Azure Fundamentals
