Task 3: Identify VM Information and Unsecured Services

Login to Linux VM Serial Console

Now that both Linux virtual machines, linux-a-vm and linux-b-vm, have been deployed, you are going to identify their assigned private and public IP (PIP) addresses, confirm which ports are open on each VM, and what access is available to and from their assigned subnets.

In the following steps 1-6, you will navigate and identify IP information for both VMs and login to each VM via the serial console, in Azure.

Tip

Access the serial console of each virtual machine in different browser tabs.

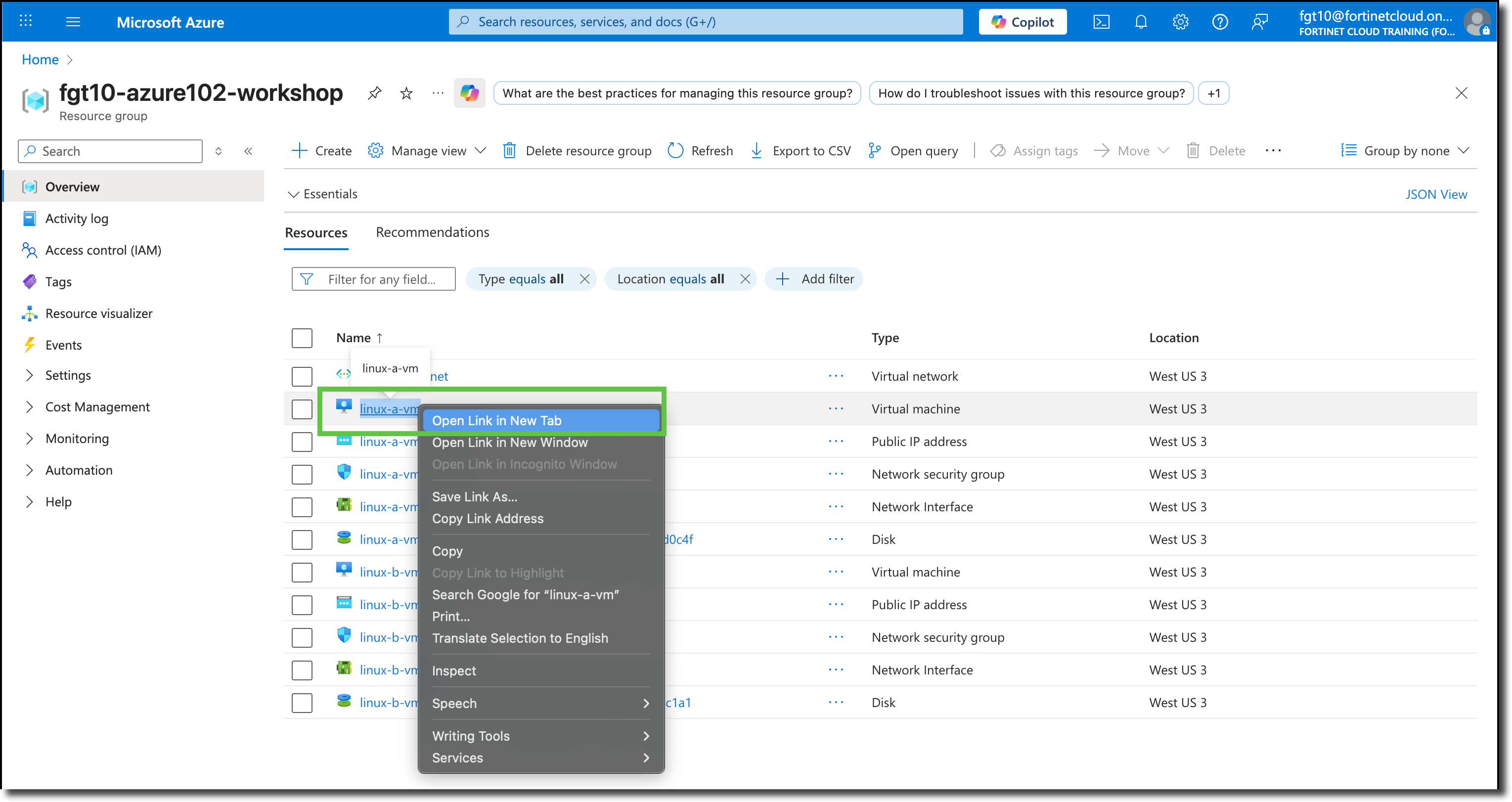

  1. Navigate to your Resource Group

  2. Right Click on the virtual machine linux-a-vm

  3. Select “Open Link in New Tab”

    azure-identify-pip-access-1

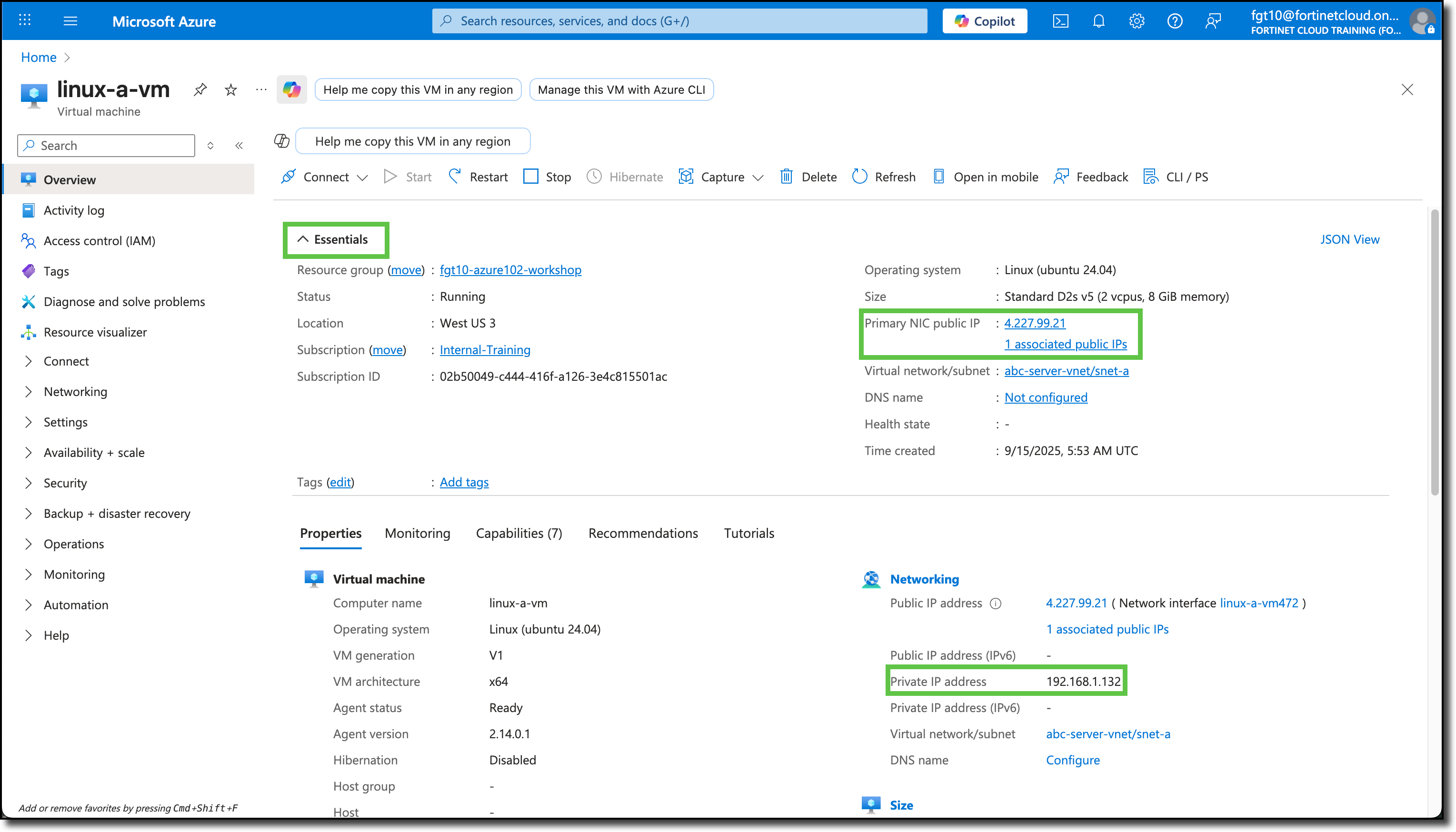

    The browser tab will open to the linux-a-vm Overview page, under the Essentials and Properties sections, right-hand side, identify the assigned private and public IP of linux-a-vm

    azure-identify-pip-access-2

  4. Navigate to the bottom of the left-side menu

  5. Expand “Help”

  6. Select “Serial console”

  7. Login to the linux-a-vm console using the credentials used when creating the linux-a-vm.

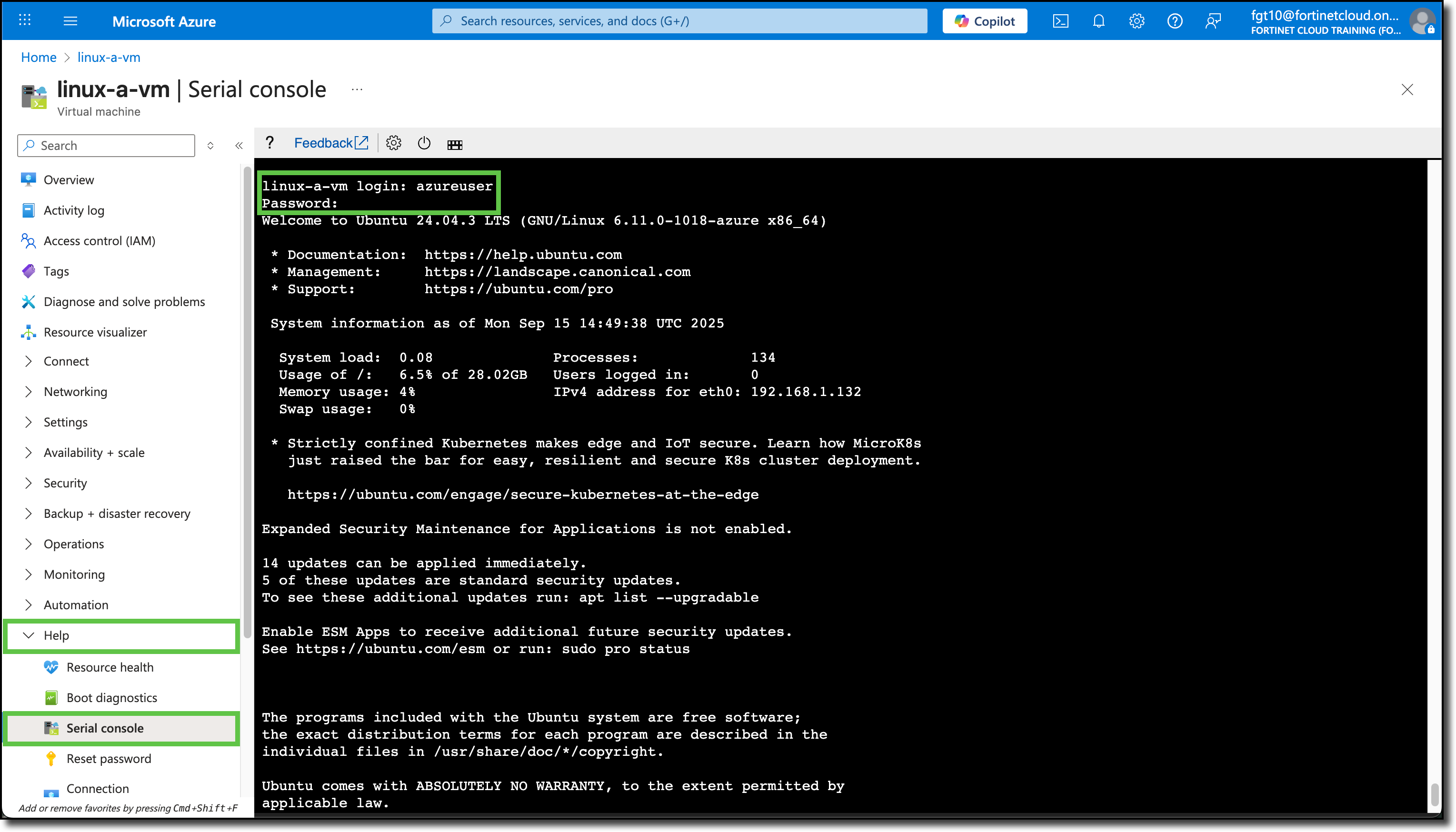

    azure-identify-pip-access-3

  8. Repeat the same process to login to the serial console of **linux-b-vm-in another tab

The VNET security policy for company ABC is as follows

linux-a-vm will be the management server. Per company ABC security policy:

  • linux-a-vm should only have SSH and PING access to linux-b-vm
  • linux-a-vm should have HTTP/HTTPS access to the Internet
  • linux-a-vm should be SSH accessible from the Internet

linux-b-vm is the www server. Per company ABC security policy:

  • linux-b-vm should be HTTP accessible from the Internet
  • linux-b-vm should have HTTP and HTTPS access to the Internet
  • linux-b-vm should only have PING access to linux-a-vm

The goals of the following steps, are to note:

  • Which service ports are open and listening on each VM
  • What access does each VM have across subnets
  • Which services to and from the Internet are available to each VM

Using this information, we can implement company ABC’s security policies when securing the VNET with a FortiGate

Configure linux-b-vm first

Tip

Use the linux clear command to clear the screen

  1. Verify Connectivity and Services

    Note

    These commands are completed from the linux-b-vm

    • Use ping www.yahoo.com
      • confirms DNS and ICMP access to the Internet: (CTRL+c to stop ping)
    • Use wget www.fortinet.com
      • confirms port 80 access to the Internet: (Confirm “200 OK” response)
    • Use curl https://ipinfo.io/ip && echo " linux-b-vm's PIP"
      • confirms port 443 access to the Internet
      • confirms Public IP assigned to linux-b-vm: (Verify against what the Azure portal listed in the Overview section for this VM)

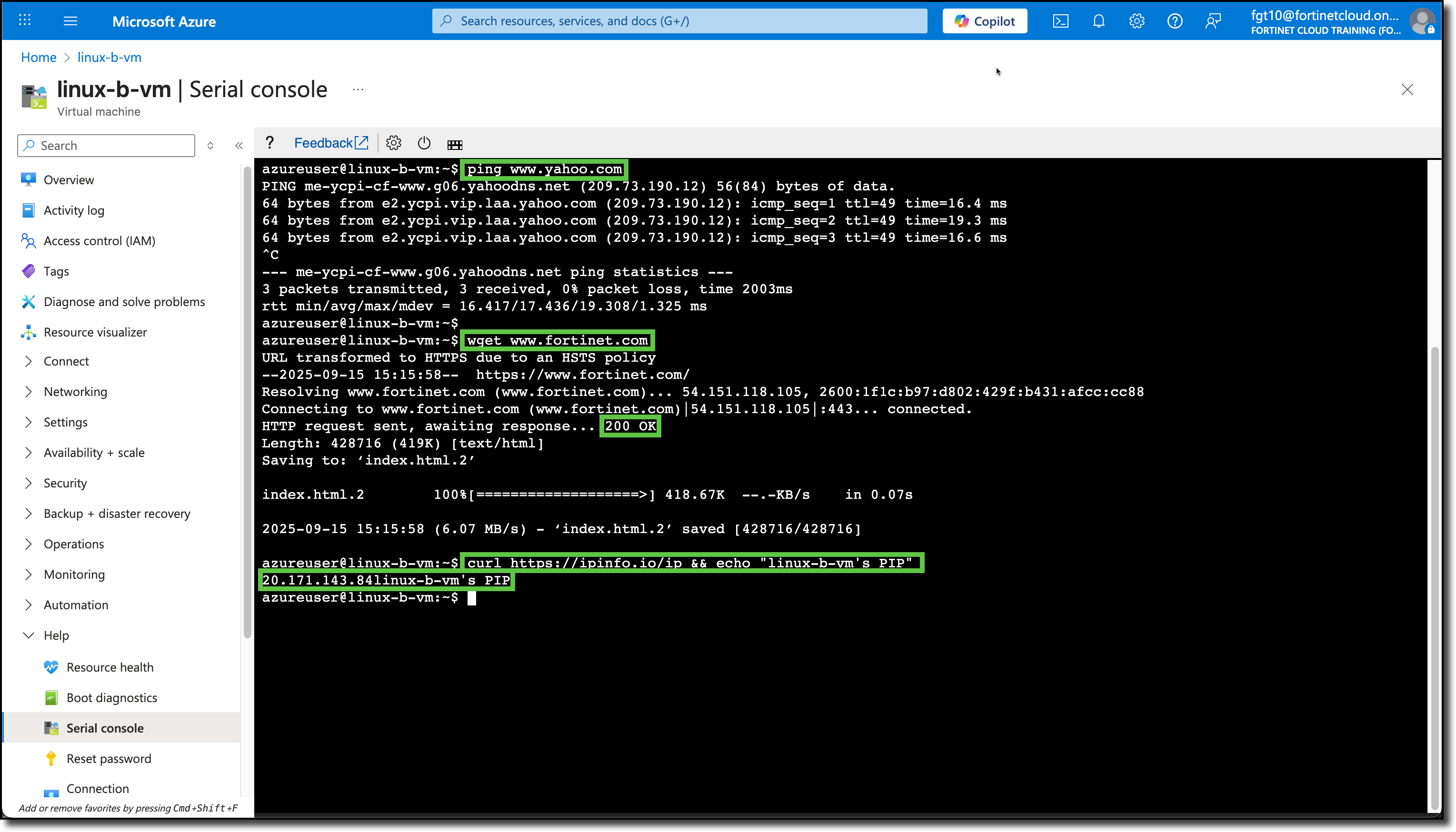

    azure-identify-pip-access-4

    • Check for and install Ubuntu updates

      • sudo apt update
      • sudo apt -y upgrade
      • clear after updates have finished

    • Ping the private IP of linux-a-vm

      • ping 192.168.1.xxx (Refer to previous steps for Private IP)

    • Install NMAP Scan open ports on linux-a-vm

      • sudo apt -y install nmap
      • nmap -F 192.168.1.xxx (Refer to previous steps for Private IP)
      • Note the open port(s) on linux-a-vm

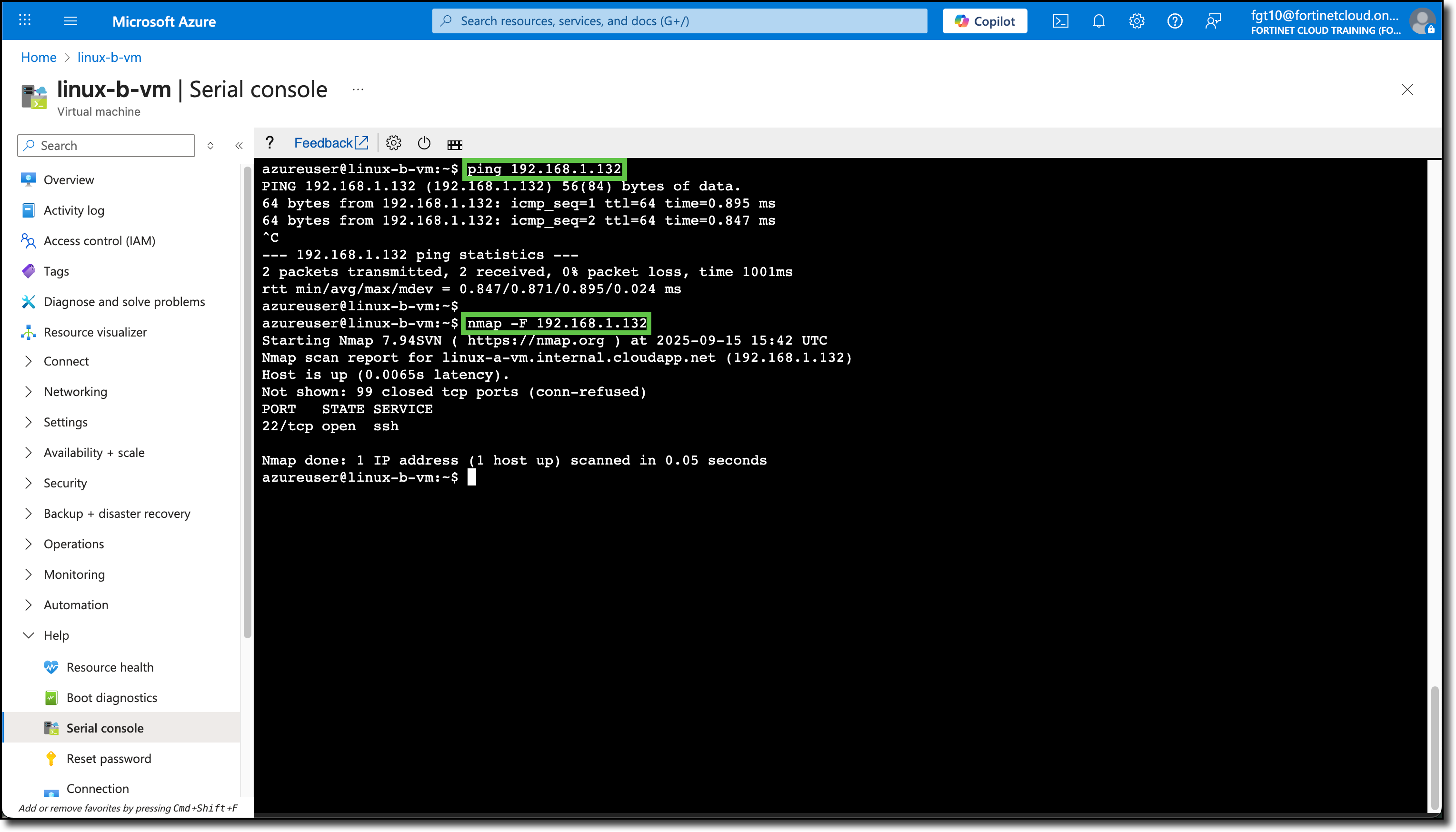

    azure-identify-pip-access-5
    • Confirm SSH access to linux-a-vm:
      • ssh azureuser@192.168.1.xxx (Refer to previous steps for Private IP)
      • Use sudo ss -ltn to confirm the same open ports that NMAP reported
      • Use exit to disconnect from linux-a-vm

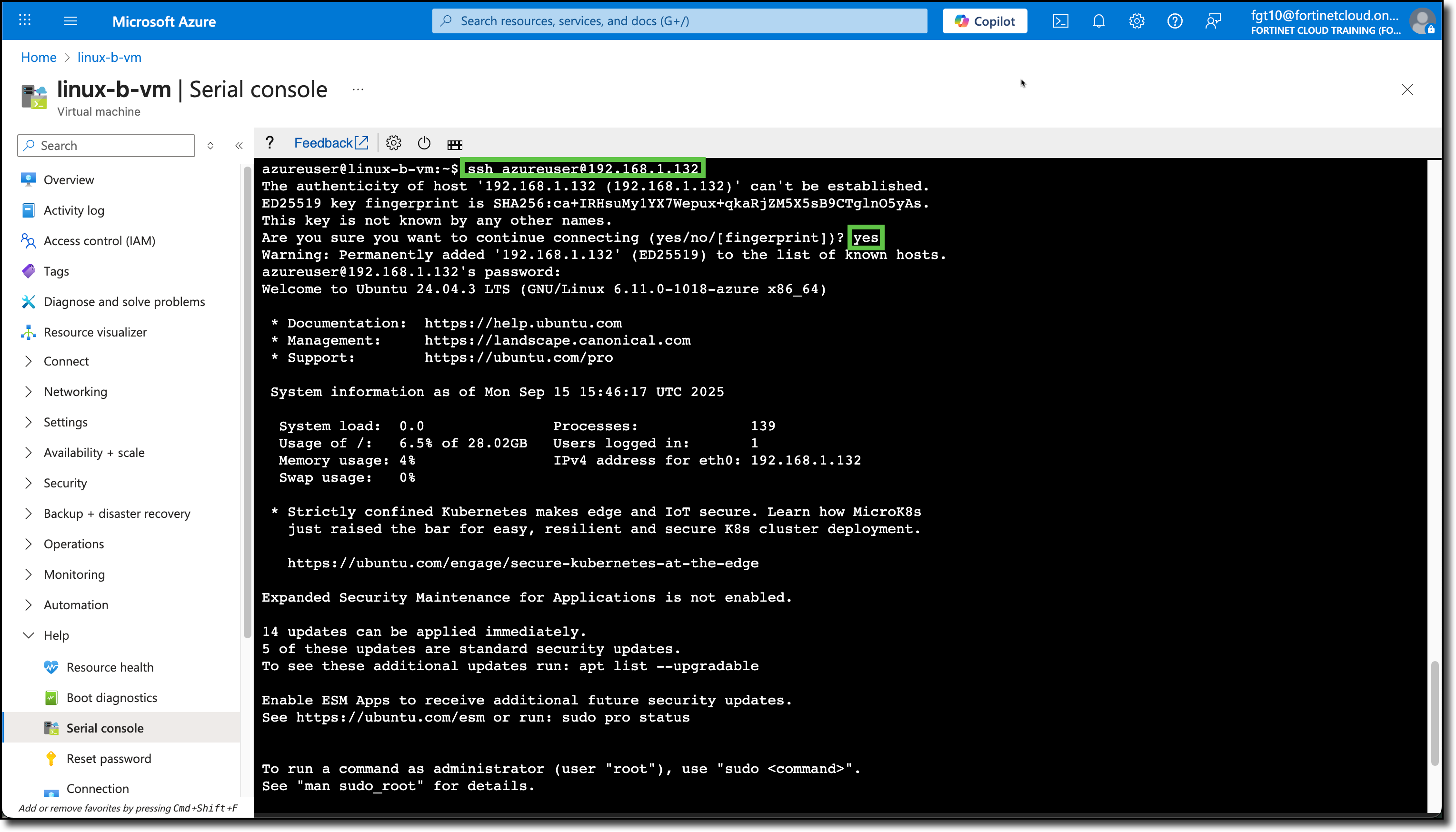

    azure-identify-pip-access-6

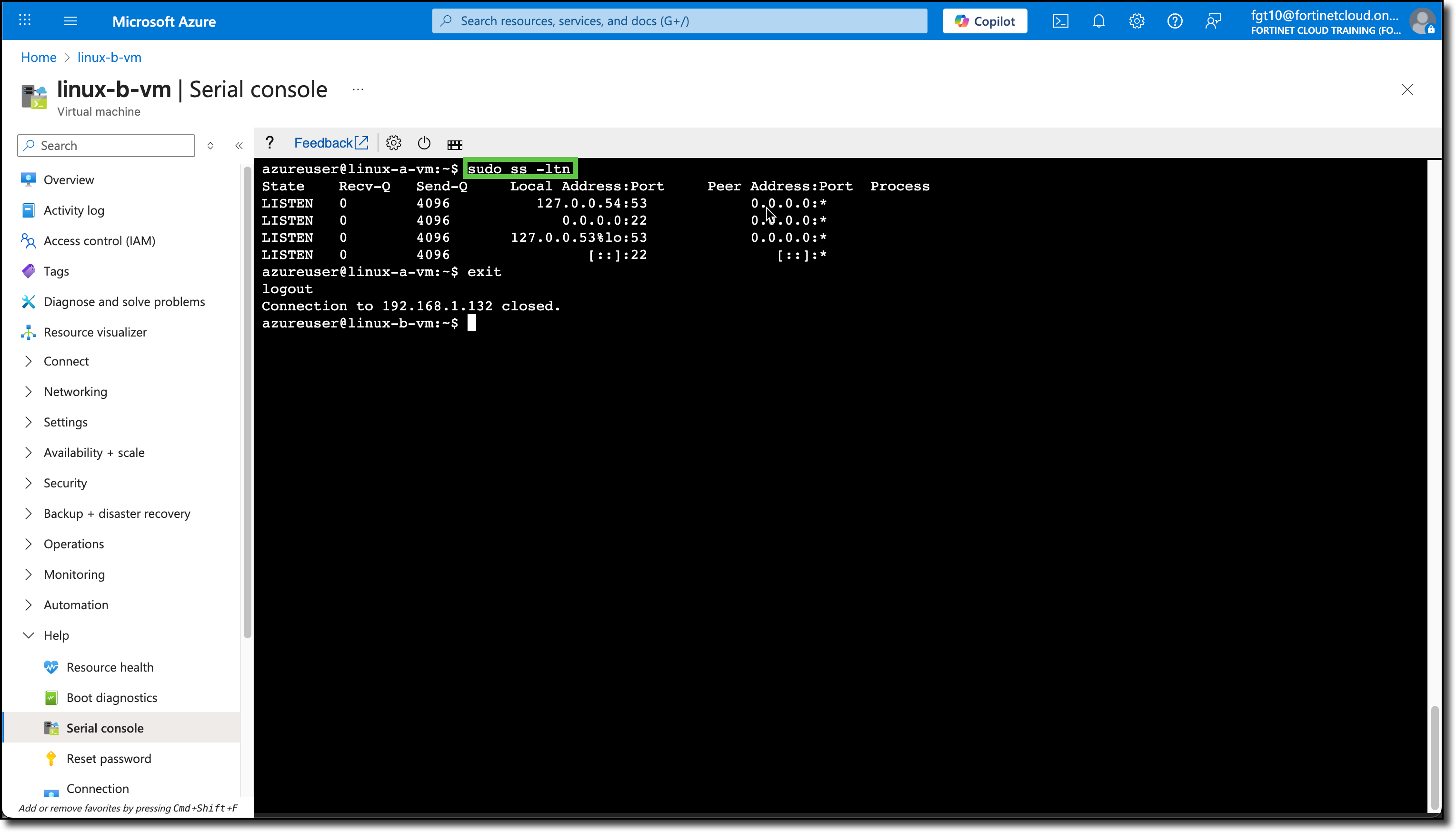

    azure-identify-pip-access-7

    • Install the web service NGINX
      • sudo apt -y install nginx

Configure linux-a-vm second

Note

These commands are completed from the linux-a-vm

  • Use ping www.yahoo.com

    • confirms DNS and ICMP access to the Internet: (CTRL+c to stop ping)

  • Use wget www.fortinet.com

    • confirms port 80 access to the Internet: (Confirm “200 OK” response)

  • Use curl https://ipinfo.io/ip && echo " linux-a-vm's PIP"

    • confirms port 443 access to the Internet
    • confirms Public IP assigned to linux-a-vm: (Verify against what the Azure portal listed in the Overview section for this VM)

  • Check for and install Ubuntu updates

    • sudo apt update
    • sudo apt -y upgrade
    • clear after updates have finished

  • Ping the private IP of linux-b-vm

    • ping 192.168.1.xxx (Refer to previous steps for Private IP)

  • Install NMAP Scan open ports on linux-b-vm

    • sudo apt -y install nmap
    • nmap -F 192.168.1.xxx (Refer to previous steps for Private IP)
    • Note the open port(s) on linux-a-vm

  • Confirm SSH access to linux-b-vm:

    • ssh azureuser@192.168.1.xxx (Refer to previous steps for Private IP)
    • Use sudo ss -ltn to confirm the same open ports that NMAP reported
    • Use exit to disconnect from linux-b-vm

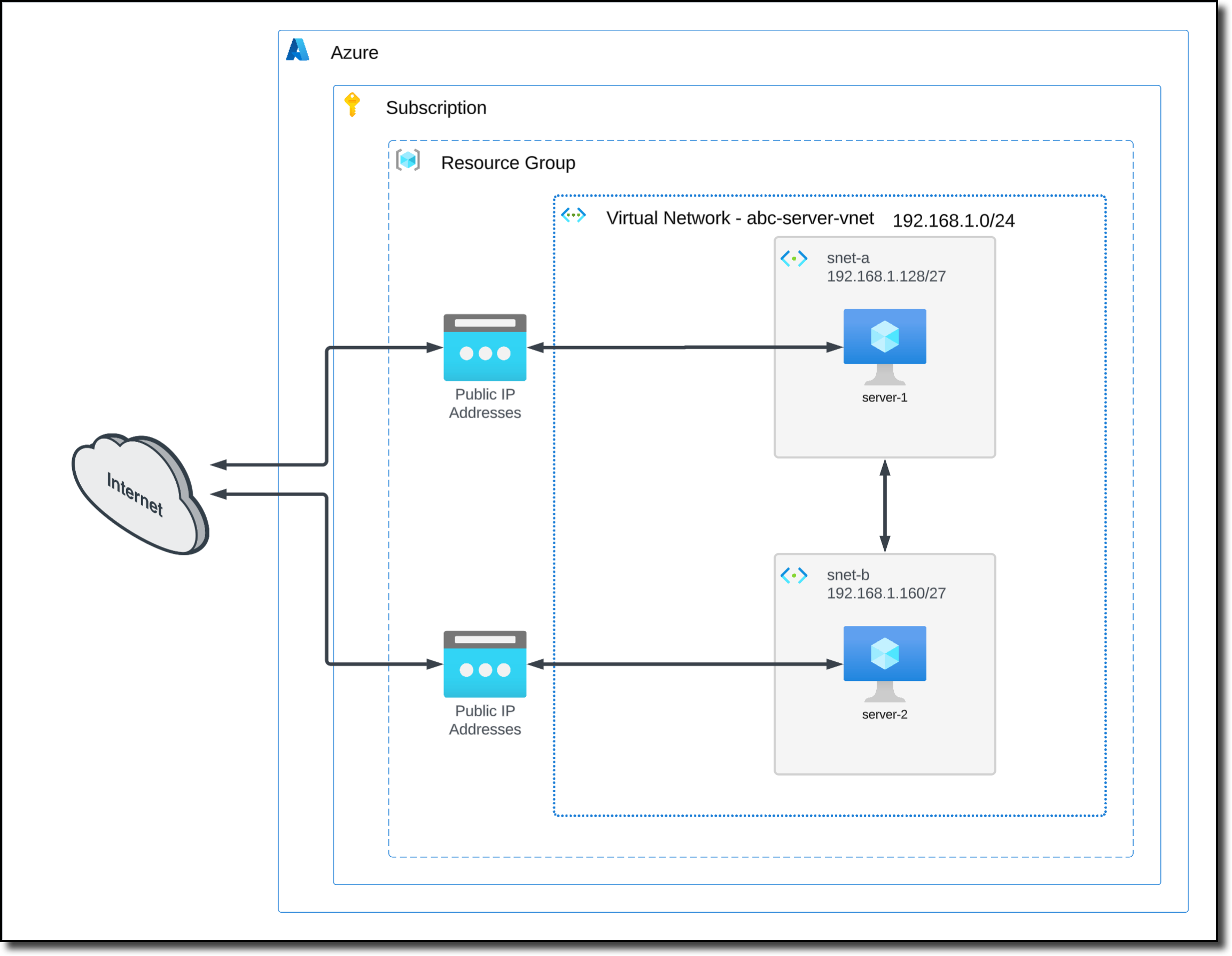

The following diagram is a representation of your current VNET and VM deployment.

azure-unsecured-vnet
