Chapter 6: Two vWAN Hubs

In chapter six, the student will deploy a second vWAN hub and create a VNET. Next the student will peer the VNET to the new hub, deploy a Linux VM, and managed network connectivity between the two hubs.

Overview

  • Deploy a second vWAN hub in another Azure region
  • Create an Azure VNET
  • Deploy a Linux VM
  • Peer the new VNET to the second vWAN hub and verify route tables
  • Manage network traffic between the two hubs

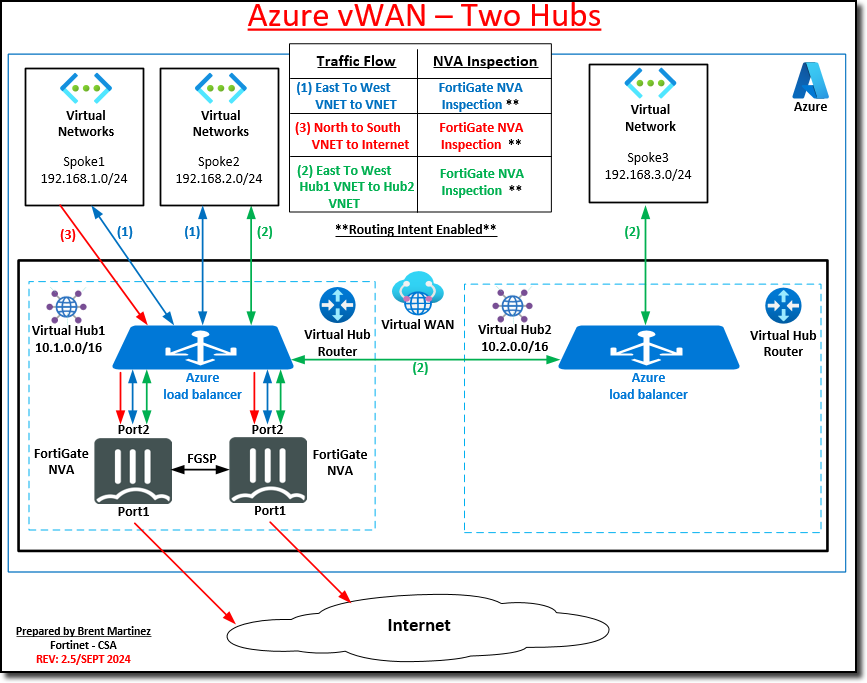

After you have completed the above tasks, the diagram below is a visual representation of what you will have deployed and configured.

1_1-az-vwan-second-hub-ra 1_1-az-vwan-second-hub-ra

Continue to Chapter 6 - Task 1: Deploy a second VWAN Hub
