Task 4: VNET Peering to the Second Hub

In this task, the student will setup peering between the Spoke3-vHub2_VNET and the vwanxx-westus-vHub2_VHUB. Then you will view route tables on the FortiGate NVAs, hubs, and the Linux-Spoke3-VM.

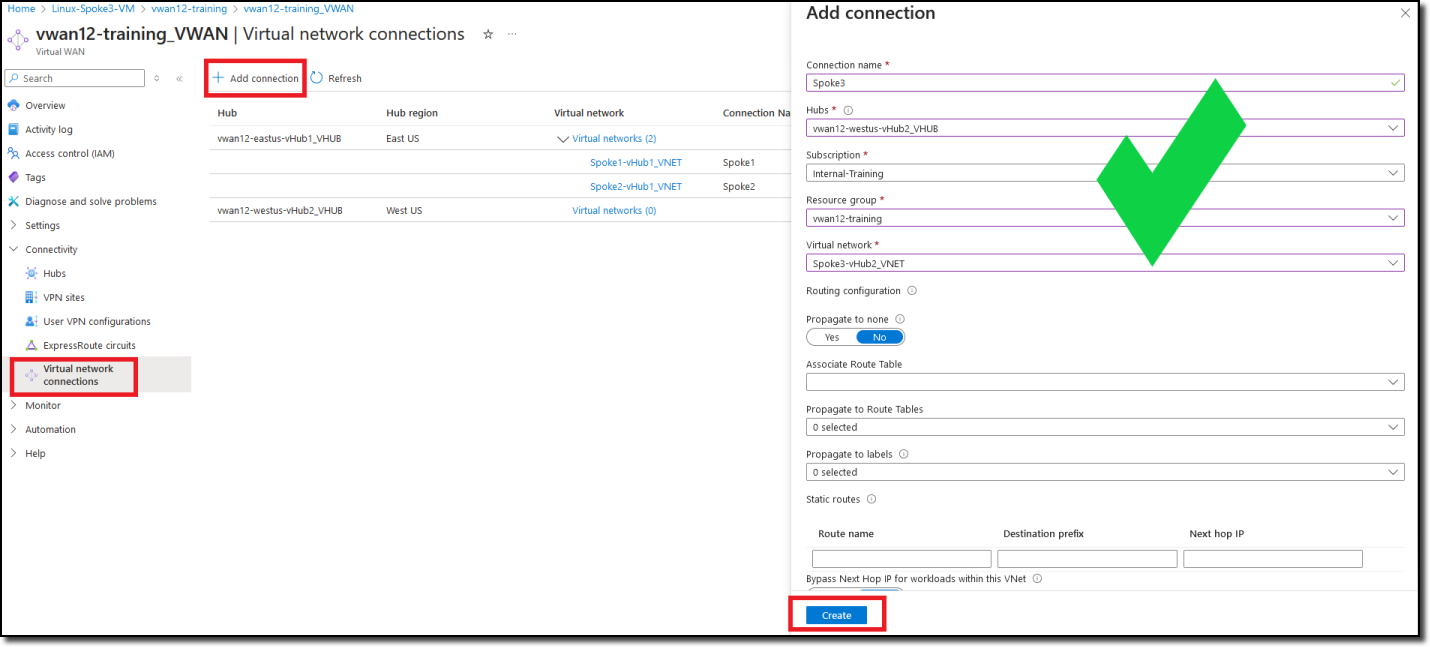

1. Peer Spoke3-vHub2_VNET to vwan12-westus-vHub2_VHUB

   • Navigate to your Virtual Wan - vwanXX-training_VWAN

   • Click “Virtual network connections” on the left under “Connectivity”.

   • Click “+ Add connection”

   • Enter - “Connection name” - Spoke3

   • Select - “Hubs” - your second hub -vwanXX-westus-vHub2_VHUB

   • Select - “Resource group” - your resource group - vwanXX-training

   • Select - “Virtual Network” - Spoke3 VNET - Spoke3-vHub2_VNET

   • Click - “Create”



     Info

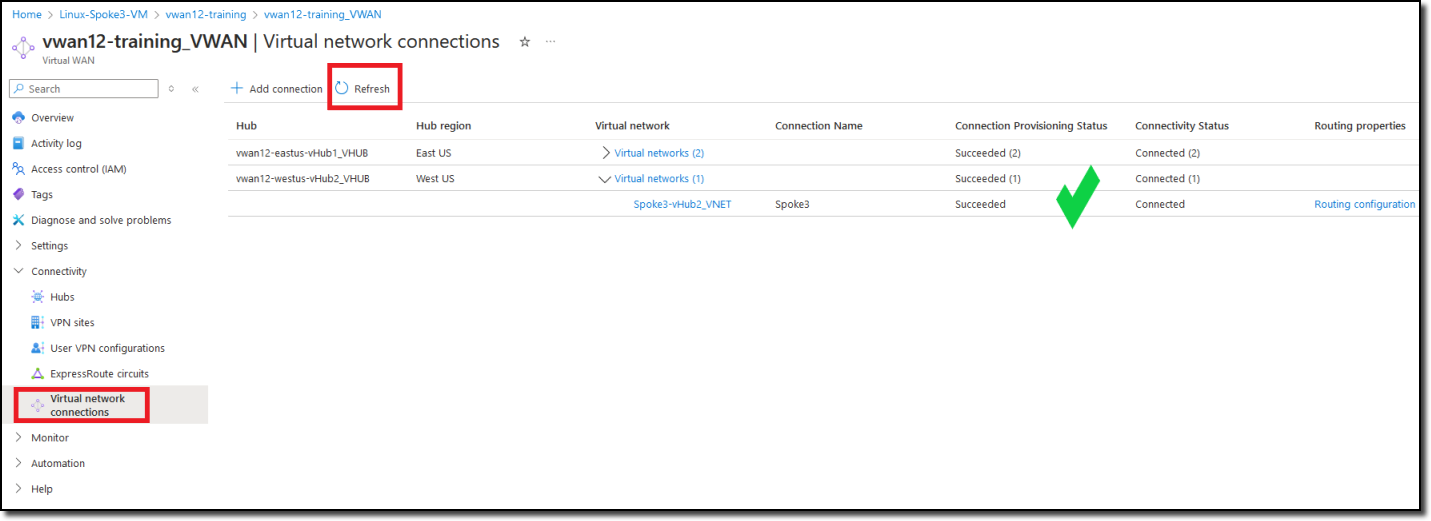

     VNET Peering takes a few minutes to complete. The Connectivity Status can be updated by Clicking Refresh



Verify Route Tables

Now that the Spoke3-vHub2_VNET has been peered to your second hub vwanXX-westus-vHub2_VHUB and both hubs are part of the Azure vWAN, lets take a closer look at the learned routes in each resource.

• What routes do the FortiGates know about?
• What are the effective routes of both hubs?
• What are the effective routes of the Linux-Spoke3-VM?

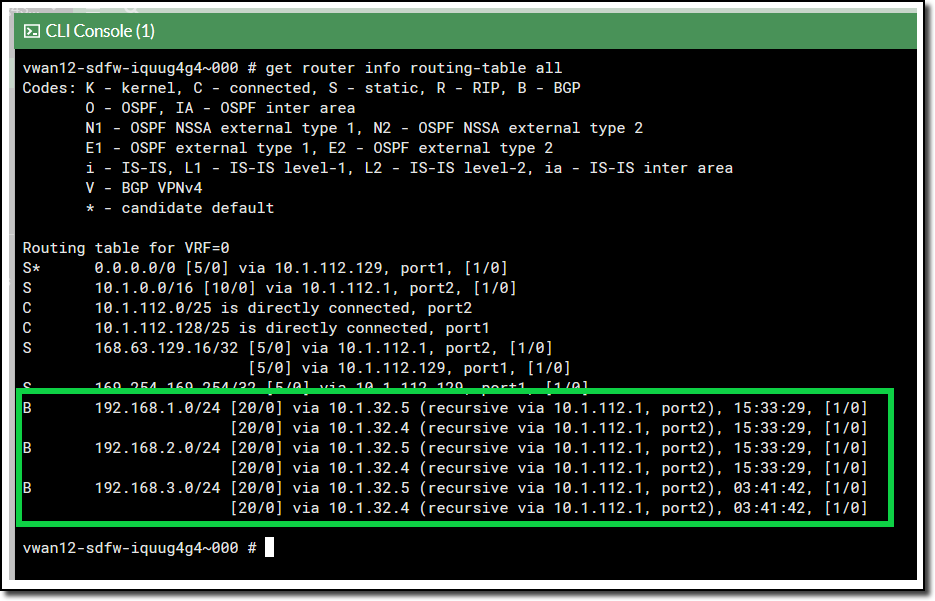

1. View each FortiGate’s route table

   • Open each FortiGate in a browser tab/window

   • Open FortiGate CLI

   • Run CLI command get router info routing-table all



   The output shows that BGP learned routes for the new Spoke3-vHub2_VNET peered to the new vwanXX-westus-vHub2_VHUB.

2. View the effective routes of the default route table, in both hubs.

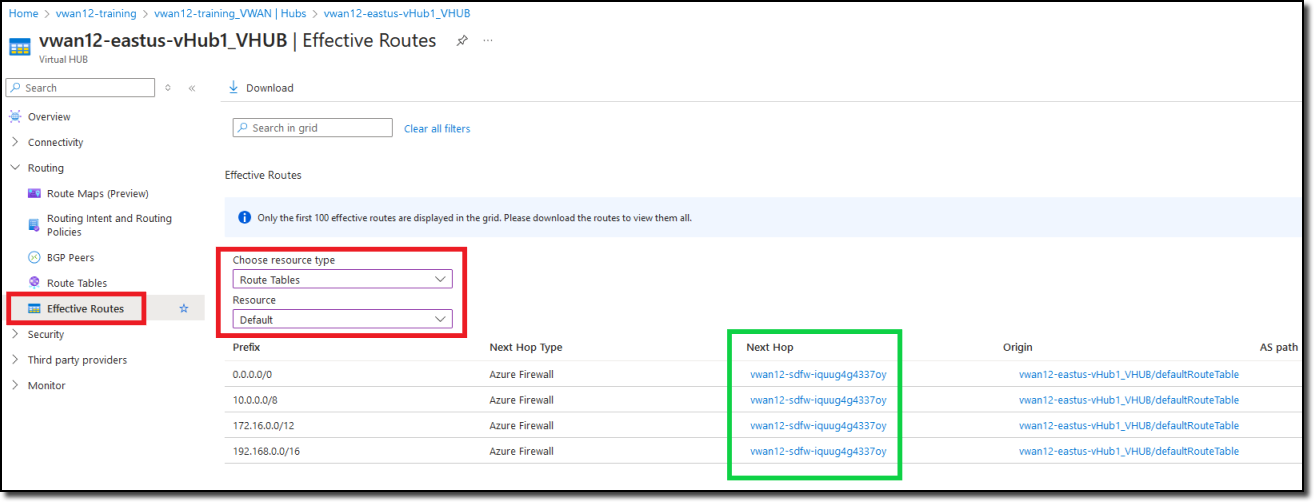

   vHub1

   • Navigate to your vWAN hub - vwanXX-eastus-vHub1_VHUB

   • On the left side, expand “Routing” and then “Effective Routes”

   • Select - “Route Tables” under “Choose resource type”

   • Select - “Default” under “Resource”

     All effective routes should have the FortiGate NVA group as next hop. Note that nothing has changed in your vwanXX-eastus-vHub1_VHUB route table.

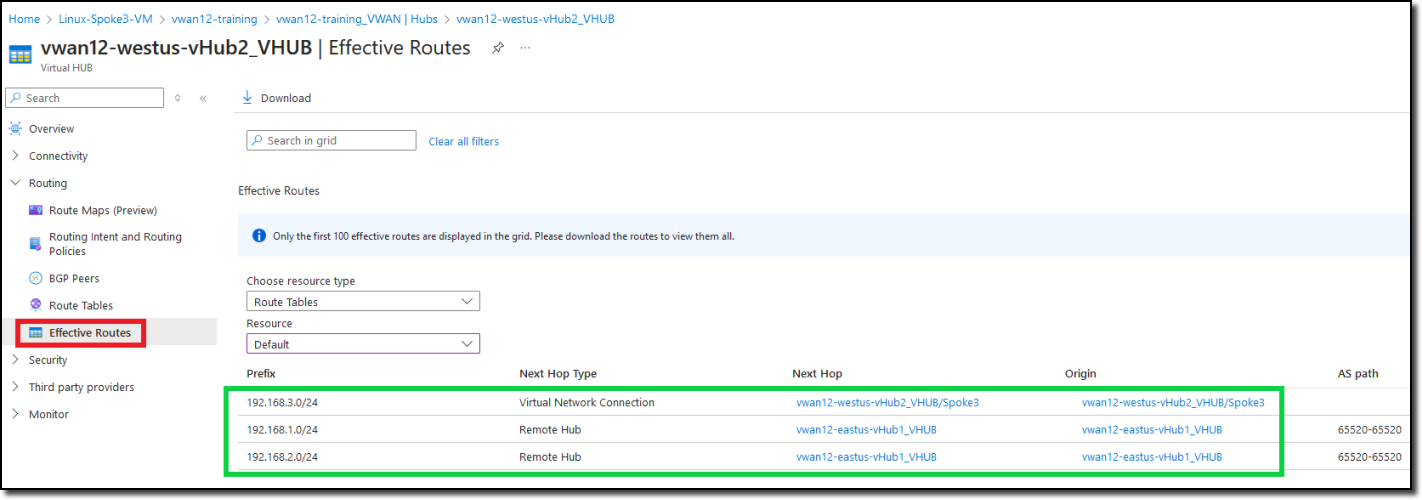

   vHub2

   • Navigate to your vWAN hub - vwanXX-westus-vHub2_VHUB

   • On the left side, expand “Routing” and then “Effective Routes”

   • Select - “Route Tables” under “Choose resource type”

   • Select - “Default” under “Resource”

     Note the three spoke VNETs learned by vHub2.



3. View the effective routes on the “Linux-Spoke3-VM”

   • Navigate to your Linux VM Linux-Spoke3-VM
   • Click - “Network settings” located under “Networking” on the left side of the page
   • Click - “Linux-Spoke3-VM_nic1 (primary) / ipconfig (primary)
   • One the next page, navigate to Help on the bottom left and Click - “Effective Routes”

   Effective routes for Linux-Spoke3-VM

   The effective route’s next hop IP is the IP address of internal load balancer that is deployed in vHub2.

The diagram below is a visual representation of what you have deployed and configured. Congrats!

Continue to Chapter 6 - Task 5: Manage Network Traffic Between Hubs
