Task 5: Manage Network Traffic Between Hubs

In this task create FortiGate firewall policies to allow or deny selective east-west network traffic between spokes in different vWAN hubs.

Create the following addresses and firewall policies on both FortiGates.

1. Create firewall addresses for Spoke1-vHub1_VNET, Spoke2-vHub1_VNET, and Spoke3-vHub2_VNET.

   • Login to both FortiGate NVAs

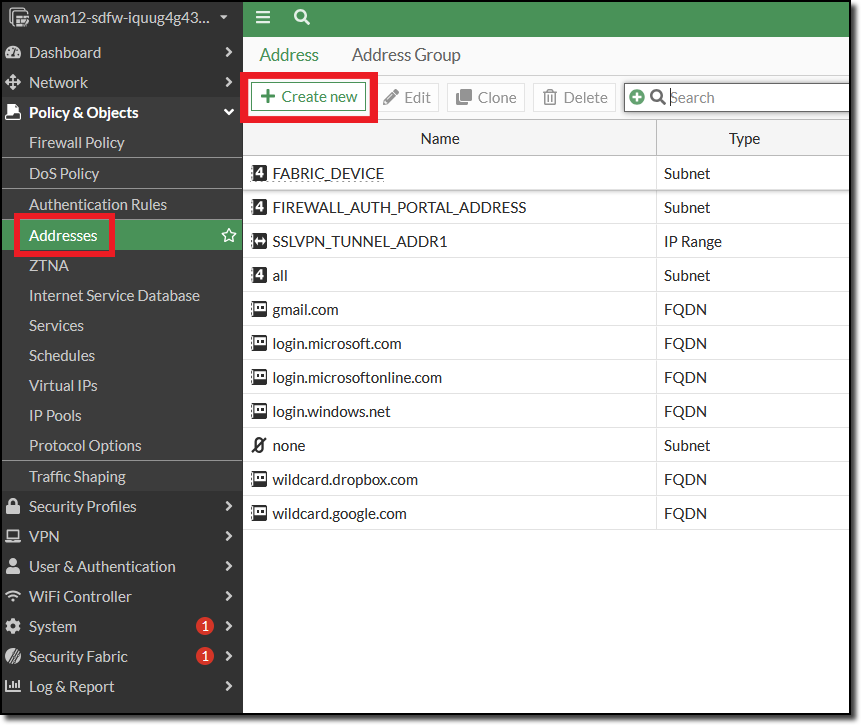

   • Navigate to “Policy & Objects”
   • Select “Addresses”
   • Click “+ Create new”

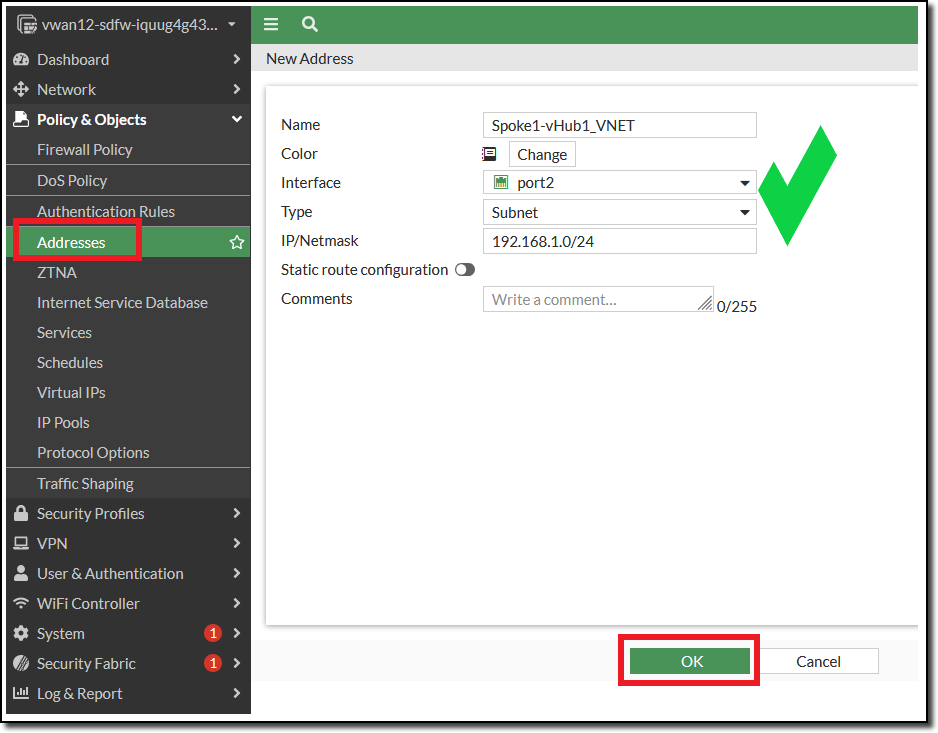

   • Name Spoke1-vHub1_VNET
   • Interface: port2
   • IP/Netmask: 192.168.1.0/24
   • Click OK

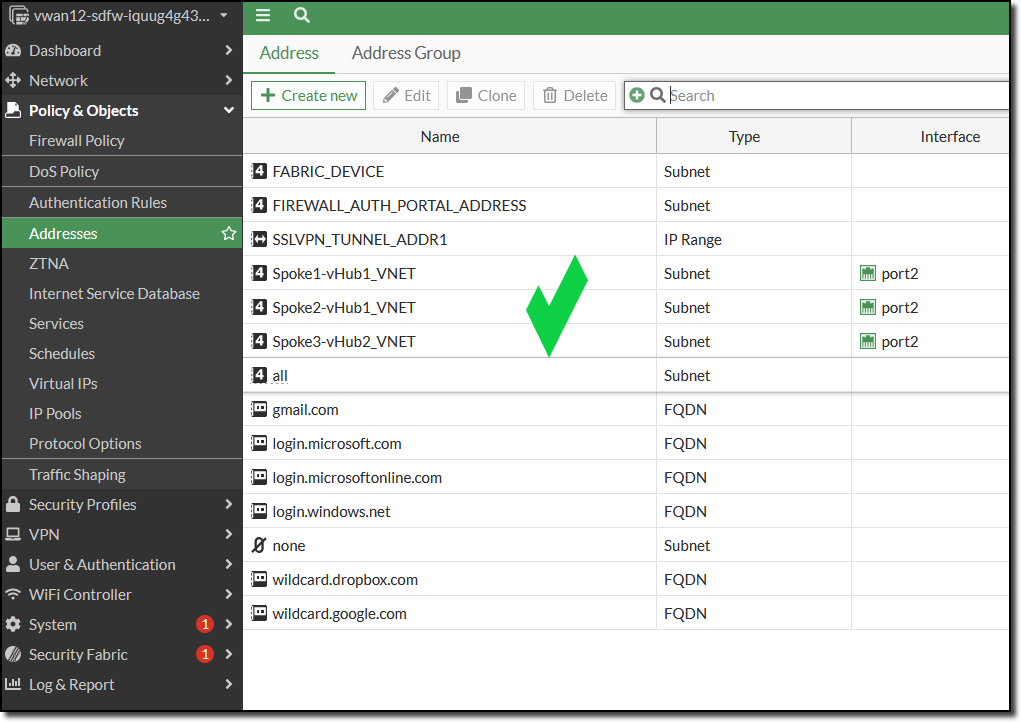

2. Follow the above steps to create these addresses on port2

   • Spoke2-vHub1_VNET - 192.168.2.0/24

   • Spoke3-vHub2_VNET - 192.168.3.0/24

   • FortiGate CLI for the Addresses

     config firewall address
         edit "Spoke1-vHub1_VNET"
             set associated-interface "port2"
             set subnet 192.168.1.0 255.255.255.0
         next
         edit "Spoke2-vHub1_VNET"
             set associated-interface "port2"
             set subnet 192.168.2.0 255.255.255.0
         next
         edit "Spoke3-vHub2_VNET"
             set associated-interface "port2"
             set subnet 192.168.3.0 255.255.255.0
         next
     end



3. Create firewall policy to allow traffic to pass from Spoke1 to Spoke3 on both FortiGates.

   Warning

   Delete the existing port2_to_port2 policy first!

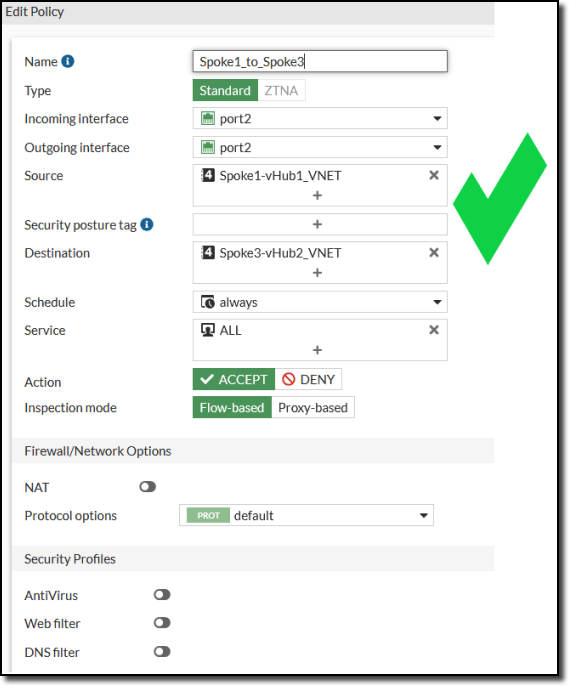

   • Click Firewall Policy

   • Click “+ Create new”

     Attribute	Value
     Name	Spoke1_to_Spoke3
     Incoming interface	port2
     Outgoing interface	port2
     Source	Spoke1-vHub1_VNET
     Destination	Spoke3-vHub2_VNET
     Schedule	always
     Service	ALL
     NAT	disabled
     Enable this policy	enabled

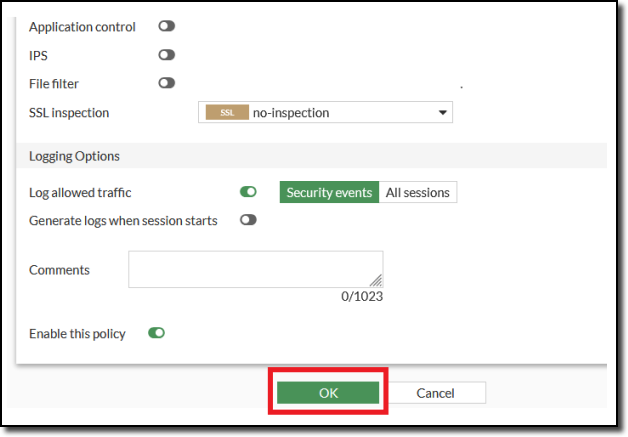

   • Click “OK”



4. Follow the above steps to create these firewall policies on both FortiGates.

   • Deny traffic from Spoke2 to Spoke3

   • Allow traffic from Spoke3 to both Spoke1 and Spoke2

   • FortiGate CLI

     config firewall policy
         edit 0
             set name "Spoke1_to_Spoke3"
             set srcintf "port2"
             set dstintf "port2"
             set action accept
             set srcaddr "Spoke1-vHub1_VNET"
             set dstaddr "Spoke3-vHub2_VNET"
             set schedule "always"
             set service "ALL"
         next
         edit 0
             set name "deny_Spoke2_to_Spoke3"
             set srcintf "port2"
             set dstintf "port2"
             set action deny
             set srcaddr "Spoke2-vHub1_VNET"
             set dstaddr "Spoke3-vHub2_VNET"
             set schedule "always"
             set service "ALL"
             set logtraffic disable
         next
         edit 0
             set name "Spoke3_to_Spoke1_and_Spoke2"
             set srcintf "port2"
             set dstintf "port2"
             set action accept
             set srcaddr "Spoke3-vHub2_VNET"
             set dstaddr "Spoke1-vHub1_VNET" "Spoke2-vHub1_VNET"
             set schedule "always"
             set service "ALL"
         next
     end

5. Test connectivity between Linux spoke VMs.

   • Open serial console connections on each Linux VM and ping the other spoke VMs
     • Linux-Spoke1-VM -> Linux-Spoke3-VM - ping 192.168.3.4
     • Linux-Spoke2-VM -> Linux-Spoke3-VM - ping 192.168.3.4
     • Linux-Spoke3-VM -> Linux-Spoke1-VM - ping 192.168.1.4
     • Linux-Spoke3-VM -> Linux-Spoke2-VM - ping 192.168.2.4

Did you get the results you expected? If you did, great job!. You are done with the course.

If you did not, here are some helpful troubleshooting hints:

• Did you enter the addresses and firewall policies on both FortiGates?
• Double check your firewall policies. Make sure NAT is disabled.
• Make sure the address names have the correct IP addresses/subnet.
• Check your route table on the FortiGates. Do you still see all three VNETs listed?

If you checked all the above and you are still not getting the expected results, reach out to an instructor.

Thanks for attending!
