Task 3: Schema Protection

GoalEnable and Test API Schema Protection
TaskEnable OpenAPI validation in FortiWeb Cloud and then use postman to submit a modified request
Verify task completionIf successful, modified schema request should be blocked by FortiWeb

Open API Validation/Schema protection

In this task, we will explore the open API/Swagger based schema protection with FortiWeb Cloud. Swagger, now known as the OpenAPI Specification (OAS), is a framework for API development that allows developers to design, build, document, and consume RESTful web services.

example of Swagger: https://petstore.swagger.io/

FortiWeb can validate incoming requests against your OpenAPI schema to ensure they conform to the defined structure and data types. This helps prevent injection attacks and other malicious activities.

  1. Download the juiceshop schema file to your local machine by clicking on URL below.

    https://juiceshopswagger.blob.core.windows.net/juiceshopswagger/swagger.yaml?sp=r&st=2024-08-06T16:05:20Z&se=2024-11-09T01:05:20Z&spr=https&sv=2022-11-02&sr=b&sig=F8TWuKSH430782%2FgJBWLhCQuEDK2101CChRkXx4XdU0%3D

  2. From the FortiWeb Cloud Console left pane, select ADD MODULES. Scroll down and turn on under API Protection to add OPEN API VALIDATION

    apischema1 apischema1

  3. In the API protection module, click on Open API validation > Create OpenAPI Validation Rule.

    apischema2 apischema2

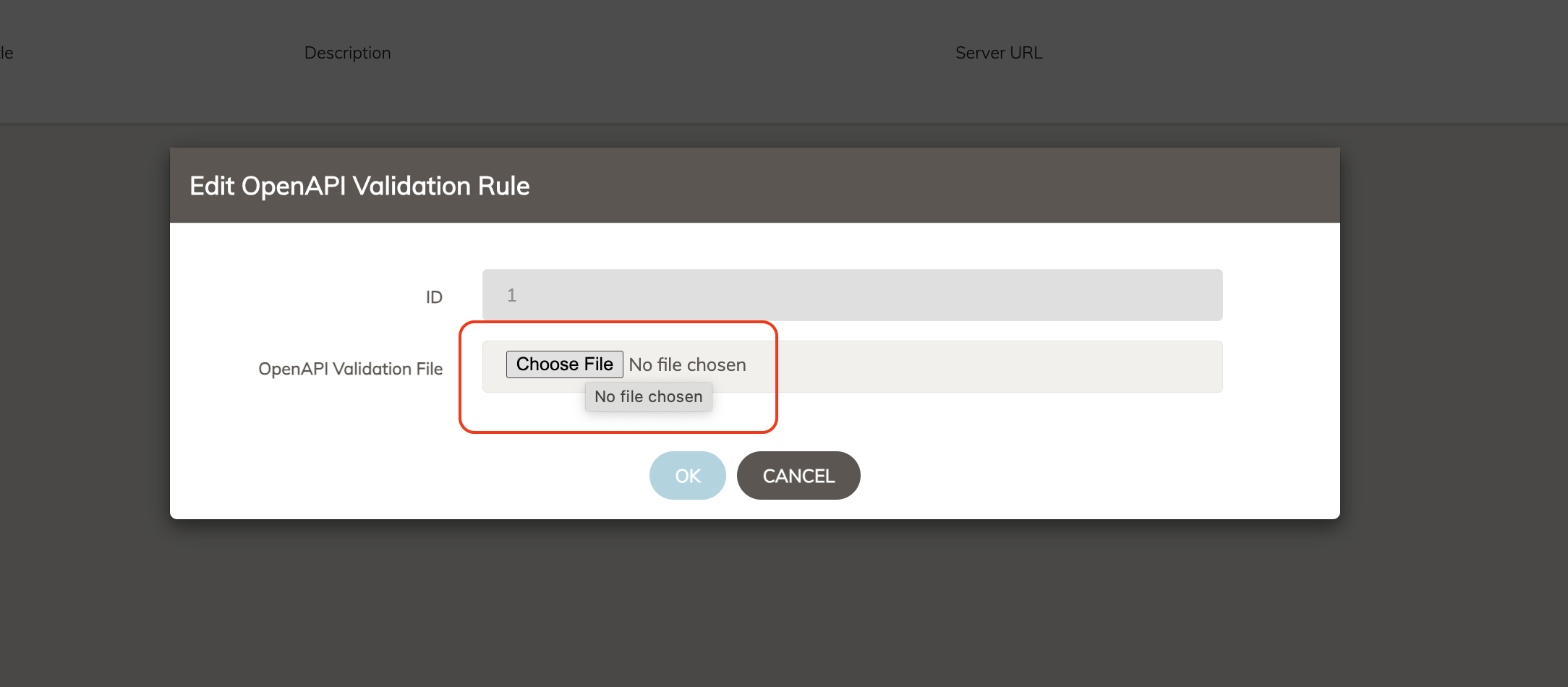

  4. Click on “choose file” to upload the file downloaded in Step 1, Click OK.

    Warning

    On some systems (macOS), the file may download with a .yml extension, giving you an error upon attempting to upload. In this case, simply rename the file with .yaml extension before uploading to FortiWeb OpenAPI Validation rule

    apischema3 apischema3

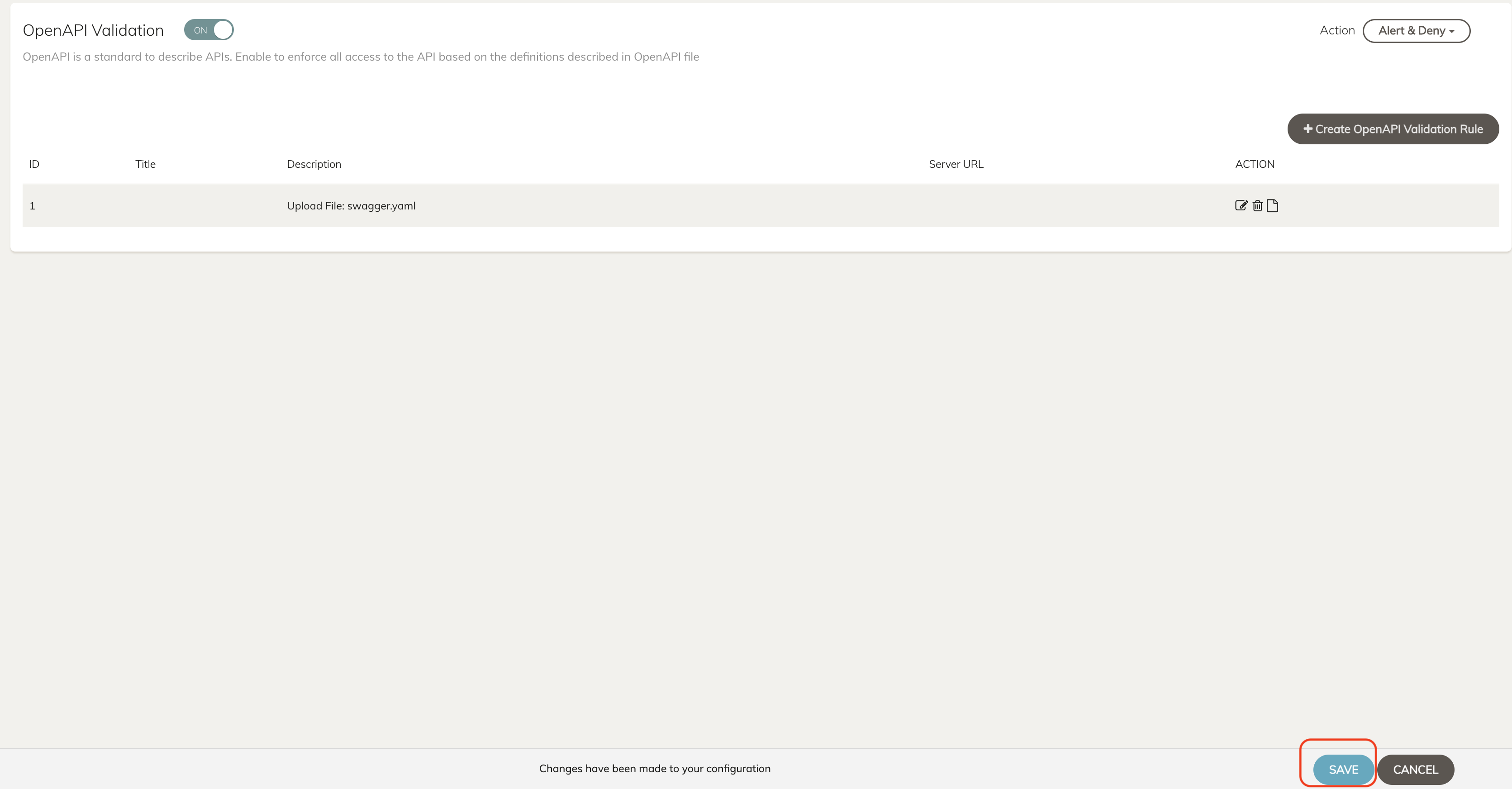

  5. Don’t forget to Save at the bottom.

    apischema4 apischema4

    Warning

    If for some reason you are logged out when you click save here, you will need to log back in using this link https://customersso1.fortinet.com/saml-idp/proxy/demo_sallam_okta/login and the credentials received in the original email. You will need to repeat steps 1 through 5.

  6. Back on Kali Desktop in Postman

    • We will send a POST request to the URL we have documented in Schema.

    • Create a new request with the + button in the top bar.

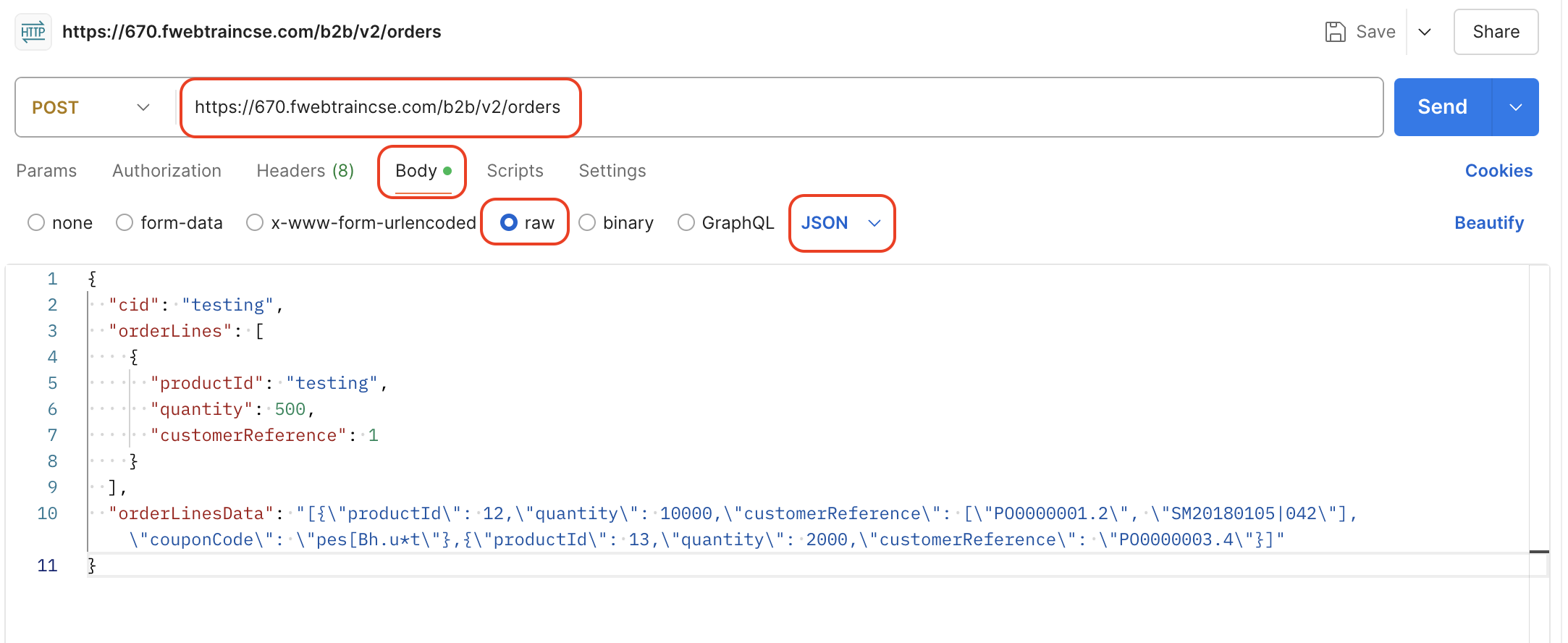

    • Change “GET” to “POST”, for URL use: https://<FortiWebStudentID>.fwebtraincse.com/b2b/v2/orders

      • Be sure to replace your Student ID in the URL!

    • To enter Request body, Click on Body > Raw > JSON and paste the following:

      {
  "cid": "testing",
  "orderLines": [
    {
      "productId": "testing",
      "quantity": 500,
      "customerReference": 1
    }
  ],
  "orderLinesData": "[{\"productId\": 12,\"quantity\": 10000,\"customerReference\": [\"PO0000001.2\", \"SM20180105|042\"],\"couponCode\": \"pes[Bh.u*t\"},{\"productId\": 13,\"quantity\": 2000,\"customerReference\": \"PO0000003.4\"}]"
}

      apischema6 apischema6

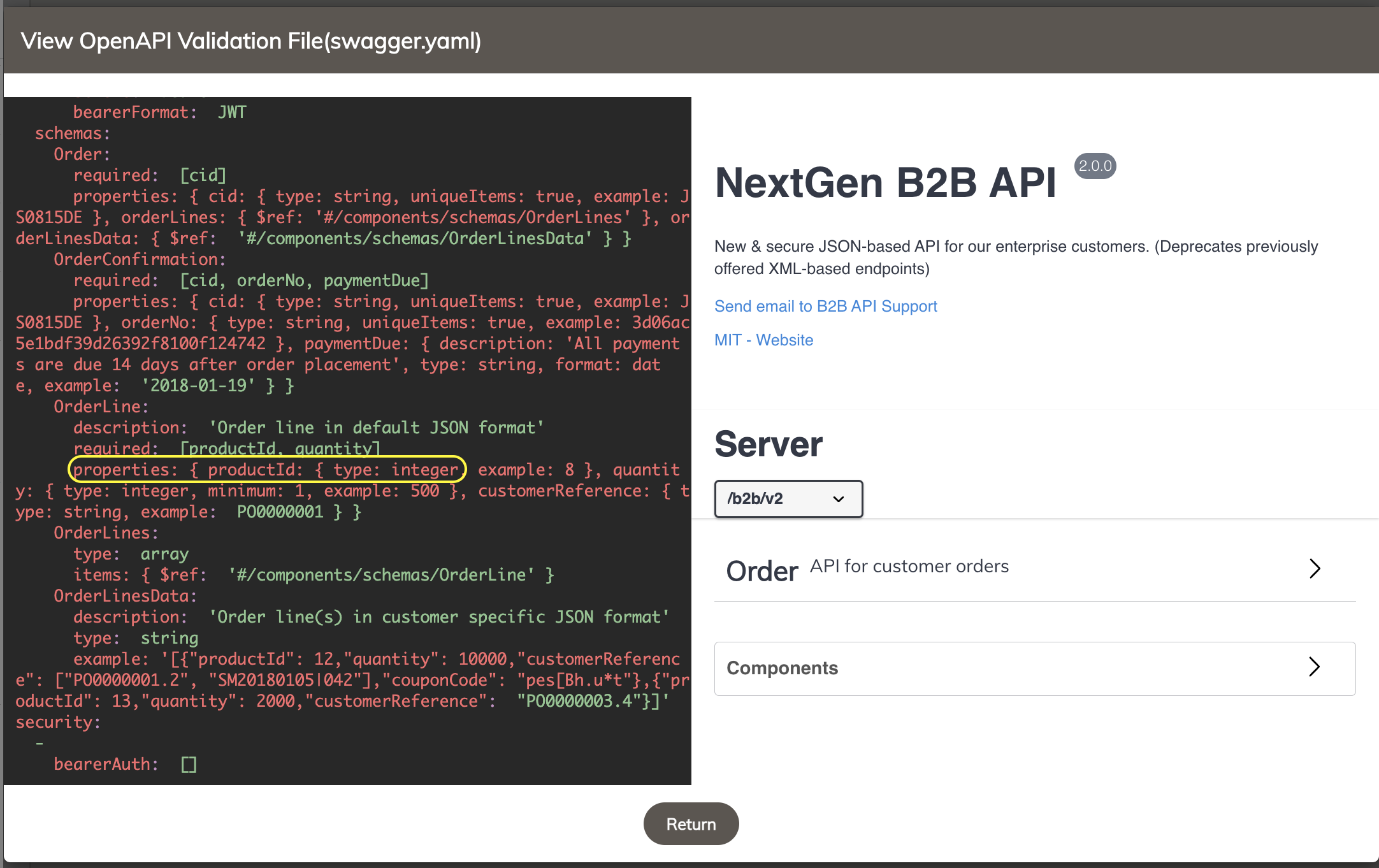

    • Note: The schema for Product ID is changed from Integer to String. the FortiWeb cloud Juiceshop schema we uploaded have this value defined as Integer.

    apischema10 apischema10

    • Click on “SEND”

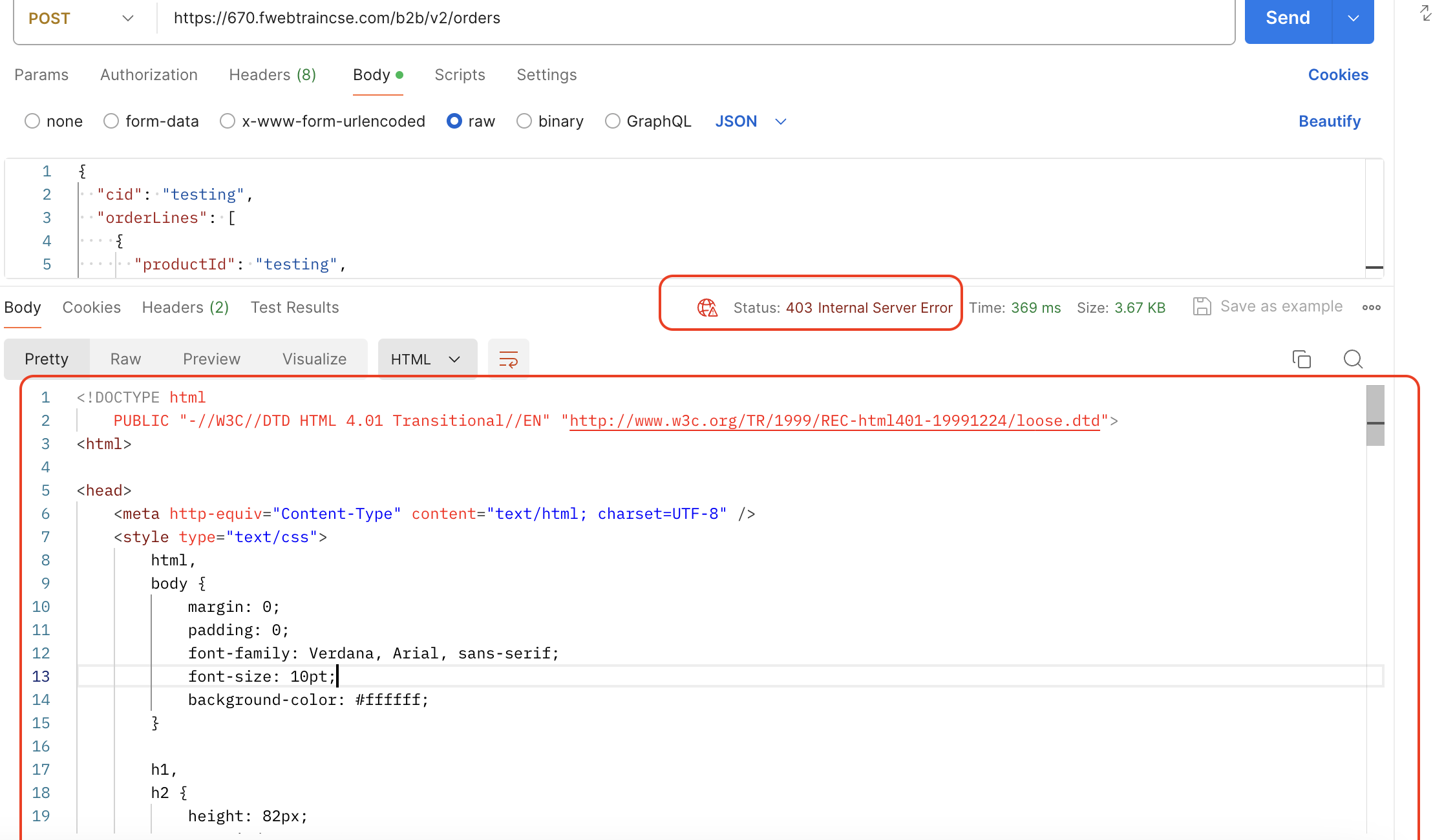

  7. We will see “403 internal server error” with a FortiWeb cloud block message in HTML.

    apischema7 apischema7

  8. In FortiWeb Cloud on the left hand side of the screen go to Threat Analytics > Attack log > we can see a log generated for this block request to show the reason for block is Open API schema Violation.

    apischema8 apischema8
